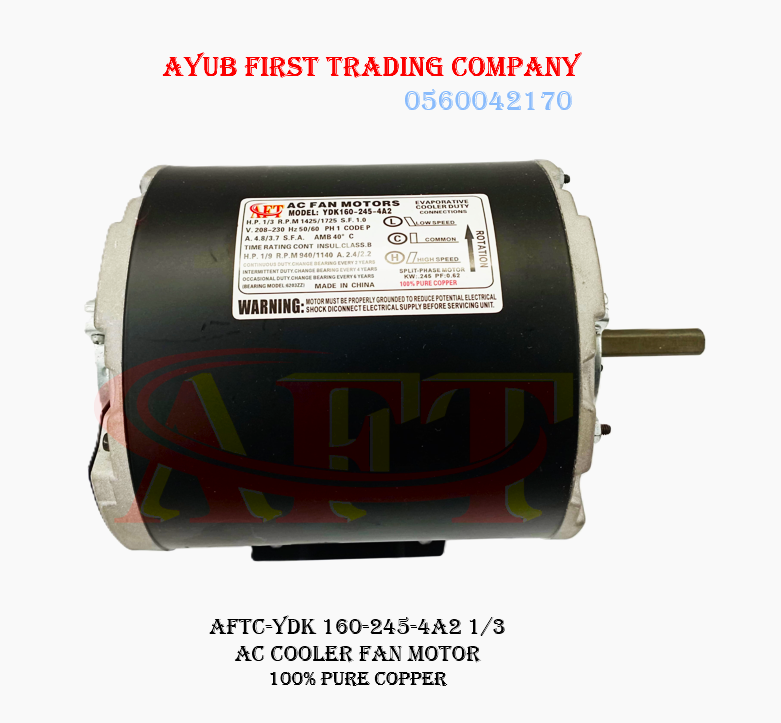

1/3 HP 1425 / 1725 RPM 100% Pure Copper Evaporative Cooler Duty AC Fan Motor : AFTC-YDK 160-245-4A2

This model returns to a medium capacity tier, offering a standard 1/3 HP Evaporative Cooler Duty AC Fan Motor optimized with 100% Pure Copper windings.

📋 Technical Specifications

Model Number: AFTC-YDK 160-245-4A2 (Faceplate: YDK160-245-4A2)
Motor Architecture: Split-Phase Motor containing 100% Pure Copper windings.
Power Output: 0.245 kW (KW: .245) with a Power Factor of PF: 0.62.
Electrical Parameters: 208V – 230V AC, 50/60 Hz, Single Phase (1 PH), Code F.
Operating Attributes: Class B Insulation (INSUL. CLASS B), continuous time rating (CONT.), and a maximum ambient temperature ceiling of 40°C (AMB 40°C).
Internal Hardware: Uses 6202ZZ model sealed ball bearings.
Origin: Made in China.

⚡ Two-Speed Performance Breakdown

The current draw and output metrics shift depending on the active terminal circuit:

High Speed Terminal Settings:
- Horsepower Performance: 1/3 HP (Medium torque capacity variant).
- Rotational Threshold: 1425 / 1725 RPM
- Current Demands: 4.0 / 3.7 Amps (With matching Service Factor Amperage limits at an S.F. 1.0 rating).
Low Speed Terminal Settings:
- Horsepower Performance: 1/9 HP
- Rotational Threshold: 940 / 1140 RPM
- Current Demands: 2.4 / 2.2 Amps.

🔧 Wiring & Bearing Maintenance Schedules

Wiring Scheme (Right Side Schematic):
- C (Common Line): Center neutral or line return power connection.
- L (Low Speed Line): Low velocity selector terminal pathway.
- H (High Speed Line): High velocity terminal (conforms to fixed direction ROTATION arrow).
📞 Contact & Procurement Details
To secure pricing, check stock availability, or coordinate bulk fulfillment across Saudi Arabia, contact the Ayub First Trading Company distribution offices directly:
- Primary Hotline (Call/WhatsApp): +966 56 004 2170
- Email Inquiries: ayubfirsttrading@gmail.com
- Corporate Web Platform: ayubfirsttrading.com
- Regional Warehouses: Showrooms fully stocked in Riyadh (Al Jabrah, Batha Road), Jeddah, Dammam, and Al Khobar (20th Street, Hail Road).
