1/4 HP. 1125 RPM / 3SPD (3 Speeds). Zamil Window Air Conditioner Fan Motor : AFTC-738S

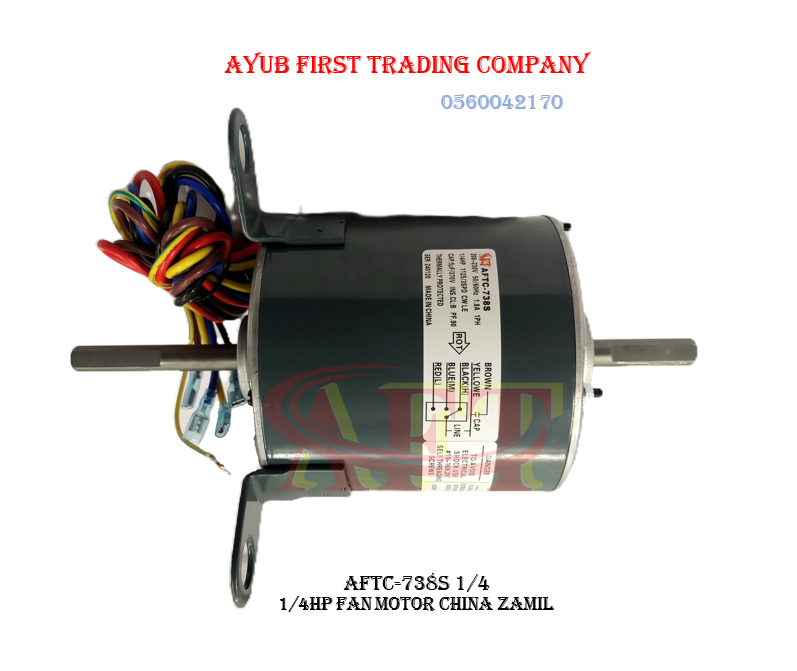

This is a Double-Shaft Window Air Conditioner Fan Motor manufactured as a replacement unit for Zamil and similar window AC systems. Below are the comprehensive technical specifications and wiring details extracted directly from the product label:
Core Identification & Codes
- Product Part Number: AFTC-738S 1/4 (The label sticker explicitly lists the base model as AFTC-738S)
- Application Description: 1/4HP Fan Motor China Zamil
- Motor Design: Dual-shaft setup (simultaneously driving the internal blower wheel and the external condenser fan blade)
- Mounting Style: Integrated mounting legs/brackets attached to the motor shell.
- Country of Origin: Made in China
Electrical Specifications
- Horsepower: 1/4 HP
- Operating Voltage: 208V–230V AC
- Frequency: 50/60Hz
- Current Draw: 1.1 Amps
- Phase Configuration: 1PH (Single-Phase Induction Motor)
- Rotational Speed: 1125 RPM / 3SPD (3 Speeds)
- Rotation Direction: CW LE (Clockwise facing the Lead End)
- Insulation Rating: INS CL B
- Power Factor: PF .90
- Safety Feature: Thermally Protected (T.P. system with automatic reset)
Capacitor Requirements
- Must be paired with a 5.0 μF / 370V AC run capacitor to ensure optimal torque and prevent winding damage.
Wiring Configuration & Speed Control
The schematic diagram printed on the motor body dictates the following line connections:
- Brown: Capacitor Lead (CAP)
- Yellow: Capacitor Lead (CAP)
- Black: High Speed Line (HI)
- Blue: Medium Speed Line (M)
- Red: Low Speed Line (L)
- Green/Yellow (with ring terminal): Ground connection
