1/4HP. 220V. RELAY AND OVERLOAD REF. : AFTC-RY- 012

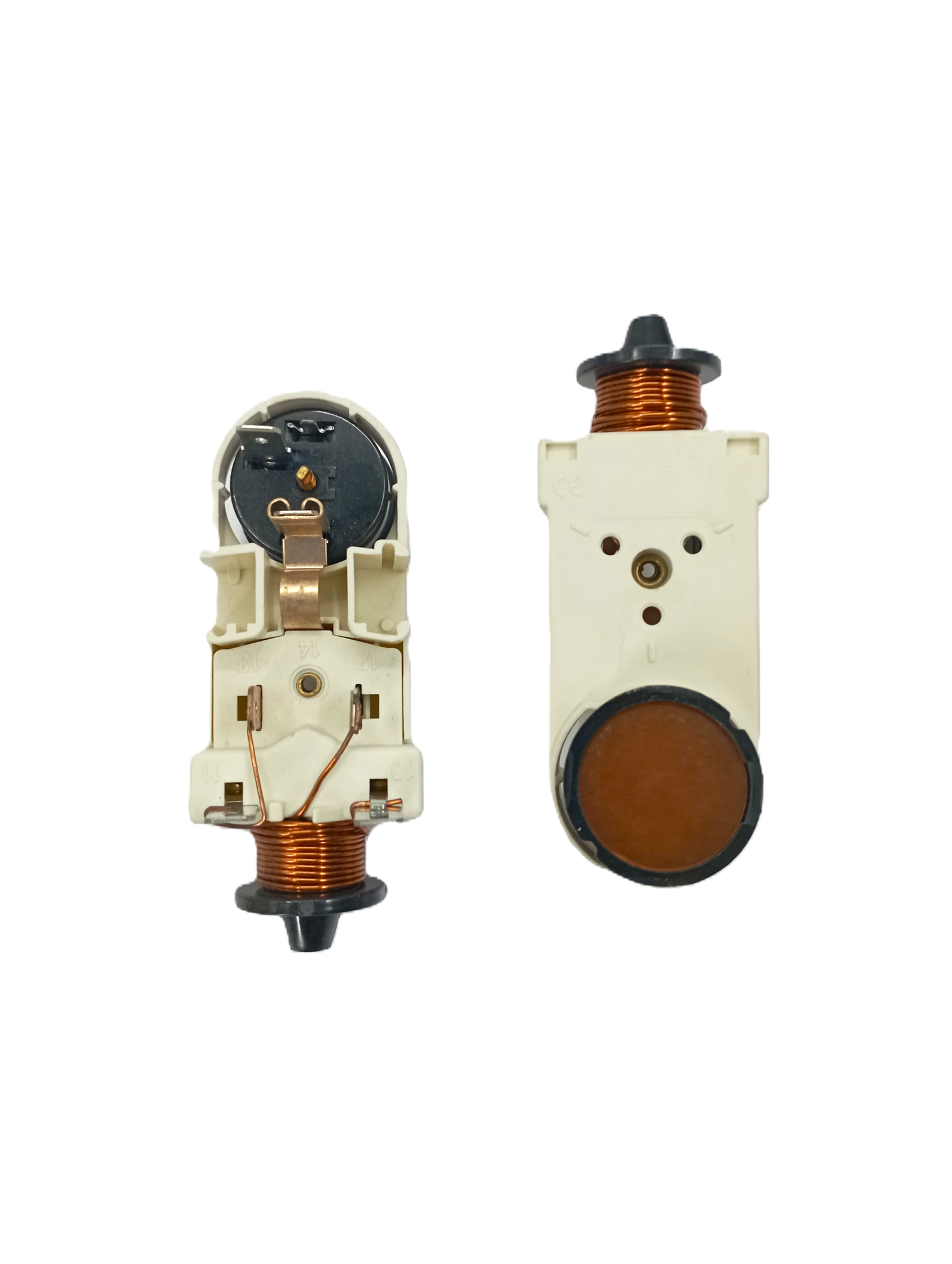

- The image displays an Relay, a critical electrical component used to start the compressor in household refrigerators and freezers.
Technical Specifications…..
Model Number: AFTC-RY-012
-
- Product Type: Integrated Compressor Start Relay & Overload Protector
- Design Style: Current Type / “Heavy Hammer” (Coil Style)
Technical Specifications- Horsepower (HP): Specifically rated for 1/4 HP compressors.
- Voltage: 220V – 240V AC.
- Frequency: 50/60Hz.
- Color: Off-white body with a copper coil and brown overload disc.
- Coil Material: Pure copper winding for precise electromagnetic startup control.
Key Functions- Startup Assist: The electromagnetic coil provides the high-torque electrical “kick” needed to start the refrigerator compressor.
- Thermal Protection: The brown circular disc (Overload Protector) automatically cuts power to the compressor if it becomes too hot or draws excessive current, preventing motor burnout.
- All-in-One Design: Combines two critical safety and starting components into a single plug-and-play unit.
Description
Description
- The image displays an Relay, a critical electrical component used to start the compressor in household refrigerators and freezers.
Technical Specifications…..
Model Number: AFTC-RY-012
-
- Product Type: Integrated Compressor Start Relay & Overload Protector
- Design Style: Current Type / “Heavy Hammer” (Coil Style)
Technical Specifications- Horsepower (HP): Specifically rated for 1/4 HP compressors.
- Voltage: 220V – 240V AC.
- Frequency: 50/60Hz.
- Color: Off-white body with a copper coil and brown overload disc.
- Coil Material: Pure copper winding for precise electromagnetic startup control.
Key Functions- Startup Assist: The electromagnetic coil provides the high-torque electrical “kick” needed to start the refrigerator compressor.
- Thermal Protection: The brown circular disc (Overload Protector) automatically cuts power to the compressor if it becomes too hot or draws excessive current, preventing motor burnout.
- All-in-One Design: Combines two critical safety and starting components into a single plug-and-play unit.
