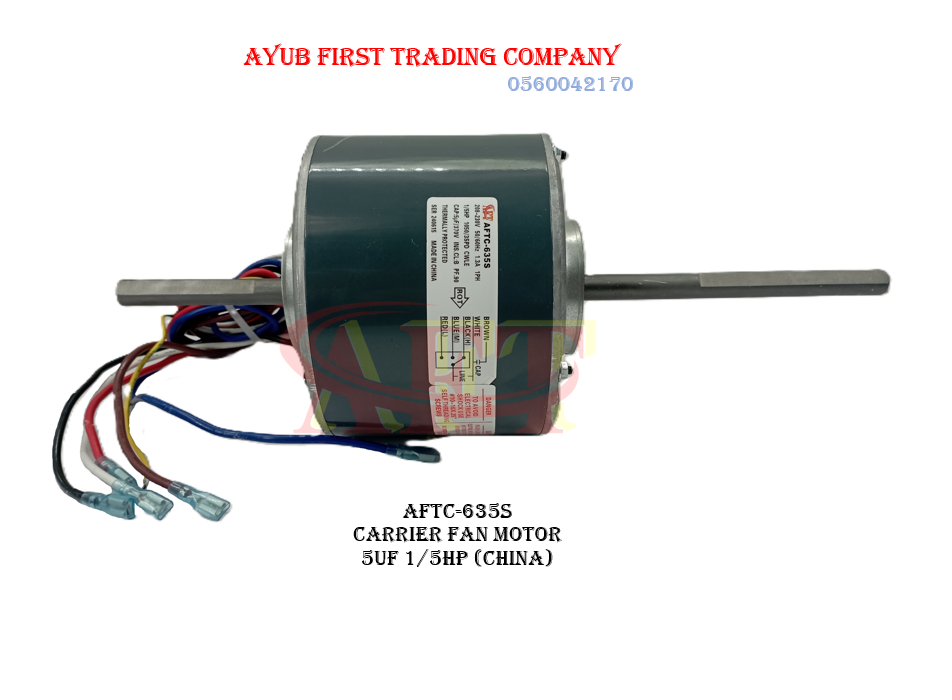

1/5 HP. 1050/1200 RPM. Carrier Double-Shaft Window Air Conditioner Fan Motor : AFTC-635S
Description
Description
This is a Double-Shaft Window Air Conditioner Fan Motor manufactured as a replacement unit for Carrier and similar window AC systems. Below are the comprehensive technical specifications and wiring details extracted directly from the product label:
Core Identification & Codes
- Product Part Number: AFTC-635S
- Application Description: Carrier Fan Motor 5UF 1/5HP (China)
- Motor Design: Dual-shaft setup (simultaneously driving the internal blower wheel and the external condenser fan blade)
- Country of Origin: Made in China
Electrical Specifications
- Horsepower: 1/5 HP
- Operating Voltage: 208V–230V AC
- Frequency: 50/60Hz
- Current Draw: 1.3 Amps
- Phase Configuration: 1PH (Single-Phase Induction Motor)
- Rotational Speed: 1050/1200 RPM
- Insulation Rating: INS CL B
- Safety Feature: Thermally Protected (T.P. system with automatic reset)
Capacitor Requirements
- Must be paired with a 5.0 μF / 370V AC run capacitor to ensure optimal torque and prevent overheating.
Wiring Configuration & Speed Control
The schematic diagram printed on the motor body dictates the following line connections:
- Brown: Capacitor Lead (CAP)
- White: Common / Line
- Black: High Speed Line (HI)
- Blue: Medium Speed Line (M)
- Red: Low Speed Line (L)
