1/5HP 7.5UF 975 / 875 / 775 RPM Carrier Window Motor : AFTC-11024

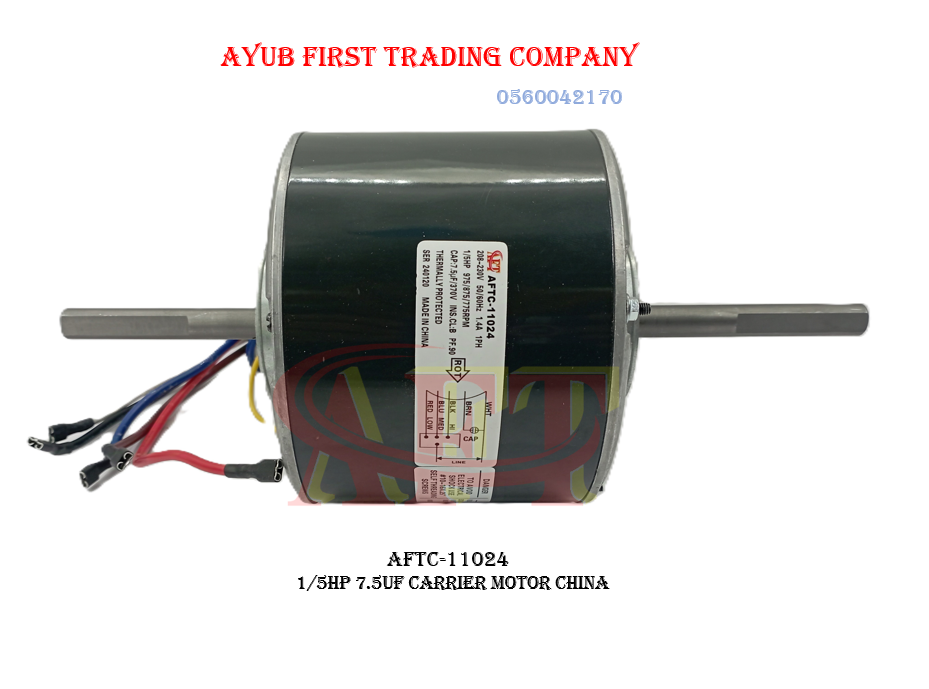

This is a Double-Shaft Window Air Conditioner Fan Motor manufactured as a replacement unit for Carrier and similar window AC systems. Below are the comprehensive technical specifications and wiring details extracted directly from the product label:
Core Identification & Codes
- Product Part Number: AFTC-11024
- Application Description: 1/5HP 7.5UF Carrier Motor China
- Motor Design: Dual-shaft setup (simultaneously driving the internal blower wheel and the external condenser fan blade)
- Country of Origin: Made in China
Electrical Specifications
- Horsepower: 1/5 HP
- Operating Voltage: 208V–230V AC
- Frequency: 50/60Hz
- Current Draw: 1.4 Amps
- Phase Configuration: 1PH (Single-Phase Induction Motor)
- Rotational Speed: 975 / 875 / 775 RPM (3 Speeds)
- Insulation Rating: INS CL B
- Power Factor: PF .90
- Safety Feature: Thermally Protected (T.P. system with automatic reset)
Capacitor Requirements
- Must be paired with a 7.5 μF / 370V AC run capacitor to ensure optimal torque and prevent overheating.
Wiring Configuration & Speed Control
The schematic diagram printed on the motor body dictates the following line connections:
- White (WHT): Common / Neutral Line
- Brown (BRN): Capacitor Lead (CAP)
- Black (BLK): High Speed Line (HI)
- Blue (BLU): Medium Speed Line (MED)
- Red (RED): Low Speed Line (LOW)
- Green/Yellow (with ring terminal): Ground connection
📞 Contact & Procurement Details
To secure pricing, check stock availability, or coordinate bulk fulfillment across Saudi Arabia, contact the Ayub First Trading Company distribution offices directly:
- Primary Hotline (Call/WhatsApp): +966 56 004 2170
- Email Inquiries: ayubfirsttrading@gmail.com
- Corporate Web Platform: ayubfirsttrading.com
- Regional Warehouses: Showrooms fully stocked in Riyadh (Al Jabrah, Batha Road), Jeddah, Dammam, and Al Khobar (20th Street, Hail Road).
Description
Description
This is a Double-Shaft Window Air Conditioner Fan Motor manufactured as a replacement unit for Carrier and similar window AC systems. Below are the comprehensive technical specifications and wiring details extracted directly from the product label:
Core Identification & Codes
- Product Part Number: AFTC-11024
- Application Description: 1/5HP 7.5UF Carrier Motor China
- Motor Design: Dual-shaft setup (simultaneously driving the internal blower wheel and the external condenser fan blade)
- Country of Origin: Made in China
Electrical Specifications
- Horsepower: 1/5 HP
- Operating Voltage: 208V–230V AC
- Frequency: 50/60Hz
- Current Draw: 1.4 Amps
- Phase Configuration: 1PH (Single-Phase Induction Motor)
- Rotational Speed: 975 / 875 / 775 RPM (3 Speeds)
- Insulation Rating: INS CL B
- Power Factor: PF .90
- Safety Feature: Thermally Protected (T.P. system with automatic reset)
Capacitor Requirements
- Must be paired with a 7.5 μF / 370V AC run capacitor to ensure optimal torque and prevent overheating.
Wiring Configuration & Speed Control
The schematic diagram printed on the motor body dictates the following line connections:
- White (WHT): Common / Neutral Line
- Brown (BRN): Capacitor Lead (CAP)
- Black (BLK): High Speed Line (HI)
- Blue (BLU): Medium Speed Line (MED)
- Red (RED): Low Speed Line (LOW)
- Green/Yellow (with ring terminal): Ground connection
📞 Contact & Procurement Details
To secure pricing, check stock availability, or coordinate bulk fulfillment across Saudi Arabia, contact the Ayub First Trading Company distribution offices directly:
- Primary Hotline (Call/WhatsApp): +966 56 004 2170
- Email Inquiries: ayubfirsttrading@gmail.com
- Corporate Web Platform: ayubfirsttrading.com
- Regional Warehouses: Showrooms fully stocked in Riyadh (Al Jabrah, Batha Road), Jeddah, Dammam, and Al Khobar (20th Street, Hail Road).
