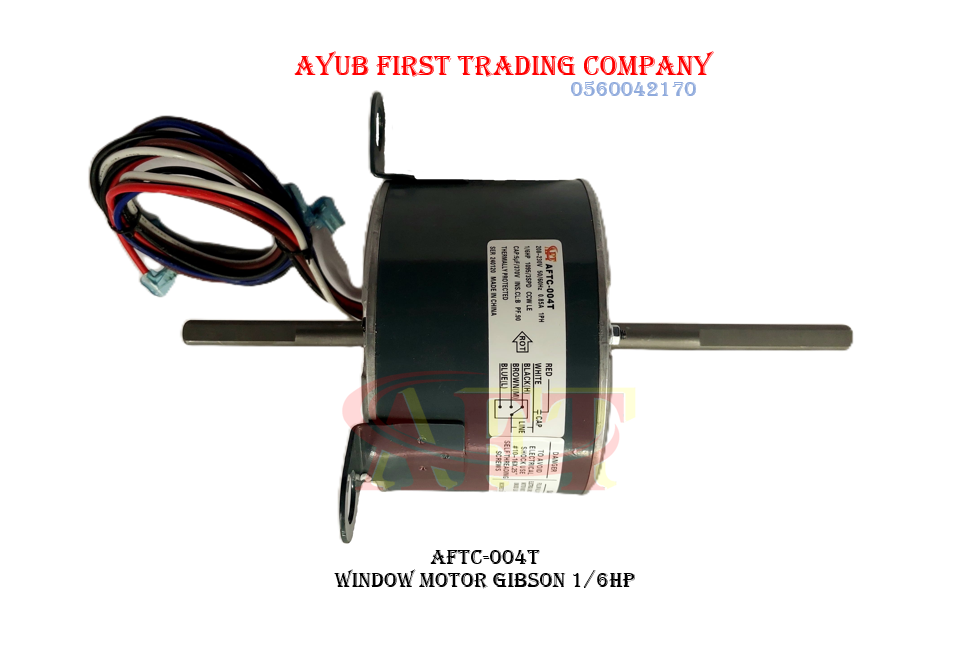

1/6 HP. 1050/1200 RPM. Gibson Ac Window Motor : AFTC-004T
This is a Double-Shaft Window Air Conditioner Fan Motor specifically manufactured as a replacement unit for Gibson and similar window AC systems. Below are the comprehensive technical specifications and wiring schematics extracted directly from the physical label:
Core Identification & Codes
- Product Part Number: AFTC-004T
- Application Description: Window Motor Gibson 1/6HP
- Motor Design: Dual-shaft design (powers both the indoor evaporator blower wheel and the outdoor condenser fan blade simultaneously)
- Country of Origin: Made in China
Electrical Specifications
- Horsepower: 1/6 HP
- Operating Voltage: 208V–230V AC
- Frequency: 50/60Hz
- Current Draw: 0.88 Amps
- Phase Configuration: 1PH (Single-Phase Induction Motor)
- Input Metrics: 1050/1200 RPM
- Insulation Rating: INS CL B
- Safety Feature: Thermally Protected (T.P. system resets automatically)
Capacitor Requirements
- Must be paired with a 6.0 μF / 370V AC run capacitor to prevent winding burnout.
Wiring Configuration & Color Coding
The wiring schematic on the motor body dictates the following line connections:
- Red (RED): High Speed / Line
- White (WHITE): Neutral / Line
- Black (BLACK/HI): Variable Line Control Connection
- Brown (BROWN/M): Capacitor Lead
- Blue (BLUE/L): Capacitor Lead
📞 Contact & Procurement Details
To secure pricing, check stock availability, or coordinate bulk fulfillment across Saudi Arabia, contact the Ayub First Trading Company distribution offices directly:
- Primary Hotline (Call/WhatsApp): +966 56 004 2170
- Email Inquiries: ayubfirsttrading@gmail.com
- Corporate Web Platform: ayubfirsttrading.com
- Regional Warehouses: Showrooms fully stocked in Riyadh (Al Jabrah, Batha Road), Jeddah, Dammam, and Al Khobar (20th Street, Hail Road).
