1/8 HP. 865 RPM AC Fan Motor : AFTC-1060A

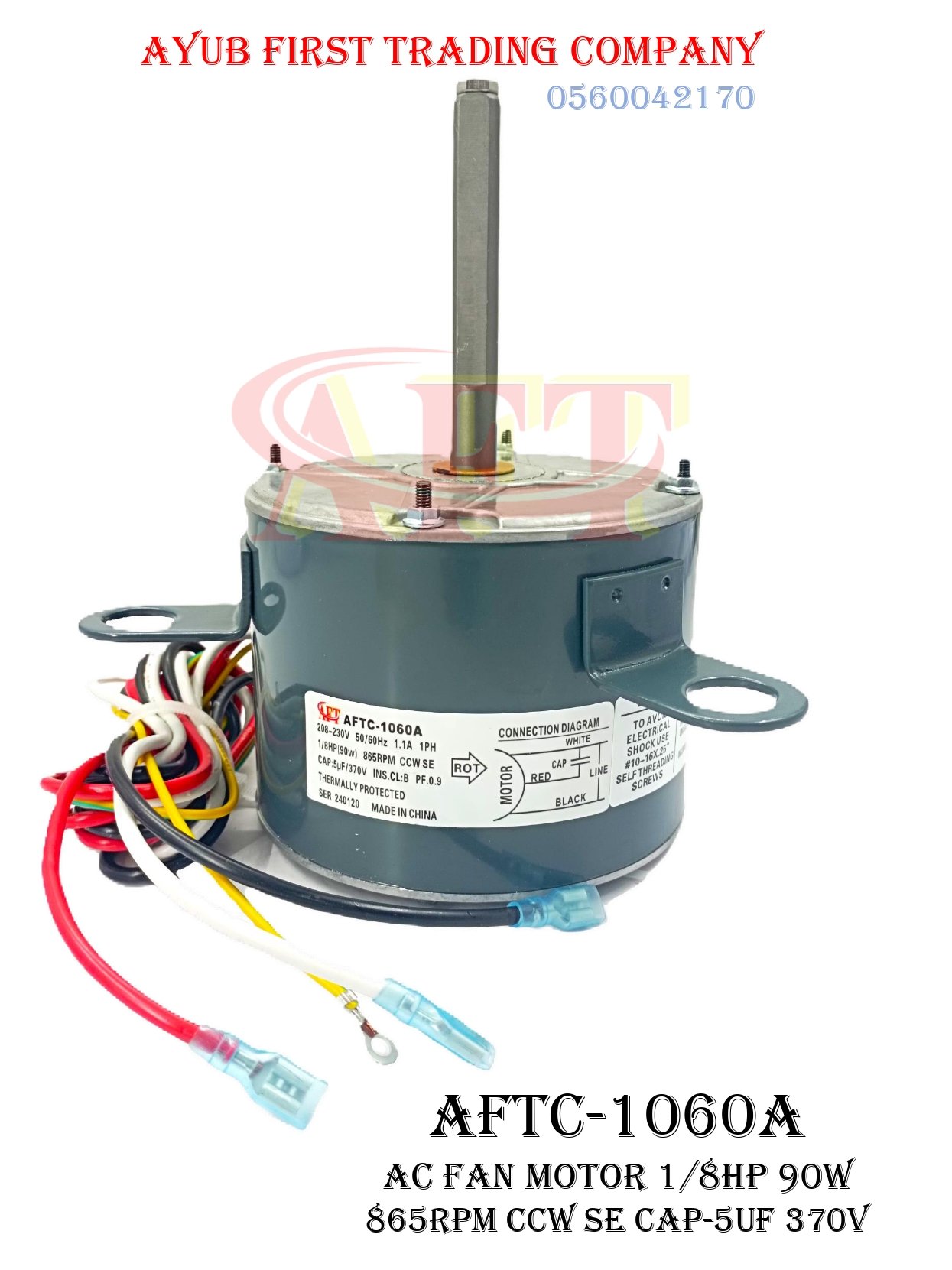

This is an AC Fan Motor with integrated side mounting brackets and a long, flatted shaft, primarily used as a replacement condenser or blower motor for residential air conditioning systems.
Core Identification & Codes
- Product Part Number: AFTC-1060A
- Model Designation: AFTC-1060A
- Distributor/Vendor: Ayub First Trading Company (Contact: 0560042170)
- Serial / Batch Number: SER 240120
- Country of Origin: Made in China
Electrical Specifications
- Power Output: 1/8 HP (Horsepower) / Labeled as 90 Watts (90W)
- Operating Voltage: 208V–230V AC
- Frequency: 50/60 Hz
- Current Draw: 1.1 Amps (1.1A)
- Phase Configuration: 1PH (Single Phase Induction Motor)
- Rotational Speed: 865 RPM
- Power Factor: PF 0.9
- Insulation Class: INS.CL: B (Class B insulation)
- Safety Feature: Thermally Protected (Internal automatic thermal overload cut-off system)
Capacitor & Rotation Requirements
- Capacitor Rating: Must be paired with a 5.0 μF / 370V AC run capacitor.
- Rotation Direction: CCW SE (Counter-Clockwise facing the Shaft End), also verified by the “ROT” arrow on the sticker pointing left.
Wiring Configuration
According to the connection diagram printed on the motor label, the wires connect as follows:
- WHITE: Connected directly to one side of the 5.0 μF run capacitor (CAP).
- RED: Connected to the opposite terminal of the run capacitor and bridges to Line 1 (Power).
- BLACK: Connected directly to Line 2 (Power).
- Yellow Wire with Ring Terminal: Dedicated safety ground line for chassis grounding.
📞 Contact & Procurement Details
To secure pricing, check stock availability, or coordinate bulk fulfillment across Saudi Arabia, contact the Ayub First Trading Company distribution offices directly:
- Primary Hotline (Call/WhatsApp): +966 56 004 2170
- Email Inquiries: ayubfirsttrading@gmail.com
- Corporate Web Platform: ayubfirsttrading.com
- Regional Warehouses: Showrooms fully stocked in Riyadh (Al Jabrah, Batha Road), Jeddah, Dammam, and Al Khobar (20th Street, Hail Road).
Description
Description
This is an AC Fan Motor with integrated side mounting brackets and a long, flatted shaft, primarily used as a replacement condenser or blower motor for residential air conditioning systems.
Core Identification & Codes
- Product Part Number: AFTC-1060A
- Model Designation: AFTC-1060A
- Serial / Batch Number: SER 240120
- Country of Origin: Made in China
Electrical Specifications
- Power Output: 1/8 HP (Horsepower) / Labeled as 90 Watts (90W)
- Operating Voltage: 208V–230V AC
- Frequency: 50/60 Hz
- Current Draw: 1.1 Amps (1.1A)
- Phase Configuration: 1PH (Single Phase Induction Motor)
- Rotational Speed: 865 RPM
- Power Factor: PF 0.9
- Insulation Class: INS.CL: B (Class B insulation)
- Safety Feature: Thermally Protected (Internal automatic thermal overload cut-off system)
Capacitor & Rotation Requirements
- Capacitor Rating: Must be paired with a 5.0 μF / 370V AC run capacitor.
- Rotation Direction: CCW SE (Counter-Clockwise facing the Shaft End), also verified by the “ROT” arrow on the sticker pointing left.
Wiring Configuration
According to the connection diagram printed on the motor label, the wires connect as follows:
- WHITE: Connected directly to one side of the 5.0 μF run capacitor (CAP).
- RED: Connected to the opposite terminal of the run capacitor and bridges to Line 1 (Power).
- BLACK: Connected directly to Line 2 (Power).
- Yellow Wire with Ring Terminal: Dedicated safety ground line for chassis grounding.
📞 Contact & Procurement Details
To secure pricing, check stock availability, or coordinate bulk fulfillment across Saudi Arabia, contact the Ayub First Trading Company distribution offices directly:
- Primary Hotline (Call/WhatsApp): +966 56 004 2170
- Email Inquiries: ayubfirsttrading@gmail.com
- Corporate Web Platform: ayubfirsttrading.com
- Regional Warehouses: Showrooms fully stocked in Riyadh (Al Jabrah, Batha Road), Jeddah, Dammam, and Al Khobar (20th Street, Hail Road).
