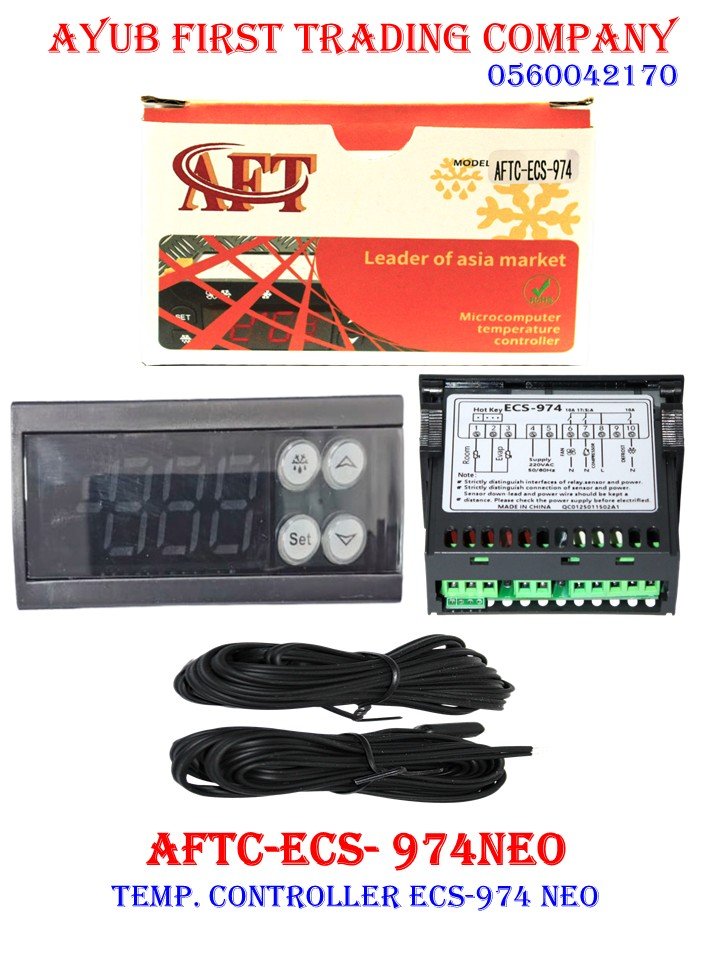

AFTC-ECS-974NEO. double sensor REF.Temperature Controller.
The AFTC-ECS-974NEO is a digital microcomputer temperature controller designed for refrigeration and heating systems. This model features a double sensor input (one for cabinet temperature and one for evaporator/defrost control) and three relay outputs.
Technical Specifications….
| Feature | Specification |
|---|---|
| Model | AFTC-ECS-974NEO |
| Power Supply | 220VAC ±10% (50/60Hz) |
| Measurement Range | -50°C to 99°C |
| Control Range | -50°C to 90°C |
| Accuracy | ±1°C (-40°C to 50°C); ±2°C (others) |
| Resolution | 0.1°C / 1°C |
| Inputs | 2 NTC sensors (included) |
| Relay Outputs | Refrigeration (17A), Defrost (10A), and Fan (10A) |
| Protection | IP65 (front panel) |
Key Functions & Features
- Three-Way Output: Controls the compressor, defrost, and fan independently for advanced refrigeration management.
- Double Sensor Input: Uses two separate NTC probes to monitor both the storage area and the evaporator temperature for precise defrost cycles.
- Menu System:
- User Menu: For basic temperature setting adjustments.
- Administrator Menu: Password-protected (default often 05) to configure advanced technical parameters.
- Copy Card Port: Features a port for a copy card, allowing users to quickly upload or download settings between multiple controllers.
- Alarm Codes: The display will show error codes such as E1 (cabinet sensor fault) or E2 (evaporator sensor fault) if a probe is disconnected or fails.
Basic Operations
- View Temperature: Press and release Set to see the current temperature set point.
- Modify Temperature: While the set point is flashing, use the Up (▲) or Down (▼) arrows to change the value, then press Set to save.
- Manual Defrost: Press and hold the Defrost (❄️) button for 3 seconds to start a manual defrost cycle.
-
Supplier InformationThis specific branded model is supplied by Ayub First Trading Company, which has showrooms across Saudi Arabia including Riyadh, Dammam, Jeddah, and Khobar.
- Contact Number: +966 56 004 2170.
