18W.220V.1900 and 2000 RPM.Refrigeration Cross Flow Fan.WB-002

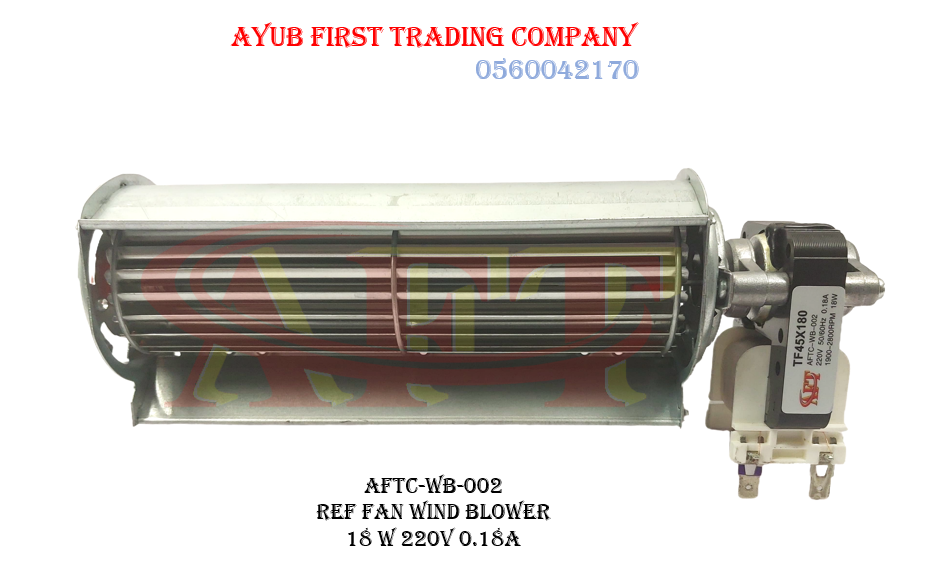

This device is an WB-002 Refrigeration Cross Flow Fan (also known as a tangential or wind blower fan), primarily used in commercial display fridges, freezers, and industrial cooling units to provide a wide, even curtain of air.
Technical Specifications
- Model Number: WB-002 (Marked: TF45X180).
- Voltage: 220V AC (Standard 50/60Hz).
- Current/Power: 0.18A drawing approximately 18W.
- Speed: Operates between 1900 and 2000 RPM.
- Dimensions: Features a 180mm long aluminum impeller (the “drum”).
Key Features & Construction
- Airflow Design: Unlike axial fans, cross-flow fans suck air in over the entire width of the impeller and discharge it at a 90° angle, creating a uniform, laminar flow that is ideal for air curtains or cooling across long evaporator coils.
- Materials: Built with a lightweight aluminum impeller to reduce noise and vibration, and a galvanized steel housing for corrosion resistance in moist refrigerator environments.
- Motor Type: Powered by a shaded-pole AC motor (mounted on the right side) designed for continuous, reliable operation.
- Connectivity: Equipped with two male spade terminals for standard electrical connections.
Description
Description
This device is an WB-002 Refrigeration Cross Flow Fan (also known as a tangential or wind blower fan), primarily used in commercial display fridges, freezers, and industrial cooling units to provide a wide, even curtain of air.
Technical Specifications
- Model Number: WB-002 (Marked: TF45X180).
- Voltage: 220V AC (Standard 50/60Hz).
- Current/Power: 0.18A drawing approximately 18W.
- Speed: Operates between 1900 and 2000 RPM.
- Dimensions: Features a 180mm long aluminum impeller (the “drum”).
Key Features & Construction
- Airflow Design: Unlike axial fans, cross-flow fans suck air in over the entire width of the impeller and discharge it at a 90° angle, creating a uniform, laminar flow that is ideal for air curtains or cooling across long evaporator coils.
- Materials: Built with a lightweight aluminum impeller to reduce noise and vibration, and a galvanized steel housing for corrosion resistance in moist refrigerator environments.
- Motor Type: Powered by a shaded-pole AC motor (mounted on the right side) designed for continuous, reliable operation.
- Connectivity: Equipped with two male spade terminals for standard electrical connections.
