1PH LG Ac Outdoor Motor Split CH : AFTC-2H00430J

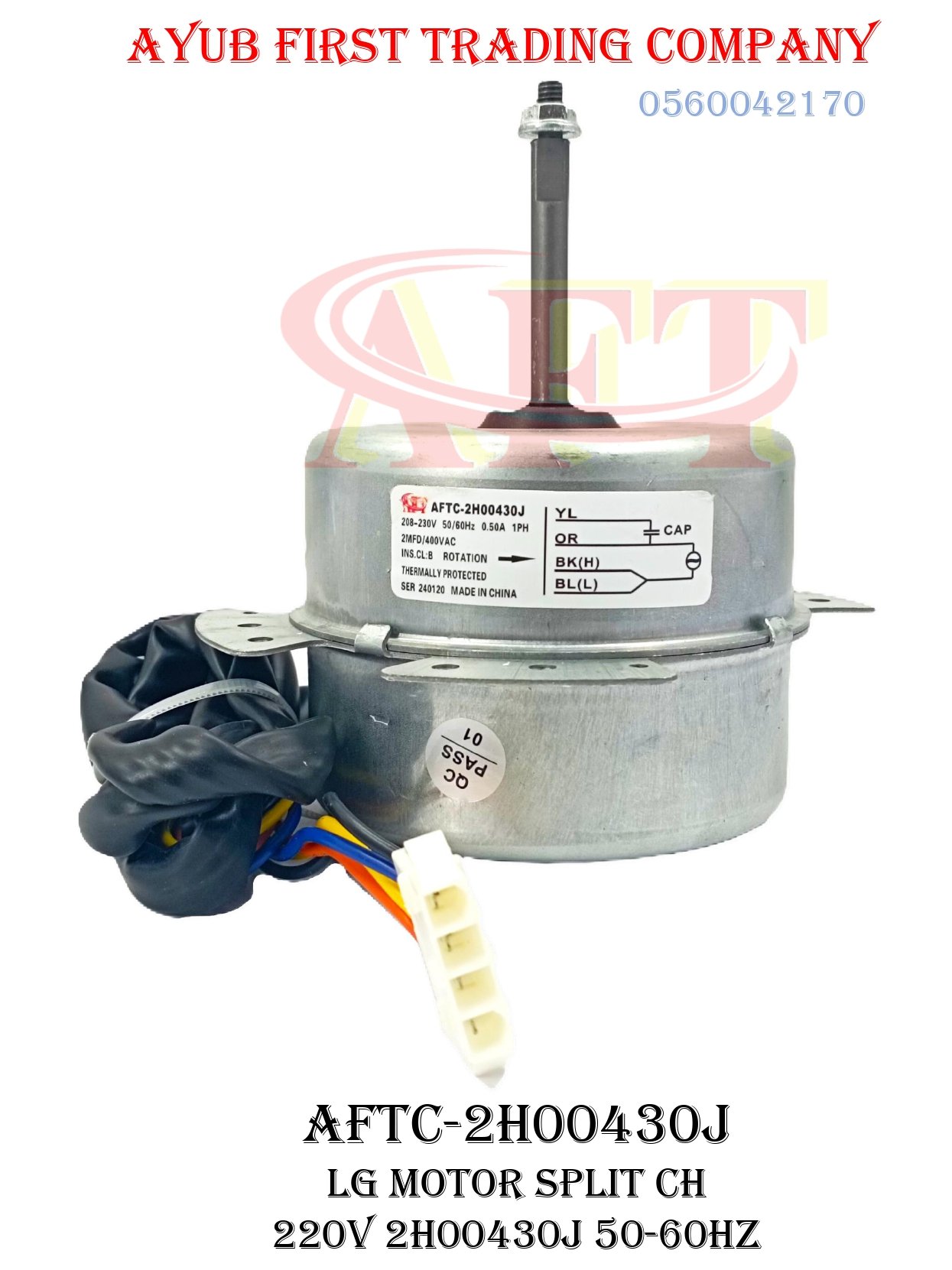

This is an AC Fan Motor featuring an integrated center-mounting flange bracket, designed primarily as a replacement fan motor for LG residential split air conditioning units (often referenced as a “Split CH” model).
Core Identification & Codes
- Product Model / SKU: AFTC-2H00430J
- Alternative Manufacturer Code: 2H00430J
- Application Description: LG Motor Split CH
- Distributor/Vendor: Ayub First Trading Company (Contact: 0560042170)
- Serial Number (SER): 240120
- Country of Origin: Made in China
Electrical Specifications
- Operating Voltage: 208–230V AC
- Frequency: 50/60 Hz
- Phase Configuration: 1PH (Single Phase Induction Motor)
- Current Draw: 0.50 Amps
- Insulation Class: Class B (INS.CL:B)
- Safety Feature: Thermally Protected (T.P. system with automatic shutdown if overheated)
Capacitor & Rotation Requirements
- Capacitor Rating: Requires a 2.0 μF / 400V AC (2MFD/400VAC) run capacitor to initiate and stabilize torque.
- Rotation Direction: Clockwise facing the shaft, as verified by the straight “ROTATION” arrow pointing right on the label schematic.
Wiring Configuration & Speed Control
The multi-wire connection layout on the label indicates a multi-tap speed design:
- YL (Yellow): Connected directly to the run capacitor line (CAP)
- OR (Orange): Connected to the opposite side of the run capacitor
- BK (H) (Black): High Speed / Line connection
- BL (L) (Blue): Low Speed / Line connection
📞 Contact & Procurement Details
To secure pricing, check stock availability, or coordinate bulk fulfillment across Saudi Arabia, contact the Ayub First Trading Company distribution offices directly:
- Primary Hotline (Call/WhatsApp): +966 56 004 2170
- Email Inquiries: ayubfirsttrading@gmail.com
- Corporate Web Platform: ayubfirsttrading.com
- Regional Warehouses: Showrooms fully stocked in Riyadh (Al Jabrah, Batha Road), Jeddah, Dammam, and Al Khobar (20th Street, Hail Road).
