2-Pin REALY REFRIGERATOR : AFTC-RY-002

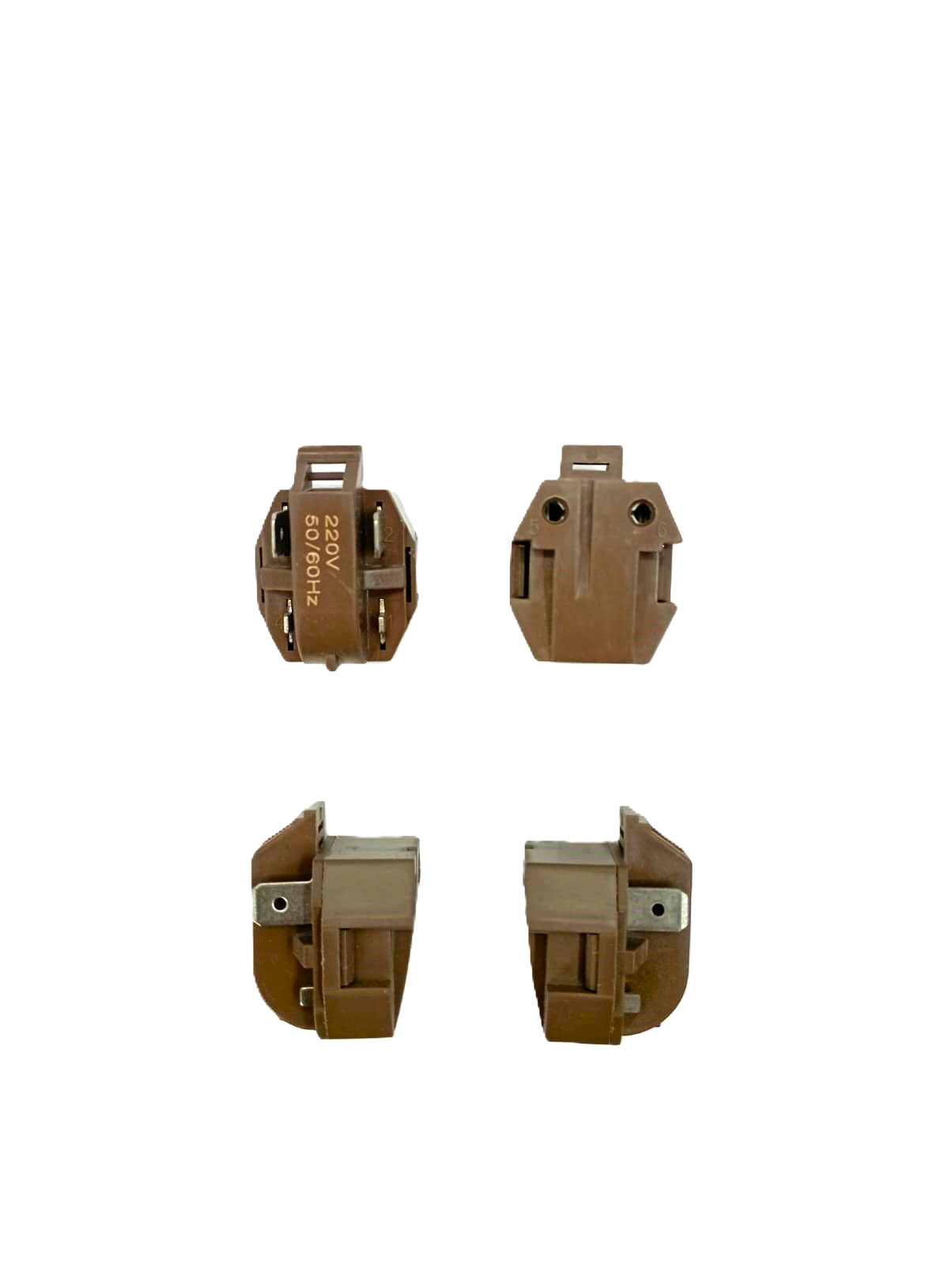

This image shows various angles of a refrigerator compressor PTC (Positive Temperature Coefficient) start relay. This specific part is a 2-pin model, often used in many household refrigerators and freezers to help the compressor motor start up.
Technical Specifications
-
- Part Number: AFTC-RY-002
- Type: PTC Start Relay (Solid State)
- Configuration: 2-Pin
- Electrical Rating: 220V, 50/60Hz
- Manufacturer/Supplier: Ayub First Trading Company.
What It Does
The PTC relay is a safety and starting device for the compressor. When you first turn on your fridge, the relay provides a high burst of current to the compressor’s start winding. As it heats up, its resistance increases rapidly, eventually “switching off” the start winding once the motor is running at speed.
Common Signs of Failure
If this part is broken, you might notice:
- The “Clicking” Sound: A repeated clicking noise every few minutes as the compressor tries (and fails) to start.
- Warm Fridge: The compressor isn’t running, so the appliance stops cooling.
- Rattling: If you remove the relay and shake it, a rattling sound usually means the internal ceramic disk has shattered.
Description
Description
This image shows various angles of a refrigerator compressor PTC (Positive Temperature Coefficient) start relay. This specific part is a 2-pin model, often used in many household refrigerators and freezers to help the compressor motor start up.
Technical Specifications
-
- Part Number: AFTC-RY-002
- Type: PTC Start Relay (Solid State)
- Configuration: 2-Pin
- Electrical Rating: 220V, 50/60Hz
- Manufacturer/Supplier: Ayub First Trading Company.
What It Does
The PTC relay is a safety and starting device for the compressor. When you first turn on your fridge, the relay provides a high burst of current to the compressor’s start winding. As it heats up, its resistance increases rapidly, eventually “switching off” the start winding once the motor is running at speed.
Common Signs of Failure
If this part is broken, you might notice:
- The “Clicking” Sound: A repeated clicking noise every few minutes as the compressor tries (and fails) to start.
- Warm Fridge: The compressor isn’t running, so the appliance stops cooling.
- Rattling: If you remove the relay and shake it, a rattling sound usually means the internal ceramic disk has shattered.
