202403300017 / 3014051641 Split Indoor Unit Blower Fan Motor : AFTC-ACM-018

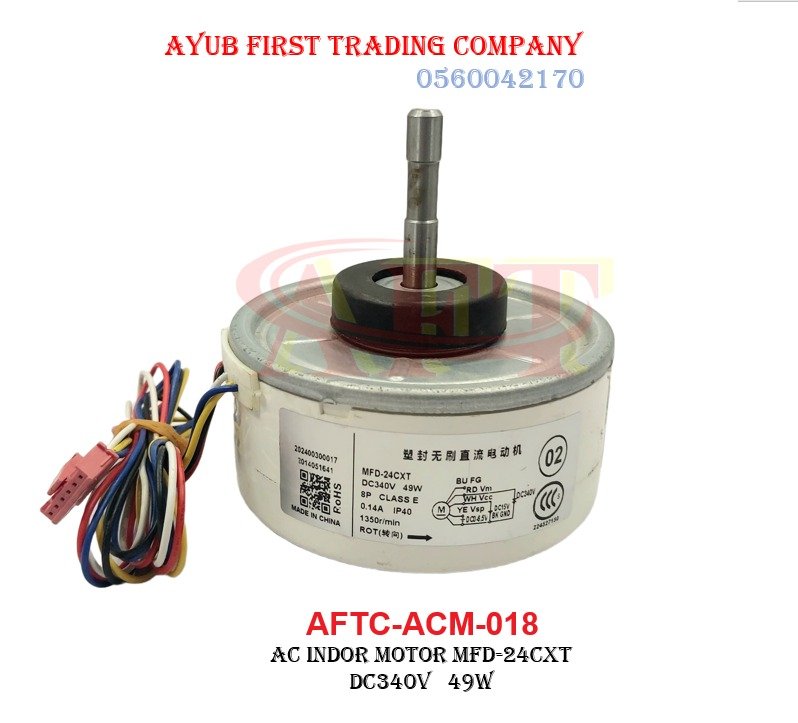

This is a high-efficiency Resin Packed Brushless DC (BLDC) Motor designed as an indoor blower motor for split-type residential room air conditioners.
Core Identification & Codes
-
- Product Part Number (SKU): AFTC-ACM-018
- Model Designation: MFD-24CXT
- Production Serial Number: 202403300017 / 3014051641
- Type: Resin Packed Brushless DC Motor (塑封无刷直流电动机)
- Application: Split Indoor Unit Blower Fan Motor
- Country of Origin: Made in China
- Certifications: CCC certified, RoHS compliant
Electrical Specifications
-
- Operating Voltage: DC 340V (High-voltage DC drive system)
- Power Output: 49 Watts
- Current Draw: 0.14 Amps
- Rotational Speed: 1350 r/min (RPM)
- Motor Poles: 8P (8 Poles)
- Insulation Class: CLASS E
- Protection Class: IP40 (Protected against solid wires/objects >1mm; no liquid protection)
- Rotation Direction: Clockwise (indicated by the arrow pointing right next to “ROT(转向)”)
Wiring & Control Interface (5-Wire DC Configuration)
This motor uses an integrated electronic drive circuit via a single high-voltage 5-pin red connector plug. The wiring schematic on the label outlines the functions:
-
- Red Wire (RD): Vm (DC +340V High-Voltage Main Power supply)
- Black Wire (BK): GND (Common Ground for both power and logic loops)
- White Wire (WH): Vcc (DC +15V Low-Voltage Logic Power supply for internal IC electronics)
- Yellow Wire (YE): Vsp (DC 0V to 6.5V Variable Speed Control Signal input from the mainboard)
- Blue Wire (BU): FG (Frequency Generator / RPM Feedback output pulse to monitor speed)
📞 Contact & Procurement Details
To secure pricing, check stock availability, or coordinate bulk fulfillment across Saudi Arabia, contact the Ayub First Trading Company distribution offices directly:
- Primary Hotline (Call/WhatsApp): +966 56 004 2170
- Email Inquiries: ayubfirsttrading@gmail.com
- Corporate Web Platform: ayubfirsttrading.com
- Regional Warehouses: Showrooms fully stocked in Riyadh (Al Jabrah, Batha Road), Jeddah, Dammam, and Al Khobar (20th Street, Hail Road).
Description
Description
This is a high-efficiency Resin Packed Brushless DC (BLDC) Motor designed as an indoor blower motor for split-type residential room air conditioners.
Core Identification & Codes
-
- Product Part Number (SKU): AFTC-ACM-018
- Model Designation: MFD-24CXT
- Production Serial Number: 202403300017 / 3014051641
- Type: Resin Packed Brushless DC Motor (塑封无刷直流电动机)
- Application: Split Indoor Unit Blower Fan Motor
- Country of Origin: Made in China
- Certifications: CCC certified, RoHS compliant
Electrical Specifications
-
- Operating Voltage: DC 340V (High-voltage DC drive system)
- Power Output: 49 Watts
- Current Draw: 0.14 Amps
- Rotational Speed: 1350 r/min (RPM)
- Motor Poles: 8P (8 Poles)
- Insulation Class: CLASS E
- Protection Class: IP40 (Protected against solid wires/objects >1mm; no liquid protection)
- Rotation Direction: Clockwise (indicated by the arrow pointing right next to “ROT(转向)”)
Wiring & Control Interface (5-Wire DC Configuration)
This motor uses an integrated electronic drive circuit via a single high-voltage 5-pin red connector plug. The wiring schematic on the label outlines the functions:
-
- Red Wire (RD): Vm (DC +340V High-Voltage Main Power supply)
- Black Wire (BK): GND (Common Ground for both power and logic loops)
- White Wire (WH): Vcc (DC +15V Low-Voltage Logic Power supply for internal IC electronics)
- Yellow Wire (YE): Vsp (DC 0V to 6.5V Variable Speed Control Signal input from the mainboard)
- Blue Wire (BU): FG (Frequency Generator / RPM Feedback output pulse to monitor speed)
