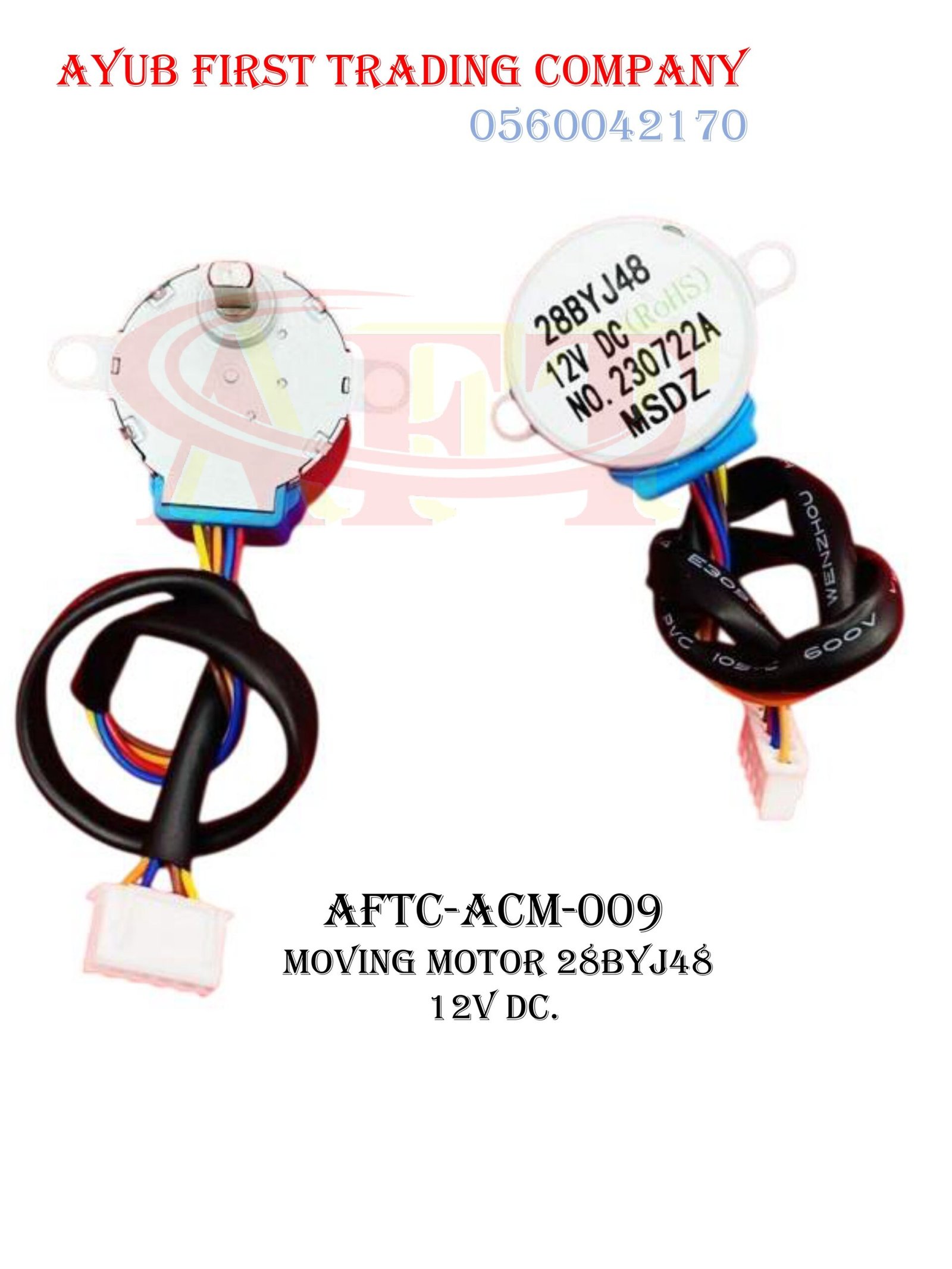

28BYJ48 Air Conditioner Swing Louver Motor : AFTC-ACM-009
This is an Air Conditioner Swing Louver Motor used to regulate the automatic movement of air deflection blades. Below are the precise technical specifications and wiring details extracted directly from the product label and catalog markings:
Core Identification & Codes
- Product Part Number: AFTC-ACM-009
- Model Number: 28BYJ48
- Type: 4-Phase 5-Wire Stepper Motor / Synchronous Moving Motor
- Compliance: RoHS certified
- Batch/Serial Number: NO. 230722A MSDZ
- Common Application: Controlling vertical or horizontal swing louvers in mini-split indoor air conditioning units.
Electrical & Mechanical Specifications
- Operating Voltage: 12V DC (Direct Current)
- Insulation & Insulation Sleeve: Outer protective sheathing rated for 600V (Wenzhou PVC 105°C sleeve)
- Mounting Style: Integrated dual metal mounting tabs for screw-in chassis fixation.
- Output Shaft: D-shaped flatted shaft designed to prevent slip inside the plastic louver linkage.
Wiring Configuration
- Connector Type: 5-pin female mini-plug interface terminal.
- Typical Pinout Internal Coil Mapping:
- Common Power (Vcc): Pin 5 (Usually Red)
- Phase Coils A-D: Pins 1–4 (Orange, Yellow, Pink, Blue)
📞 Contact & Procurement Details
To secure pricing, check stock availability, or coordinate bulk fulfillment across Saudi Arabia, contact the Ayub First Trading Company distribution offices directly:
- Primary Hotline (Call/WhatsApp): +966 56 004 2170
- Email Inquiries: ayubfirsttrading@gmail.com
- Corporate Web Platform: ayubfirsttrading.com
- Regional Warehouses: Showrooms fully stocked in Riyadh (Al Jabrah, Batha Road), Jeddah, Dammam, and Al Khobar (20th Street, Hail Road).
Description
Description
This is an Air Conditioner Swing Louver Motor used to regulate the automatic movement of air deflection blades. Below are the precise technical specifications and wiring details extracted directly from the product label and catalog markings:
Core Identification & Codes
- Product Part Number: AFTC-ACM-009
- Model Number: 28BYJ48
- Type: 4-Phase 5-Wire Stepper Motor / Synchronous Moving Motor
- Compliance: RoHS certified
- Batch/Serial Number: NO. 230722A MSDZ
- Common Application: Controlling vertical or horizontal swing louvers in mini-split indoor air conditioning units.
Electrical & Mechanical Specifications
- Operating Voltage: 12V DC (Direct Current)
- Insulation & Insulation Sleeve: Outer protective sheathing rated for 600V (Wenzhou PVC 105°C sleeve)
- Mounting Style: Integrated dual metal mounting tabs for screw-in chassis fixation.
- Output Shaft: D-shaped flatted shaft designed to prevent slip inside the plastic louver linkage.
Wiring Configuration
- Connector Type: 5-pin female mini-plug interface terminal.
- Typical Pinout Internal Coil Mapping:
- Common Power (Vcc): Pin 5 (Usually Red)
- Phase Coils A-D: Pins 1–4 (Orange, Yellow, Pink, Blue)
📞 Contact & Procurement Details
To secure pricing, check stock availability, or coordinate bulk fulfillment across Saudi Arabia, contact the Ayub First Trading Company distribution offices directly:
- Primary Hotline (Call/WhatsApp): +966 56 004 2170
- Email Inquiries: ayubfirsttrading@gmail.com
- Corporate Web Platform: ayubfirsttrading.com
- Regional Warehouses: Showrooms fully stocked in Riyadh (Al Jabrah, Batha Road), Jeddah, Dammam, and Al Khobar (20th Street, Hail Road).
