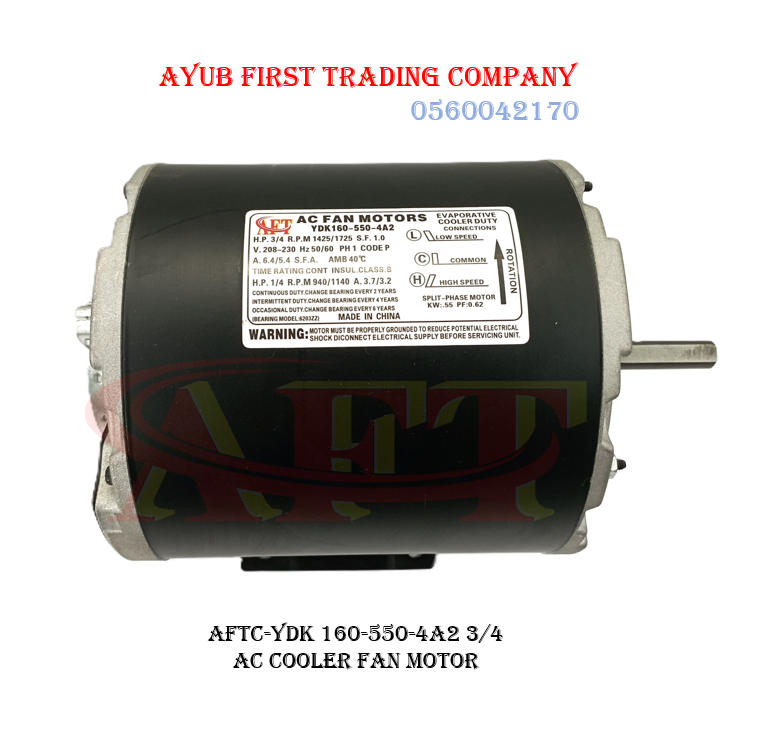

3/4 HP 1425 / 1725 RPM AC Cooler Fan Motor : AFTC-YDK 160-550-4A2
This model represents the highest power output in this specific series, upgrading to a heavy-duty 3/4 HP Evaporative Cooler Duty AC Fan Motor built for maximum airflow systems.
📋 Technical Specifications
-
- Model Number:
AFTC-YDK 160-550-4A2(Faceplate:YDK160-550-4A2) - Motor Architecture: Split-Phase Motor windings.
- Power Output: 0.550 kW (
KW: .55) with a Power Factor ofPF: 0.62. - Electrical Parameters: 208V – 230V AC, 50/60 Hz, Single Phase (1 PH), Code F.
- Operating Attributes: Class B Insulation (
INSUL. CLASS B), continuous time rating (CONT.), and a maximum ambient temperature ceiling of40°C(AMB 40°C). - Internal Hardware: Fitted with 6202ZZ model sealed ball bearings.
- Origin: Made in China.
- Model Number:
⚡ Two-Speed Performance Breakdown
The operational draw and speed metrics adjust based on the active wiring line:
-
- High Speed Terminal Settings:
-
- Horsepower Performance: 3/4 HP (⚠️ Crucial change: Maximum torque capacity variant for this motor line).
- Rotational Threshold: 1425 / 1725 RPM
- Current Demands: 6.4 / 5.4 Amps (With matching Service Factor Amperage limits at an
S.F. 1.0rating).
-
- Low Speed Terminal Settings:
-
- Horsepower Performance: 1/4 HP
- Rotational Threshold: 940 / 1140 RPM
- Current Demands: 3.7 / 3.2 Amps.
-
- High Speed Terminal Settings:
🔧 Wiring & Bearing Maintenance Schedules
- Wiring Scheme (Right Side Schematic):
-
- C (Common Line): Core neutral / return power connection.
- L (Low Speed Line): Low velocity selector pathway.
- H (High Speed Line): High velocity terminal (conforms to fixed rotation vector arrow).
-
- 📞 Contact & Procurement DetailsTo secure pricing, check stock availability, or coordinate bulk fulfillment across Saudi Arabia, contact the Ayub First Trading Company distribution offices directly:
- Primary Hotline (Call/WhatsApp): +966 56 004 2170
- Email Inquiries: ayubfirsttrading@gmail.com
- Corporate Web Platform: ayubfirsttrading.com
- Regional Warehouses: Showrooms fully stocked in Riyadh (Al Jabrah, Batha Road), Jeddah, Dammam, and Al Khobar (20th Street, Hail Road).
