3-wire.100 cm (approx. 3.3 feet) .30,000 BTU.Compressor Terminal Control Wire.SNR-021

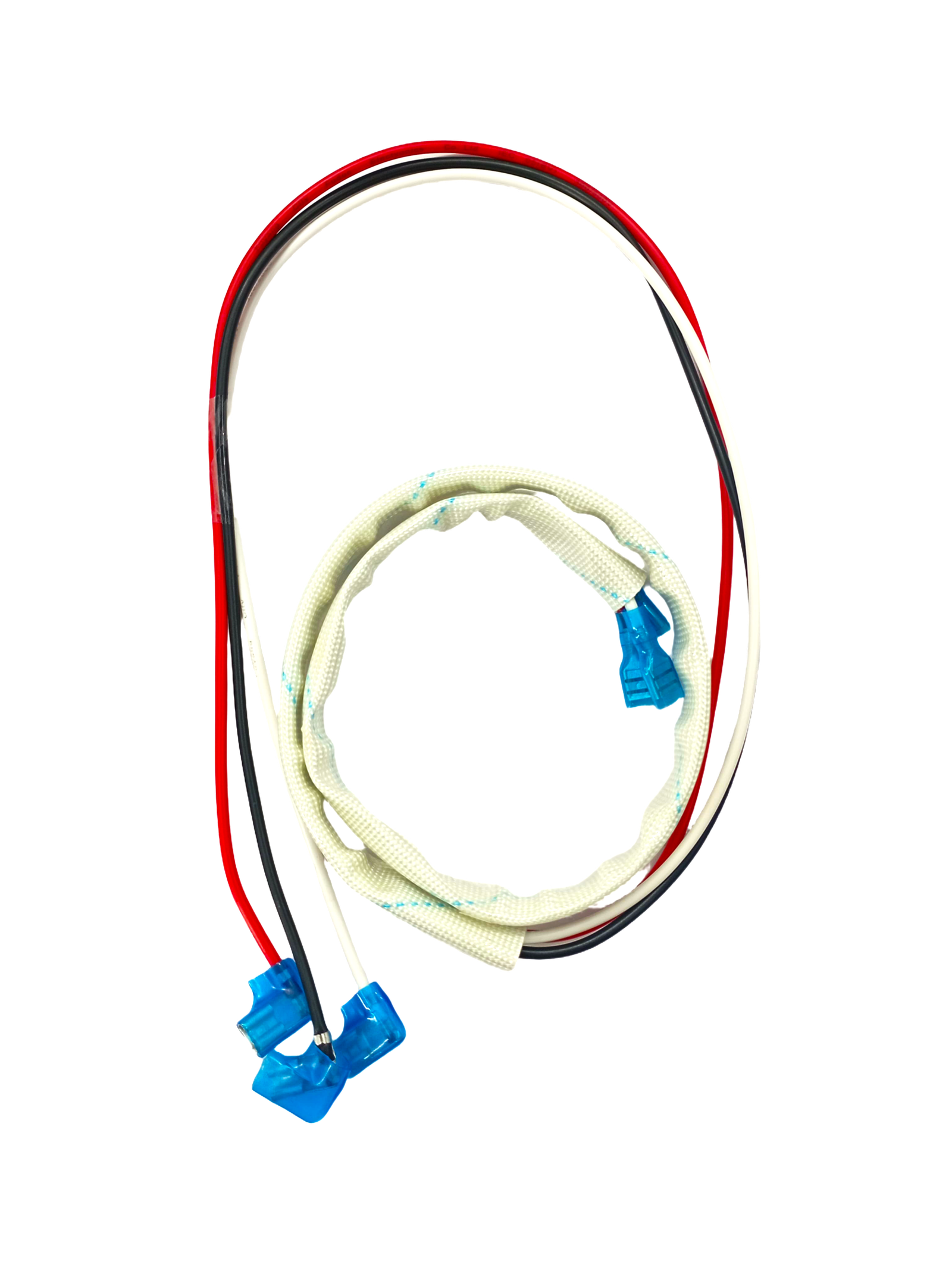

This device is an SNR-021 Compressor Terminal Control Wire, an electrical harness specifically designed for high-capacity air conditioning systems a major supplier of HVAC and appliance spare parts.
Technical Specifications
- Model Number: SNR-021.
- Application: Optimized for large air conditioning compressors with a cooling capacity of 30,000 BTU.
- Total Length: 100 cm (approx. 3.3 feet), providing extra reach for larger outdoor units.
- Wiring Configuration: A 3-wire system featuring high-conductivity copper cores. The wires are typically color-coded (Red, White, and Black) to match standard compressor terminals: Common (C), Start (S), and Run (R).
- Terminals: Equipped with spade crimp connectors (typically 9mm width) and blue plastic insulating covers to ensure a secure, moisture-resistant connection.
Key Features
- High Temperature Resistance: The wires are encased in a heat-resistant braided shield (white sleeve) to protect the insulation from the extreme heat generated by the compressor motor.
- Durable Construction: Made from materials designed for anti-aging, corrosion resistance, and fast electrical conductivity to maintain system efficiency.
- Hermetic Seal: Acts as a lead wire assembly that maintains the electrical integrity of the hermetic motor terminals found in AC compressors.
Typical Use Cases
- Replacement: To fix burnt or brittle wiring caused by electrical shorts or long-term heat exposure.
- Compatibility: While designed for 30,000 BTU units, it is often compatible with compressors in the
Description
Description
This device is an SNR-021 Compressor Terminal Control Wire, an electrical harness specifically designed for high-capacity air conditioning systems a major supplier of HVAC and appliance spare parts.
Technical Specifications
- Model Number: SNR-021.
- Application: Optimized for large air conditioning compressors with a cooling capacity of 30,000 BTU.
- Total Length: 100 cm (approx. 3.3 feet), providing extra reach for larger outdoor units.
- Wiring Configuration: A 3-wire system featuring high-conductivity copper cores. The wires are typically color-coded (Red, White, and Black) to match standard compressor terminals: Common (C), Start (S), and Run (R).
- Terminals: Equipped with spade crimp connectors (typically 9mm width) and blue plastic insulating covers to ensure a secure, moisture-resistant connection.
Key Features
- High Temperature Resistance: The wires are encased in a heat-resistant braided shield (white sleeve) to protect the insulation from the extreme heat generated by the compressor motor.
- Durable Construction: Made from materials designed for anti-aging, corrosion resistance, and fast electrical conductivity to maintain system efficiency.
- Hermetic Seal: Acts as a lead wire assembly that maintains the electrical integrity of the hermetic motor terminals found in AC compressors.
Typical Use Cases
- Replacement: To fix burnt or brittle wiring caused by electrical shorts or long-term heat exposure.
- Compatibility: While designed for 30,000 BTU units, it is often compatible with compressors in the
