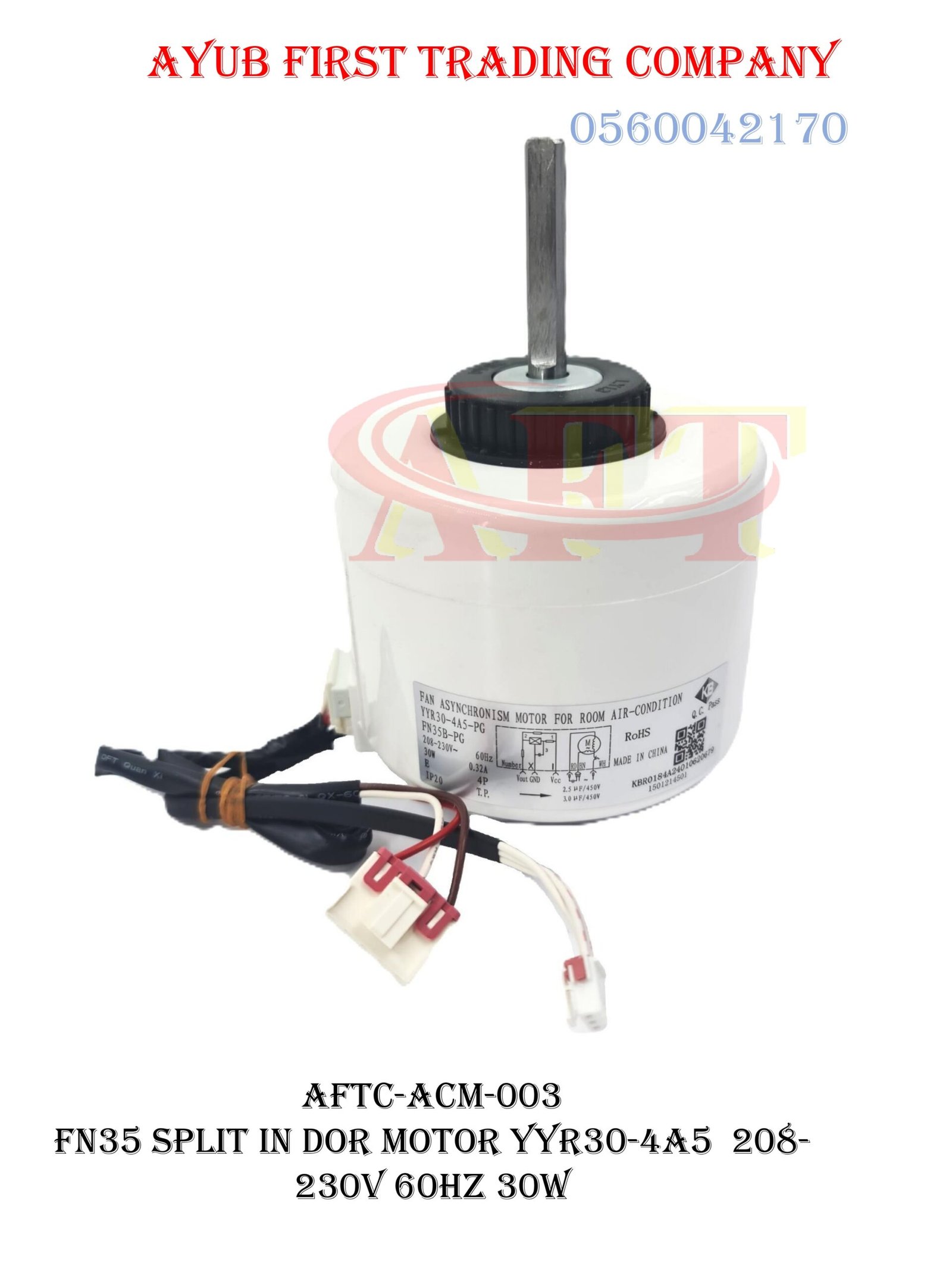

30 W. YYR30-4A5-PG / FN35B-PG Split ac Indoor Motor : AFTC-ACM-003
This is an Indoor Blower Motor designed for split-type residential room air conditioners. Here are all the precise technical specifications and wiring details extracted directly from the product label:
Core Identification & SKU
- Product Part Number: AFTC-ACM-003
- Model Designations: YYR30-4A5-PG / FN35B-PG
- Type: Fan Asynchronism Motor (Single-Phase Induction Motor)
- Application: Split Indoor Unit Blower
- Manufacturing Standards: RoHS compliant, Made in China
Electrical Specifications
- Voltage Input: 208V–230V AC
- Operating Frequency: 60Hz
- Power Consumption: 30 Watts
- Current Draw: 0.32 Amps
- Motor Poles: 4P (4 Poles)
- Protection Rating: IP20 (Finger/solid object protection; not water-resistant)
- Thermal Safety: T.P. (Internal Thermal Protection enabled)
Wiring & PG Control Loop
This motor utilizes a Pulse Generator (PG) speed regulation feedback loop. It features two separate wire bundles with specific pin assignments shown in the diagram:
- High-Voltage Power Harness (3-Pin White Plug):
- White Wire (WH): Connected directly to Line 1 / Neutral power.
- Brown Wire (BN): Feeds into the required 2.5 μF / 450V run capacitor.
- Red Wire (RD): Connects to Line 2 / Live power.
- Low-Voltage PG Feedback Sensor (3-Pin Smaller Connectors):
- Vcc: Power supply line feeding the internal Hall effect/rotation sensor.
- Vout (GND): Pulse signal line monitoring motor RPM output.
📞 Contact & Procurement Details
To secure pricing, check stock availability, or coordinate bulk fulfillment across Saudi Arabia, contact the Ayub First Trading Company distribution offices directly:
- Primary Hotline (Call/WhatsApp): +966 56 004 2170
- Email Inquiries: ayubfirsttrading@gmail.com
- Corporate Web Platform: ayubfirsttrading.com
- Regional Warehouses: Showrooms fully stocked in Riyadh (Al Jabrah, Batha Road), Jeddah, Dammam, and Al Khobar (20th Street, Hail Road).
