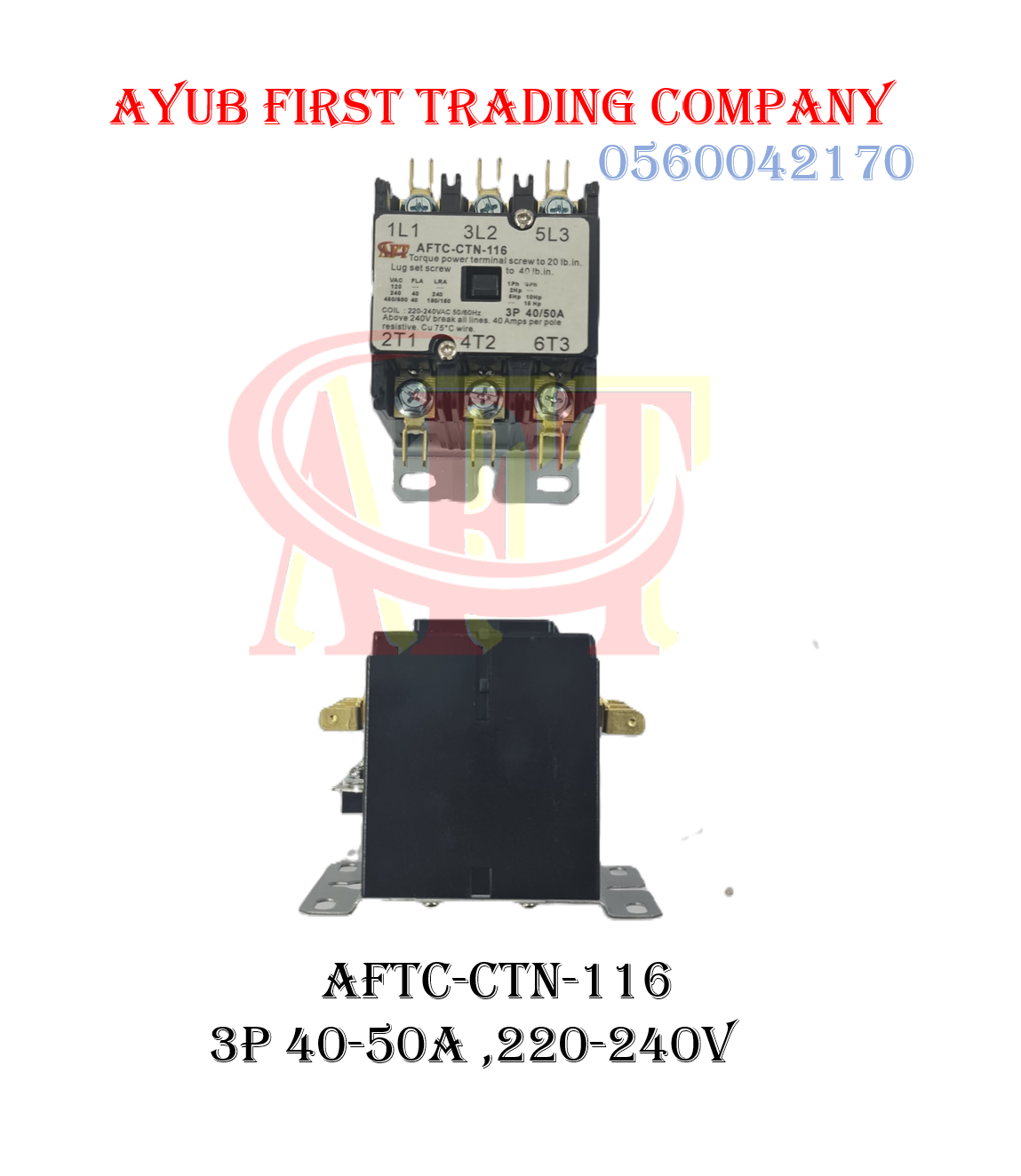

3P 40 FLA/50A Max 220V – 240V AC CONTACTOR : AFTC-CTN-116
This model increases the current capacity of the 3-phase configuration compared to the previous model, keeping standard line-voltage control.
📋 Technical Specifications
- Model Number:
AFTC-CTN-116 - Number of Poles: 3P (Three-pole configuration for three-phase equipment)
- Current Rating: 40 FLA (Full Load Amps) / 50A Max resistive load per pole.
- Control Coil Voltage: 220V – 240V AC at 50/60 Hz.
- Standard Compliance:
IEC60947
⚡ Horsepower & Load Breakdown
The faceplate details the higher capacity limits for this model:
- At 240V AC: Handles up to 240 LRA (Locked Rotor Amps).
- 1-Phase Power: Rated up to 7.5 HP (Horsepower).
- 3-Phase Power: Rated up to 15 HP.
- At 480V / 600V AC: Handles up to 180/150 LRA.
- 3-Phase Power: Rated up to 25 HP.
- At 120V AC:
- 1-Phase Power: Rated up to 3 HP.
🔧 Installation Mechanics
- Terminals: 1L1, 3L2, 5L3 for incoming supply phases; 2T1, 4T2, 6T3 for the load outputs.
- Terminal Screw Torque: 20 lb-in using copper wire (
Cu 75°C wire). - Lug Set Screw Torque: 40 lb-in.
📞 Contact & Procurement Details
To secure pricing, check stock availability, or coordinate bulk fulfillment across Saudi Arabia, contact the Ayub First Trading Company distribution offices directly:
- Primary Hotline (Call/WhatsApp): +966 56 004 2170
- Email Inquiries: ayubfirsttrading@gmail.com
- Corporate Web Platform: ayubfirsttrading.com
- Regional Warehouses: Showrooms fully stocked in Riyadh (Al Jabrah, Batha Road), Jeddah, Dammam, and Al Khobar (20th Street, Hail Road).
