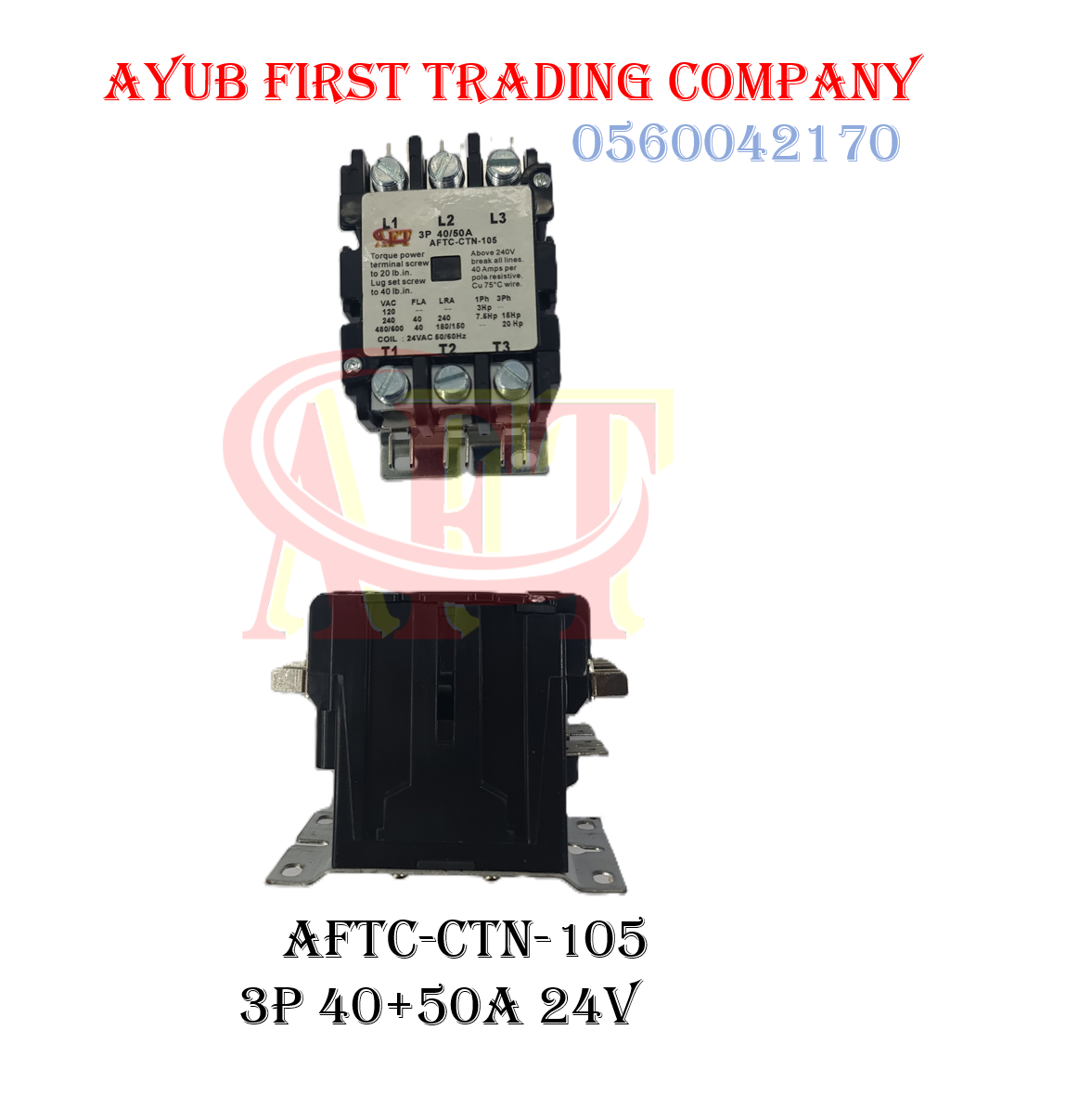

3P 40 FLA/50A Max 24VAC AC CONTACTOR : AFTC-CTN-105
This model keeps the high-power 3-phase capacity of the previous unit but introduces a critical change in the control circuit voltage, shifting to low-voltage automation.
📋 Technical Specifications
- Model Number:
AFTC-CTN-105 - Number of Poles: 3P (Three-pole configuration for three-phase industrial or commercial systems)
- Current Rating: 40 FLA (Full Load Amps) / 50A Max resistive load per pole.
- Control Coil Voltage: 24VAC at 50/60 Hz (⚠️ Crucial change: This unit uses a low-voltage 24V control signal instead of line voltage, making it directly compatible with standard HVAC thermostats and 24V control transformers).
⚡ Horsepower & Load Breakdown
The faceplate parameters match the heavy-duty capacities of the
CTN-104, but require the 24V coil trigger:- At 240V AC: Handles 40 FLA and up to 240 LRA (Locked Rotor Amps).
- 1-Phase Power: Rated for up to 7.5 HP (Horsepower).
- 3-Phase Power: Rated for up to 15 HP.
- At 480V / 600V AC: Handles 40 FLA and up to 180/150 LRA.
- 3-Phase Power: Rated for up to 25 HP.
- At 120V AC:
- 1-Phase Power: Rated for up to 3 HP.
🔧 Installation Mechanics
- Terminals: L1, L2, L3 for incoming power phases; T1, T2, T3 for motor or load output.
- Terminal Screw Torque: 20 lb-in using copper wire (
Cu 75°C wire). - Lug Set Screw Torque: 40 lb-in.
📞 Contact & Procurement Details
To secure pricing, check stock availability, or coordinate bulk fulfillment across Saudi Arabia, contact the Ayub First Trading Company distribution offices directly:
- Primary Hotline (Call/WhatsApp): +966 56 004 2170
- Email Inquiries: ayubfirsttrading@gmail.com
- Corporate Web Platform: ayubfirsttrading.com
- Regional Warehouses: Showrooms fully stocked in Riyadh (Al Jabrah, Batha Road), Jeddah, Dammam, and Al Khobar (20th Street, Hail Road).
