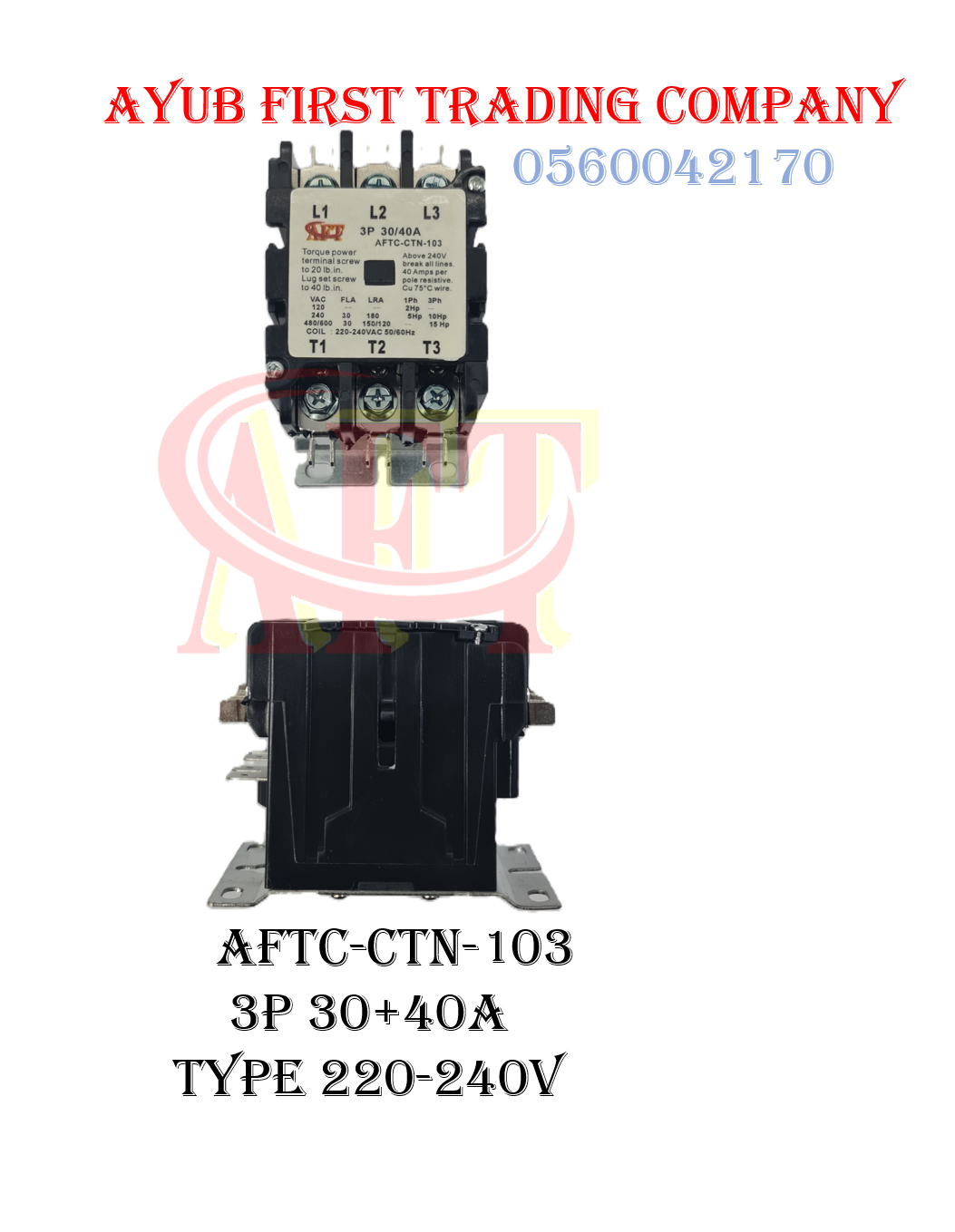

3P,30FLA/40A MAX 220V – 240V AC Contactor : AFTC-CTN-103
This model upgrades the electrical capacity by adding a third power line, shifting from a single-phase system to a 3-Phase Definite Purpose AC Magnetic Contactor.
📋 Technical Specifications
- Model Number:
AFTC-CTN-103 - Number of Poles: 3P (Three-pole configuration for three-phase industrial or commercial systems)
- Current Rating: 30 FLA (Full Load Amps) / 40A Max resistive load per pole.
- Control Coil Voltage: 220V – 240V AC at 50/60 Hz (reverting back to line voltage control).
⚡ Horsepower & Load Breakdown
The faceplate provides exact ratings based on the operating voltage:
- At 240V AC: Handles 30 FLA and up to 180 LRA (Locked Rotor Amps).
- 1-Phase Power: Rated for up to 5 HP (Horsepower).
- 3-Phase Power: Rated for up to 10 HP.
- At 480V / 600V AC: Handles 30 FLA and up to 150/120 LRA.
- 3-Phase Power: Rated for up to 15 HP.
🔧 Installation Mechanics
- Terminals: L1, L2, L3 for 3-phase incoming lines; T1, T2, T3 for the load outputs.
- Terminal Screw Torque: 20 lb-in using copper wire (
Cu 75°C wire). - Lug Set Screw Torque: 40 lb-in.
📞 Contact & Procurement Details
To secure pricing, check stock availability, or coordinate bulk fulfillment across Saudi Arabia, contact the Ayub First Trading Company distribution offices directly:
- Primary Hotline (Call/WhatsApp): +966 56 004 2170
- Email Inquiries: ayubfirsttrading@gmail.com
- Corporate Web Platform: ayubfirsttrading.com
- Regional Warehouses: Showrooms fully stocked in Riyadh (Al Jabrah, Batha Road), Jeddah, Dammam, and Al Khobar (20th Street, Hail Road).
