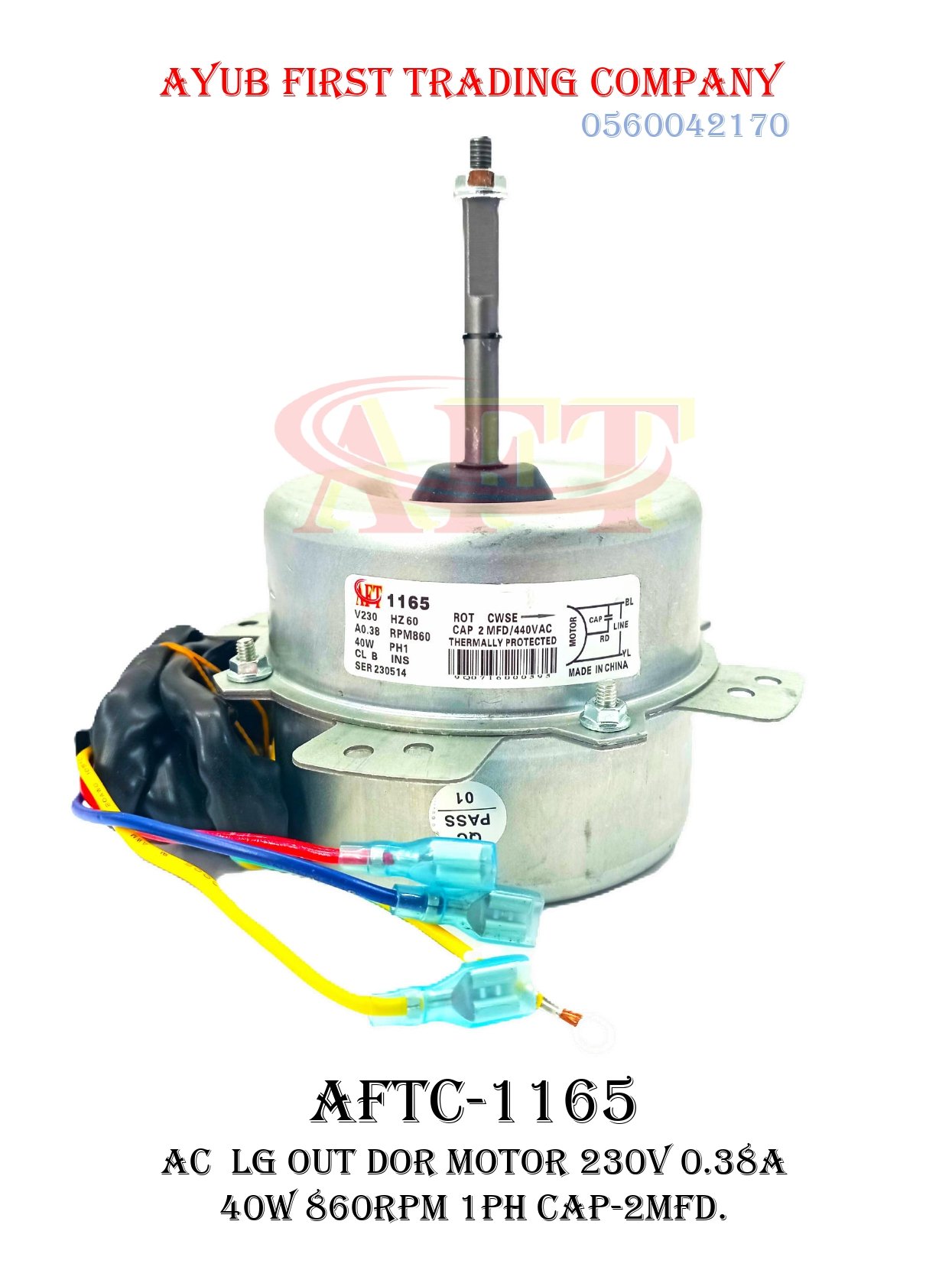

40W. 860 RPM. AC LG Out Dor Fan Motor : AFTC-1165
This is an AC Outdoor Fan Motor featuring an integrated side-mounting flange bracket, manufactured as a replacement unit for LG residential air conditioning condenser units.
Core Identification & Codes
- Product Model: AFTC-1165 / 1165
- Application Description: AC LG Out Dor Motor (Outdoor Condenser Fan Motor)
- Distributor/Vendor: Ayub First Trading Company (Contact: 0560042170)
- Serial Number (SER): 230514
- Country of Origin: Made in China
Electrical Specifications
- Power Output: 40 Watts (40W)
- Operating Voltage: 230V AC (V230)
- Frequency: 60 Hz (HZ 60)
- Phase: 1PH (PH1 / Single Phase)
- Current Draw: 0.38 Amps (A0.38)
- Rotational Speed: 860 RPM (RPM860)
- Insulation Class: Class B (INS CL B)
- Safety Feature: Thermally Protected (Internal switch automatically cuts power if the unit overheats)
Capacitor & Rotation Requirements
- Capacitor Rating: Requires a 2 μF / 440V AC (CAP 2 MFD) run capacitor.
- Rotation Direction: CW-SE (Clockwise facing the Shaft End), also verified by the straight “ROT” direction arrow on the label schematic.
Wiring Configuration
According to the schematic diagram on the motor casing, the multi-wire connection layout maps out as follows:
- Blue (BL): Connected to both the Capacitor and the Line/Power source (CAP + LINE)
- Red (RD): Direct Capacitor Lead (CAP)
- Yellow (YL): Direct Line/Power connection
- 📞 Contact & Procurement Details
To secure pricing, check stock availability, or coordinate bulk fulfillment across Saudi Arabia, contact the Ayub First Trading Company distribution offices directly:
- Primary Hotline (Call/WhatsApp): +966 56 004 2170
- Email Inquiries: ayubfirsttrading@gmail.com
- Corporate Web Platform: ayubfirsttrading.com
- Regional Warehouses: Showrooms fully stocked in Riyadh (Al Jabrah, Batha Road), Jeddah, Dammam, and Al Khobar (20th Street, Hail Road).
Description
Description
This is an AC Outdoor Fan Motor featuring an integrated side-mounting flange bracket, manufactured as a replacement unit for LG residential air conditioning condenser units.
Core Identification & Codes
- Product Model: AFTC-1165 / 1165
- Application Description: AC LG Out Dor Motor (Outdoor Condenser Fan Motor)
- Serial Number (SER): 230514
- Country of Origin: Made in China
Electrical Specifications
- Power Output: 40 Watts (40W)
- Operating Voltage: 230V AC (V230)
- Frequency: 60 Hz (HZ 60)
- Phase: 1PH (PH1 / Single Phase)
- Current Draw: 0.38 Amps (A0.38)
- Rotational Speed: 860 RPM (RPM860)
- Insulation Class: Class B (INS CL B)
- Safety Feature: Thermally Protected (Internal switch automatically cuts power if the unit overheats)
Capacitor & Rotation Requirements
- Capacitor Rating: Requires a 2 μF / 440V AC (CAP 2 MFD) run capacitor.
- Rotation Direction: CW-SE (Clockwise facing the Shaft End), also verified by the straight “ROT” direction arrow on the label schematic.
Wiring Configuration
According to the schematic diagram on the motor casing, the multi-wire connection layout maps out as follows:
- Blue (BL): Connected to both the Capacitor and the Line/Power source (CAP + LINE)
- Red (RD): Direct Capacitor Lead (CAP)
- Yellow (YL): Direct Line/Power connection
- 📞 Contact & Procurement Details
To secure pricing, check stock availability, or coordinate bulk fulfillment across Saudi Arabia, contact the Ayub First Trading Company distribution offices directly:
- Primary Hotline (Call/WhatsApp): +966 56 004 2170
- Email Inquiries: ayubfirsttrading@gmail.com
- Corporate Web Platform: ayubfirsttrading.com
- Regional Warehouses: Showrooms fully stocked in Riyadh (Al Jabrah, Batha Road), Jeddah, Dammam, and Al Khobar (20th Street, Hail Road).
