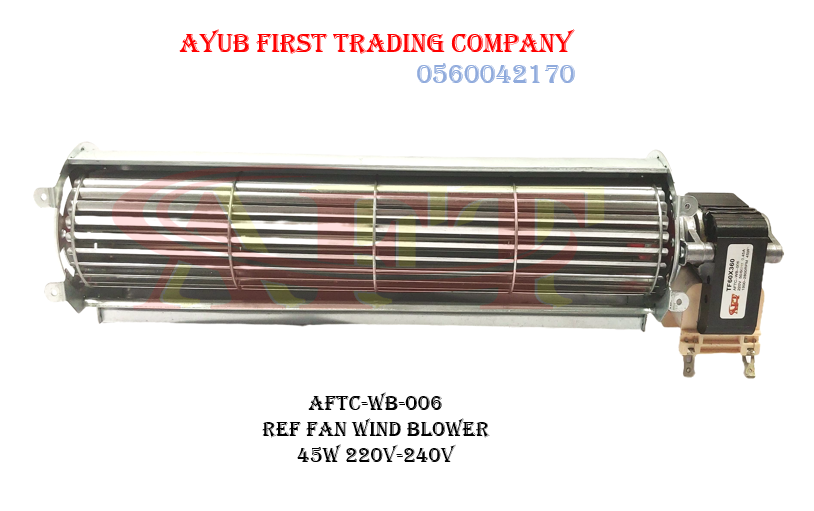

45W. 1800 and 2100 RPM.220V–240V.Refrigeration Cross Flow Fan. WB-006
ر.س1,500.00
This device is an WB-006 Refrigeration Cross Flow Fan (also known as a tangential or wind blower fan), distributed.It is the largest and most powerful model in this specific series, designed for heavy-duty commercial cooling applications.
Technical Specifications
Based on the markings in your image:
- Model Number: WB-006 / TF60X360.
- Power Consumption: 45W.
- Voltage: 220V–240V AC (Standard 50/60Hz).
- Current: Typically rated at 0.38A–0.40A.
- Impeller Dimensions: 60mm diameter x 360mm length (providing the maximum air coverage for this series).
- Rotational Speed: Operates between 1800 and 2100 RPM.
Core Function & Features
- Maximum Airflow: This “drum-style” fan pulls air in across its entire 360mm width and discharges it in a flat, rectangular pattern. This is ideal for cooling very long evaporator coils or creating a powerful “wind barrier” at a commercial door.
- Durable Construction: It features a lightweight aluminum alloy impeller for quiet operation and a galvanized steel housing to resist rust and corrosion in moist refrigerator environments.
- Motor Type: Powered by a high-torque shaded-pole AC motor (mounted on the right side) designed for continuous, reliable operation in high-humidity areas.
- Easy Installation: Equipped with two standard male spade terminals for quick “plug-and-play” electrical connection and pre-drilled side brackets for secure mounting.
Description
Description
This device is an WB-006 Refrigeration Cross Flow Fan (also known as a tangential or wind blower fan), distributed.It is the largest and most powerful model in this specific series, designed for heavy-duty commercial cooling applications.
Technical Specifications
Based on the markings in your image:
- Model Number: WB-006 / TF60X360.
- Power Consumption: 45W.
- Voltage: 220V–240V AC (Standard 50/60Hz).
- Current: Typically rated at 0.38A–0.40A.
- Impeller Dimensions: 60mm diameter x 360mm length (providing the maximum air coverage for this series).
- Rotational Speed: Operates between 1800 and 2100 RPM.
Core Function & Features
- Maximum Airflow: This “drum-style” fan pulls air in across its entire 360mm width and discharges it in a flat, rectangular pattern. This is ideal for cooling very long evaporator coils or creating a powerful “wind barrier” at a commercial door.
- Durable Construction: It features a lightweight aluminum alloy impeller for quiet operation and a galvanized steel housing to resist rust and corrosion in moist refrigerator environments.
- Motor Type: Powered by a high-torque shaded-pole AC motor (mounted on the right side) designed for continuous, reliable operation in high-humidity areas.
- Easy Installation: Equipped with two standard male spade terminals for quick “plug-and-play” electrical connection and pre-drilled side brackets for secure mounting.
