55W. AC Outdoor Fan Motor : AFTC-YDK55-6C3

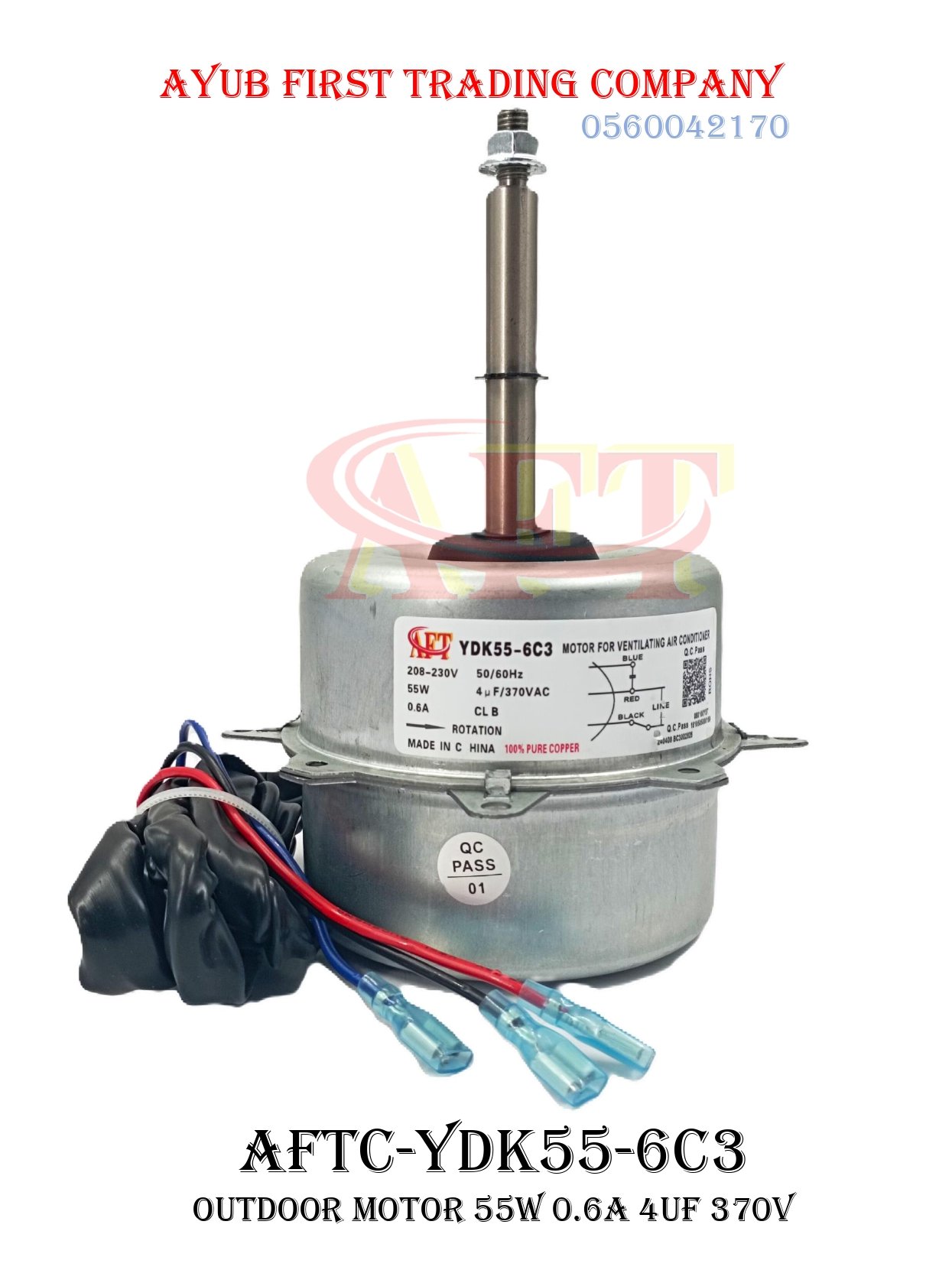

This is an AC Outdoor Fan Motor with integrated side mounting brackets and a threaded shaft with a retaining nut, designed for ventilating air conditioners.
Core Identification & Codes
- Product Part Number: AFTC-YDK55-6C3
- Model Designation: YDK55-6C3
- Distributor/Vendor: Ayub First Trading Company (Contact: 0560042170)
- Quality Control: QC PASS 01
- Material Composition: 100% Pure Copper (stated on label)
- Country of Origin: Made in China
Electrical Specifications
- Power Output/Consumption: 55 Watts (55W)
- Operating Voltage: 208–230V AC
- Frequency: 50/60 Hz
- Current Draw: 0.6 Amps (0.6A)
- Insulation Class: CL B (Class B insulation)
- Rotation Direction: Clockwise facing the shaft (indicated by the straight arrow next to “ROTATION” pointing right on the schematic diagram)
Capacitor Requirements
- Must be paired with a 4.0 μF / 370V AC run capacitor to start and run properly.
Wiring Configuration
According to the schematic diagram on the motor sticker, the terminal wires connect as follows:
- BLUE: Connects to one terminal of the 4 μF run capacitor.
- RED: Connects to the opposite terminal of the run capacitor and maps to Line 1 (Power).
- BLACK: Connects directly to Line 2 (Power).
- Green / Yellow wire: Separate chassis grounding line with a pre-installed ring terminal for safety.
📞 Contact & Procurement Details
To secure pricing, check stock availability, or coordinate bulk fulfillment across Saudi Arabia, contact the Ayub First Trading Company distribution offices directly:
- Primary Hotline (Call/WhatsApp): +966 56 004 2170
- Email Inquiries: ayubfirsttrading@gmail.com
- Corporate Web Platform: ayubfirsttrading.com
- Regional Warehouses: Showrooms fully stocked in Riyadh (Al Jabrah, Batha Road), Jeddah, Dammam, and Al Khobar (20th Street, Hail Road).
Description
Description
This is an AC Outdoor Fan Motor with integrated side mounting brackets and a threaded shaft with a retaining nut, designed for ventilating air conditioners.
Core Identification & Codes
- Product Part Number: AFTC-YDK55-6C3
- Model Designation: YDK55-6C3
- Quality Control: QC PASS 01
- Material Composition: 100% Pure Copper (stated on label)
- Country of Origin: Made in China
Electrical Specifications
- Power Output/Consumption: 55 Watts (55W)
- Operating Voltage: 208–230V AC
- Frequency: 50/60 Hz
- Current Draw: 0.6 Amps (0.6A)
- Insulation Class: CL B (Class B insulation)
- Rotation Direction: Clockwise facing the shaft (indicated by the straight arrow next to “ROTATION” pointing right on the schematic diagram)
Capacitor Requirements
- Must be paired with a 4.0 μF / 370V AC run capacitor to start and run properly.
Wiring Configuration
According to the schematic diagram on the motor sticker, the terminal wires connect as follows:
- BLUE: Connects to one terminal of the 4 μF run capacitor.
- RED: Connects to the opposite terminal of the run capacitor and maps to Line 1 (Power).
- BLACK: Connects directly to Line 2 (Power).
- Green / Yellow wire: Separate chassis grounding line with a pre-installed ring terminal for safety.
📞 Contact & Procurement Details
To secure pricing, check stock availability, or coordinate bulk fulfillment across Saudi Arabia, contact the Ayub First Trading Company distribution offices directly:
- Primary Hotline (Call/WhatsApp): +966 56 004 2170
- Email Inquiries: ayubfirsttrading@gmail.com
- Corporate Web Platform: ayubfirsttrading.com
- Regional Warehouses: Showrooms fully stocked in Riyadh (Al Jabrah, Batha Road), Jeddah, Dammam, and Al Khobar (20th Street, Hail Road).
