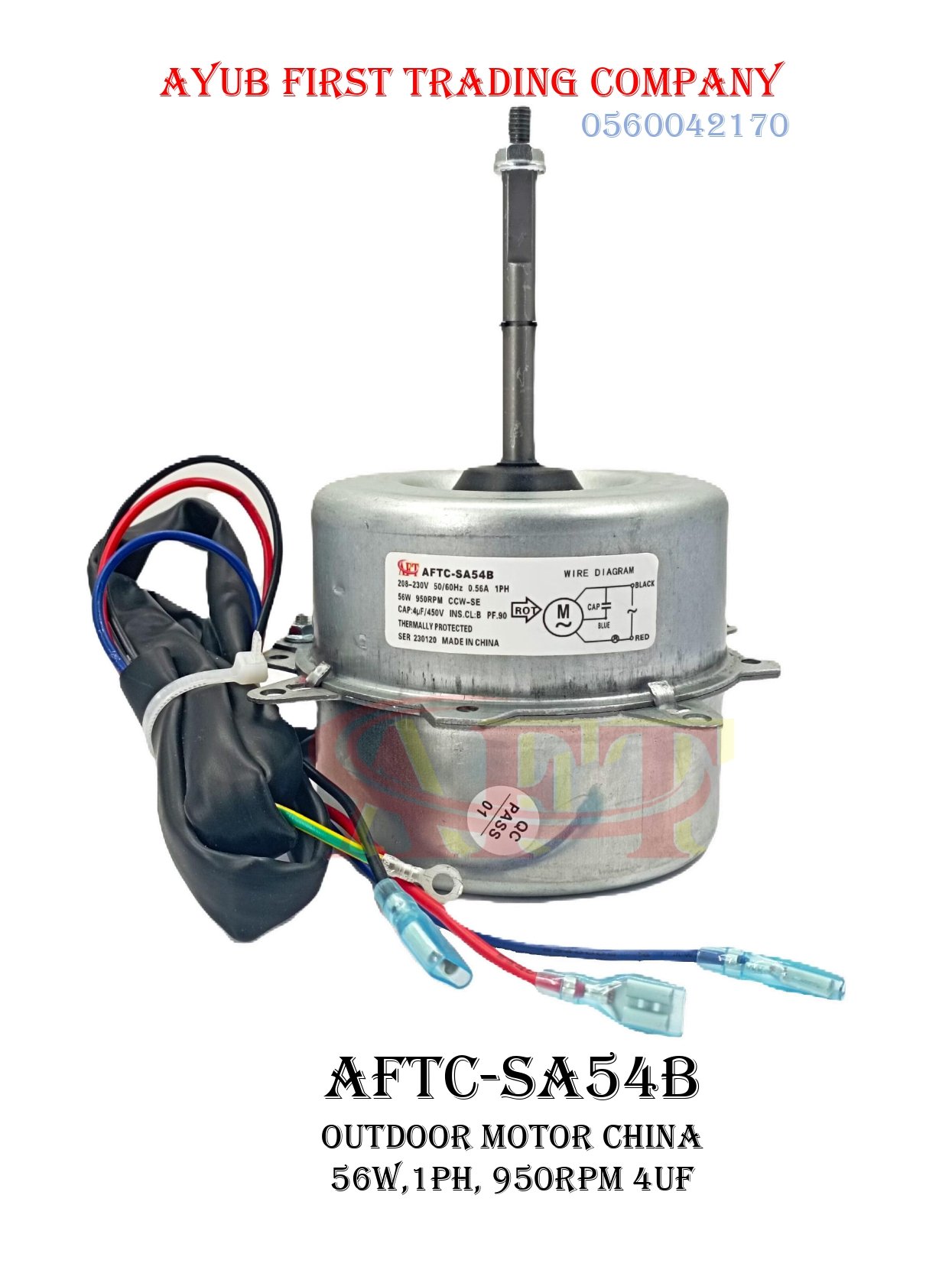

56W.950 RPM AC Outdoor Fan Motor : AFTC-SA54B
This is an AC Outdoor Fan Motor with integrated side ears, used as a replacement condenser fan motor for residential split air conditioning units.
Core Identification & Codes
- Product Model: AFTC-SA54B
- Serial Number: SER 230120
- Origin: Made in China
Electrical Specifications
- Power Output: 56 Watts (56W)
- Operating Voltage: 208–230V AC
- Frequency: 50/60 Hz
- Phase Configuration: 1PH (Single Phase Induction Motor)
- Current Draw: 0.56 Amps (0.56A)
- Rotational Speed: 950 RPM
- Power Factor (PF): 0.90
- Insulation Class: Class B (INS.CL:B)
- Safety Feature: Thermally Protected (T.P. system with automatic shutdown if overheated)
Capacitor & Rotation Requirements
- Capacitor Rating: Requires a 4 μF / 450V AC run capacitor.
- Rotation Direction: CCW-SE (Counter-Clockwise facing the Shaft End), also verified by the “ROT” arrow on the label.
Wiring Configuration
According to the wire diagram printed on the casing label, the connections map out as follows:
- Black: Direct Line / Power connection
- Blue: Connected directly to one side of the 4 μF run capacitor
- Red: Connected to the opposite side of the run capacitor and the common Line power supply
- Green/Yellow (Separate Lead): Ground wire with an eyelet terminal for chassis safety grounding
📞 Contact & Procurement Details
To secure pricing, check stock availability, or coordinate bulk fulfillment across Saudi Arabia, contact the Ayub First Trading Company distribution offices directly:
- Primary Hotline (Call/WhatsApp): +966 56 004 2170
- Email Inquiries: ayubfirsttrading@gmail.com
- Corporate Web Platform: ayubfirsttrading.com
- Regional Warehouses: Showrooms fully stocked in Riyadh (Al Jabrah, Batha Road), Jeddah, Dammam, and Al Khobar (20th Street, Hail Road).
