75/87W. 1PH AC Fan Motor : AFTC-7456HTA-A24S

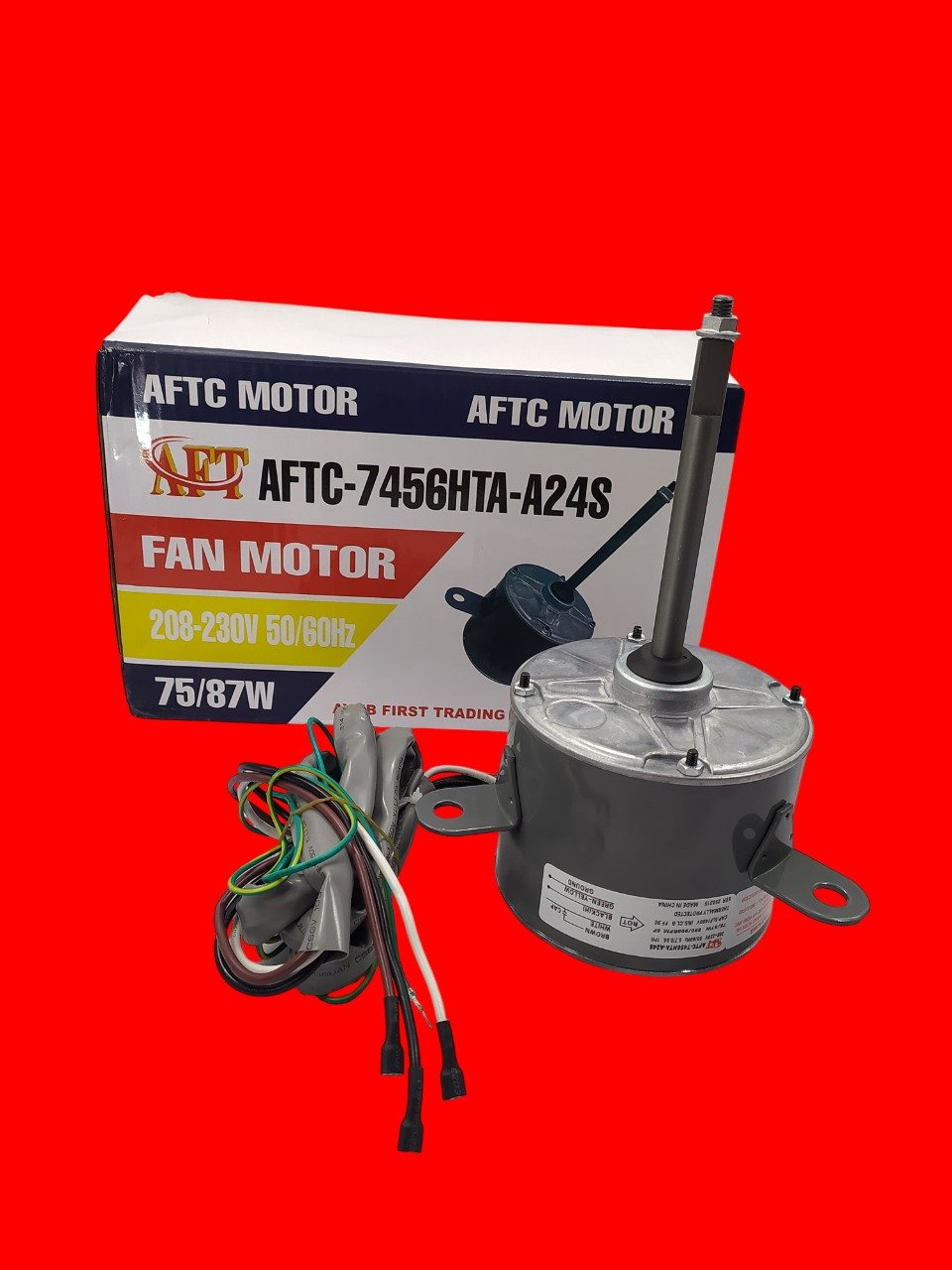

This is an AC Fan Motor with integrated side-mounting brackets and a long, flatted threaded shaft, manufactured as a replacement fan motor for residential split air conditioning systems.
Core Identification & Codes
- Product Part Number: AFTC-7456HTA-A24S
- Model Designation: AFTC-7456HTA-A24S
- Distributor/Vendor: Ayub First Trading Company
- Country of Origin: Made in China
Electrical Specifications
- Power Output/Consumption: 75 Watts / 87 Watts (75/87W dual rating for 50/60Hz operations)
- Operating Voltage: 208V–230V AC
- Frequency: 50/60 Hz
- Phase Configuration: 1PH (Single Phase Induction Motor)
- Safety Feature: Thermally Protected (Internal automatic thermal overload cut-off system)
Capacitor & Rotation Requirements
- Capacitor Rating: Labeled to require a 6.0 μF / 450V AC run capacitor.
- Rotation Direction: Clockwise facing the shaft (indicated by the straight arrow next to “ROT” pointing right on the sticker schematic).
Wiring Configuration
According to the schematic wiring diagram printed on the motor label, the terminal lines map out as follows:
- BROWN: Connects directly to one side of the 6.0 μF run capacitor (CAP).
- WHITE: Connects to the opposite terminal of the run capacitor and bridges directly to Line 1 (Power).
- BLACK (H): High Speed or direct power connection mapping to Line 2 (Power).
- GREEN-YELLOW: Dedicated safety chassis grounding line (GROUND).
📞 Contact & Procurement Details
To secure pricing, check stock availability, or coordinate bulk fulfillment across Saudi Arabia, contact the Ayub First Trading Company distribution offices directly:
- Primary Hotline (Call/WhatsApp): +966 56 004 2170
- Email Inquiries: ayubfirsttrading@gmail.com
- Corporate Web Platform: ayubfirsttrading.com
- Regional Warehouses: Showrooms fully stocked in Riyadh (Al Jabrah, Batha Road), Jeddah, Dammam, and Al Khobar (20th Street, Hail Road).
Description
Description
This is an AC Fan Motor with integrated side-mounting brackets and a long, flatted threaded shaft, manufactured as a replacement fan motor for residential split air conditioning systems.
Core Identification & Codes
- Product Part Number: AFTC-7456HTA-A24S
- Model Designation: AFTC-7456HTA-A24S
- Country of Origin: Made in China
Electrical Specifications
- Power Output/Consumption: 75 Watts / 87 Watts (75/87W dual rating for 50/60Hz operations)
- Operating Voltage: 208V–230V AC
- Frequency: 50/60 Hz
- Phase Configuration: 1PH (Single Phase Induction Motor)
- Safety Feature: Thermally Protected (Internal automatic thermal overload cut-off system)
Capacitor & Rotation Requirements
- Capacitor Rating: Labeled to require a 6.0 μF / 450V AC run capacitor.
- Rotation Direction: Clockwise facing the shaft (indicated by the straight arrow next to “ROT” pointing right on the sticker schematic).
Wiring Configuration
According to the schematic wiring diagram printed on the motor label, the terminal lines map out as follows:
- BROWN: Connects directly to one side of the 6.0 μF run capacitor (CAP).
- WHITE: Connects to the opposite terminal of the run capacitor and bridges directly to Line 1 (Power).
- BLACK (H): High Speed or direct power connection mapping to Line 2 (Power).
- GREEN-YELLOW: Dedicated safety chassis grounding line (GROUND).
📞 Contact & Procurement Details
To secure pricing, check stock availability, or coordinate bulk fulfillment across Saudi Arabia, contact the Ayub First Trading Company distribution offices directly:
- Primary Hotline (Call/WhatsApp): +966 56 004 2170
- Email Inquiries: ayubfirsttrading@gmail.com
- Corporate Web Platform: ayubfirsttrading.com
- Regional Warehouses: Showrooms fully stocked in Riyadh (Al Jabrah, Batha Road), Jeddah, Dammam, and Al Khobar (20th Street, Hail Road).
