75 W. 1050/1200 RPM Double-Shaft Window Air Conditioner Fan Motor : AFTC-A2922GB010

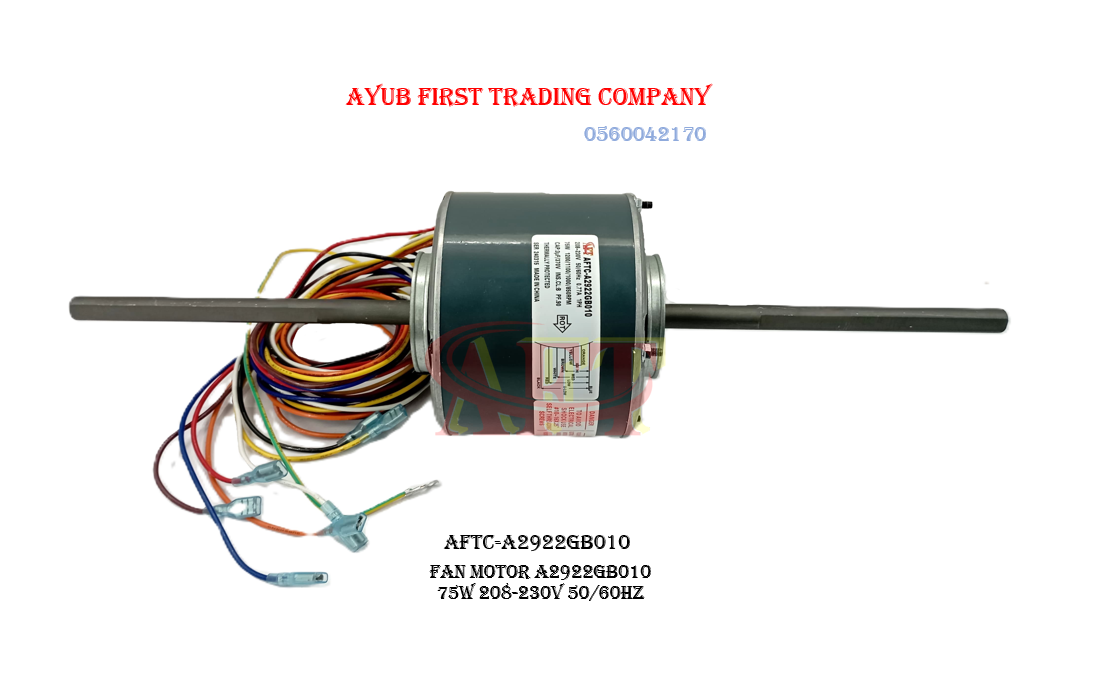

This is a Double-Shaft Window Air Conditioner Fan Motor manufactured as a replacement unit for various window AC configurations. Below are the comprehensive technical specifications and wiring details extracted directly from the product label:
Core Identification & Codes
-
- Product Part Number: AFTC-A2922GB010
- Application Description: Fan Motor A2922GB010 75W 208-230V 50/60HZ
- Motor Design: Dual-shaft setup (simultaneously driving the internal blower wheel and the external condenser fan blade)
- Country of Origin: Made in China
Electrical Specifications
-
- Power Output: 75 Watts
- Operating Voltage: 208V–230V AC
- Frequency: 50/60Hz
- Current Draw: 0.85 Amps
- Phase Configuration: 1PH (Single-Phase Induction Motor)
- Rotational Speed: 1050/1200 RPM / 3SPD (3 Speeds)
- Rotation Direction: CCW LE (Counter-Clockwise facing the Lead End)
- Insulation Rating: INS CL B
- Power Factor: PF .90
- Safety Feature: Thermally Protected (T.P. system with automatic reset)
Capacitor Requirements
-
- Must be paired with a 6.0 μF / 370V AC (or 450V AC) run capacitor to ensure optimal torque and prevent overheating.
Wiring Configuration & Speed Control
The schematic diagram printed on the motor body dictates the following line connections:
-
- Red: Capacitor Lead (CAP)
- White: Capacitor Lead (CAP)
- Black: High Speed Line (HI)
- Brown: Medium Speed Line (M)
- Blue: Low Speed Line (L)
- Green/Yellow (with ring terminal): Ground connection
📞 Contact & Procurement Details
To secure pricing, check stock availability, or coordinate bulk fulfillment across Saudi Arabia, contact the Ayub First Trading Company distribution offices directly:
- Primary Hotline (Call/WhatsApp): +966 56 004 2170
- Email Inquiries: ayubfirsttrading@gmail.com
- Corporate Web Platform: ayubfirsttrading.com
- Regional Warehouses: Showrooms fully stocked in Riyadh (Al Jabrah, Batha Road), Jeddah, Dammam, and Al Khobar (20th Street, Hail Road).
Description
Description
This is a Double-Shaft Window Air Conditioner Fan Motor manufactured as a replacement unit for various window AC configurations. Below are the comprehensive technical specifications and wiring details extracted directly from the product label:
Core Identification & Codes
-
- Product Part Number: AFTC-A2922GB010
- Application Description: Fan Motor A2922GB010 75W 208-230V 50/60HZ
- Motor Design: Dual-shaft setup (simultaneously driving the internal blower wheel and the external condenser fan blade)
- Country of Origin: Made in China
Electrical Specifications
-
- Power Output: 75 Watts
- Operating Voltage: 208V–230V AC
- Frequency: 50/60Hz
- Current Draw: 0.85 Amps
- Phase Configuration: 1PH (Single-Phase Induction Motor)
- Rotational Speed: 1050/1200 RPM / 3SPD (3 Speeds)
- Rotation Direction: CCW LE (Counter-Clockwise facing the Lead End)
- Insulation Rating: INS CL B
- Power Factor: PF .90
- Safety Feature: Thermally Protected (T.P. system with automatic reset)
Capacitor Requirements
-
- Must be paired with a 6.0 μF / 370V AC (or 450V AC) run capacitor to ensure optimal torque and prevent overheating.
Wiring Configuration & Speed Control
The schematic diagram printed on the motor body dictates the following line connections:
-
- Red: Capacitor Lead (CAP)
- White: Capacitor Lead (CAP)
- Black: High Speed Line (HI)
- Brown: Medium Speed Line (M)
- Blue: Low Speed Line (L)
- Green/Yellow (with ring terminal): Ground connection
📞 Contact & Procurement Details
To secure pricing, check stock availability, or coordinate bulk fulfillment across Saudi Arabia, contact the Ayub First Trading Company distribution offices directly:
- Primary Hotline (Call/WhatsApp): +966 56 004 2170
- Email Inquiries: ayubfirsttrading@gmail.com
- Corporate Web Platform: ayubfirsttrading.com
- Regional Warehouses: Showrooms fully stocked in Riyadh (Al Jabrah, Batha Road), Jeddah, Dammam, and Al Khobar (20th Street, Hail Road).
