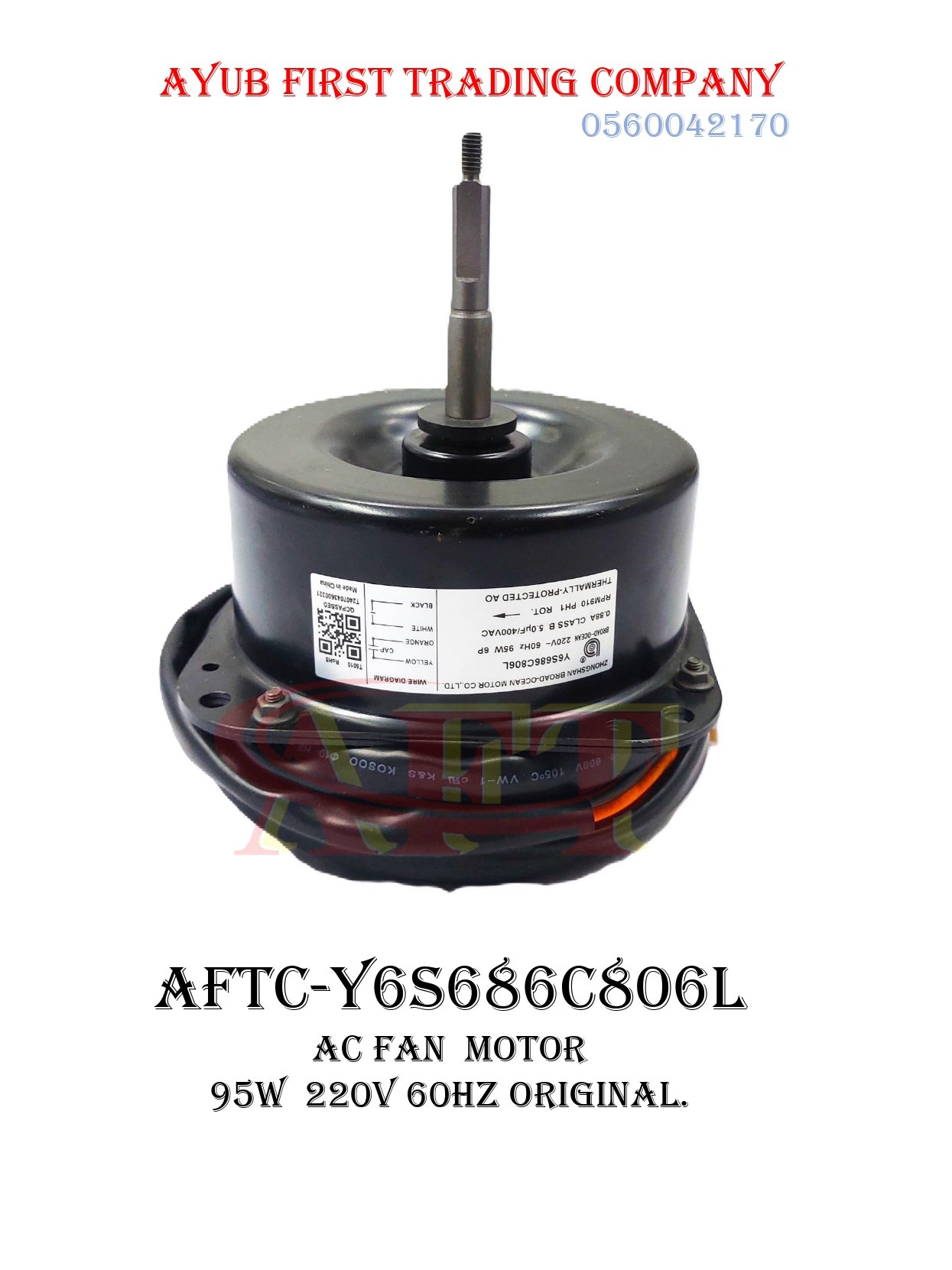

95W. 910 RPM AC Fan Motor : AFTC-Y6S686C806L
This is an AC Fan Motor with an integrated peripheral mounting flange bracket, manufactured by Zhongshan Broad-Ocean Motor Co., Ltd. and supplied as a high-quality replacement part for residential split air conditioning systems.
Core Identification & Codes
- Product Part Number: AFTC-Y6S686C806L
- Model Designation: Y6S686C806L
- Distributor/Vendor: Ayub First Trading Company (Contact: 0560042170)
- Manufacturer: Zhongshan Broad-Ocean Motor Co., Ltd.
- Compliance & Quality: RoHS certified, QC PASSED
- Country of Origin: Made in China
Electrical Specifications
- Power Output/Consumption: 95 Watts (95W)
- Operating Voltage: 220V AC
- Frequency: 60 Hz
- Current Draw: 0.88 Amps (0.88A)
- Phase/Poles Configuration: PH1 (Single Phase Induction Motor) / 6P (6 Poles)
- Rotational Speed: 910 RPM (RPM910)
- Insulation Rating: CLASS B
- Safety Feature: Thermally-Protected AO (Internal automatic thermal overload cut-off system)
Capacitor & Rotation Requirements
- Capacitor Rating: Must be paired with a 5.0 μF / 400V AC run capacitor.
- Rotation Direction: Counter-Clockwise facing the shaft (indicated by the straight arrow next to “ROT.” pointing left on the sticker schematic).
Wiring Configuration
According to the schematic wire diagram printed on the motor label, the terminal lines map out as follows:
- YELLOW (Yellow wire): Connects to one terminal of the 5.0 μF run capacitor (CAP).
- ORANGE (Orange wire): Connects to the opposite terminal of the run capacitor and bridges directly to Line 1 (Power).
- WHITE (White wire): Auxiliary or multi-tap circuit path.
- BLACK (Black wire): Connects directly to Line 2 (Power) through the internal thermal protection link.
- Green/Yellow Wire: Separate safety chassis grounding line equipped with a ring terminal.
📞 Contact & Procurement Details
To secure pricing, check stock availability, or coordinate bulk fulfillment across Saudi Arabia, contact the Ayub First Trading Company distribution offices directly:
- Primary Hotline (Call/WhatsApp): +966 56 004 2170
- Email Inquiries: ayubfirsttrading@gmail.com
- Corporate Web Platform: ayubfirsttrading.com
- Regional Warehouses: Showrooms fully stocked in Riyadh (Al Jabrah, Batha Road), Jeddah, Dammam, and Al Khobar (20th Street, Hail Road).
Description
Description
This is an AC Fan Motor with an integrated peripheral mounting flange bracket, manufactured by Zhongshan Broad-Ocean Motor Co., Ltd. and supplied as a high-quality replacement part for residential split air conditioning systems.
Core Identification & Codes
- Product Part Number: AFTC-Y6S686C806L
- Model Designation: Y6S686C806L
- Manufacturer: Zhongshan Broad-Ocean Motor Co., Ltd.
- Compliance & Quality: RoHS certified, QC PASSED
- Country of Origin: Made in China
Electrical Specifications
- Power Output/Consumption: 95 Watts (95W)
- Operating Voltage: 220V AC
- Frequency: 60 Hz
- Current Draw: 0.88 Amps (0.88A)
- Phase/Poles Configuration: PH1 (Single Phase Induction Motor) / 6P (6 Poles)
- Rotational Speed: 910 RPM (RPM910)
- Insulation Rating: CLASS B
- Safety Feature: Thermally-Protected AO (Internal automatic thermal overload cut-off system)
Capacitor & Rotation Requirements
- Capacitor Rating: Must be paired with a 5.0 μF / 400V AC run capacitor.
- Rotation Direction: Counter-Clockwise facing the shaft (indicated by the straight arrow next to “ROT.” pointing left on the sticker schematic).
Wiring Configuration
According to the schematic wire diagram printed on the motor label, the terminal lines map out as follows:
- YELLOW (Yellow wire): Connects to one terminal of the 5.0 μF run capacitor (CAP).
- ORANGE (Orange wire): Connects to the opposite terminal of the run capacitor and bridges directly to Line 1 (Power).
- WHITE (White wire): Auxiliary or multi-tap circuit path.
- BLACK (Black wire): Connects directly to Line 2 (Power) through the internal thermal protection link.
- Green/Yellow Wire: Separate safety chassis grounding line equipped with a ring terminal.
📞 Contact & Procurement Details
To secure pricing, check stock availability, or coordinate bulk fulfillment across Saudi Arabia, contact the Ayub First Trading Company distribution offices directly:
- Primary Hotline (Call/WhatsApp): +966 56 004 2170
- Email Inquiries: ayubfirsttrading@gmail.com
- Corporate Web Platform: ayubfirsttrading.com
- Regional Warehouses: Showrooms fully stocked in Riyadh (Al Jabrah, Batha Road), Jeddah, Dammam, and Al Khobar (20th Street, Hail Road).
