Carrier Air Conditioner Wired Wall Thermostat & Internal Main PCB Control Board Assembly Kit : AFTC-CTTD-3973

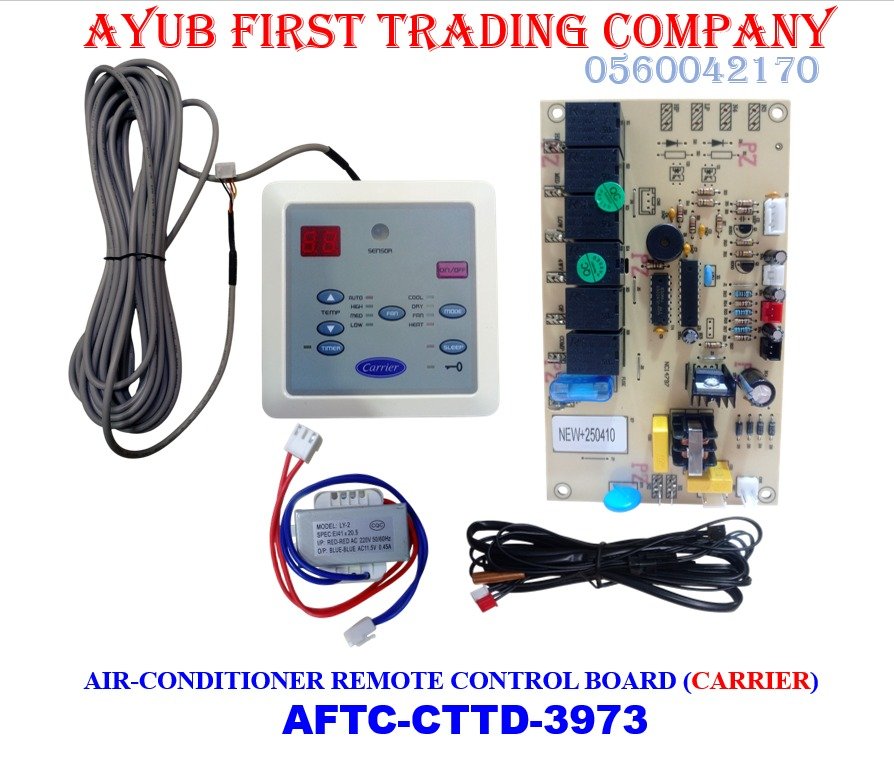

This image shows the complete Carrier Air Conditioner Wired Wall Thermostat & Internal Main PCB Control Board Assembly Kit, distributed by Ayub First Trading Company in Saudi Arabia.
📋 Technical Specifications
| Feature [1, 2, 3] | Specification Details |
|---|---|
| Brand Compatibility | Designed specifically for Carrier Ducted Split, Package, and Central Air Conditioners |
| Full Assembly Code | AFTC-CTTD-3973 |
| Relay Speeds | 4 Speed Blower Configuration (Auto, High, Medium, Low) |
| Voltage Parameters | Input: 220V AC 50/60Hz | Output: Low-voltage 24V DC logic line |
| PCB Serial Marker | NEW+250410 |
🔍 Operational Function Review
- on/off: Main power switch to kickstart or shut down the connected central unit.
- mode: Adjusts running conditions across COOL, DRY, FAN, or HEAT profiles.
- TEMP (▲ / ▼): Changes targeted temperature values in 1° intervals.
- FAN: Steps through manual blower speeds or places the fan into automatic regulation mode.
- SLEEP / Lock (🔑): Restricts button accessibility to prevent unauthorized adjustments or engages energy-efficient sleep timers.
📦 Complete Kit Breakdown
- Wired Wall Interface / Thermostat (Top Left): Features a dual-digit red LED screen to adjust temperature, configure fan rates, and diagnose system error codes.
- Main Indoor PCB Control Board (Right): The main computer board containing five heavy-duty black relays (to control fan speeds and compressor cycling), capacitors, transformer coils, and jumpers.
- Power Step-Down Transformer (Bottom Left): A low-voltage transformer block labeled Model: CF2. It converts high-voltage mainline current down to a safe 220V/50Hz to 24V output to power the motherboard and thermostat safely.
- Ambient & Coil Thermistor Sensors (Bottom Right): Dual copper-head and plastic-coated temperature sensor cables that plug into the main board to read exact room and indoor coil temperatures.
- Heavy-Duty Signal Cable (Top Left): A thick, grey, multi-core shielded cable that safely routes data signals between the wall thermostat and the indoor motherboard over long distances.
- 📞 Contact & Procurement Details
To secure pricing, check stock availability, or coordinate bulk fulfillment across Saudi Arabia, contact the Ayub First Trading Company distribution offices directly:
- Primary Hotline (Call/WhatsApp): +966 56 004 2170
- Email Inquiries: ayubfirsttrading@gmail.com
- Corporate Web Platform: ayubfirsttrading.com
- Regional Warehouses: Showrooms fully stocked in Riyadh (Al Jabrah, Batha Road), Jeddah, Dammam, and Al Khobar (20th Street, Hail Road).
