DA31-00287B, ZWF-30-3 REF. BLOWER BLACK FAN MOTOR : AFTC-RF-004
- Common Model Numbers: These axial fans are often interchangeable with models like DA31-00287B, ZWF-30-3, or GW10C12MS1BA depending on the specific refrigerator brand REF. BLOWER FAN MOTOR (RF-004)
- Voltage: DC 12V.
- Power Consumption: Labeled as 1.2W (Note: some high-output versions of the same frame size go up to 2.5W–3W)
- Primary Application: Designed for use in Samsung, Haier, Hisense, and LG refrigerators .
- Connector: Features a 4-pin/4-wire white plug for power and speed feedback [2, 10].
- Dimensions: Standard 120mm x 120mm x 25mm (approx. 4.7 x 4.7 inches).
Description
Description

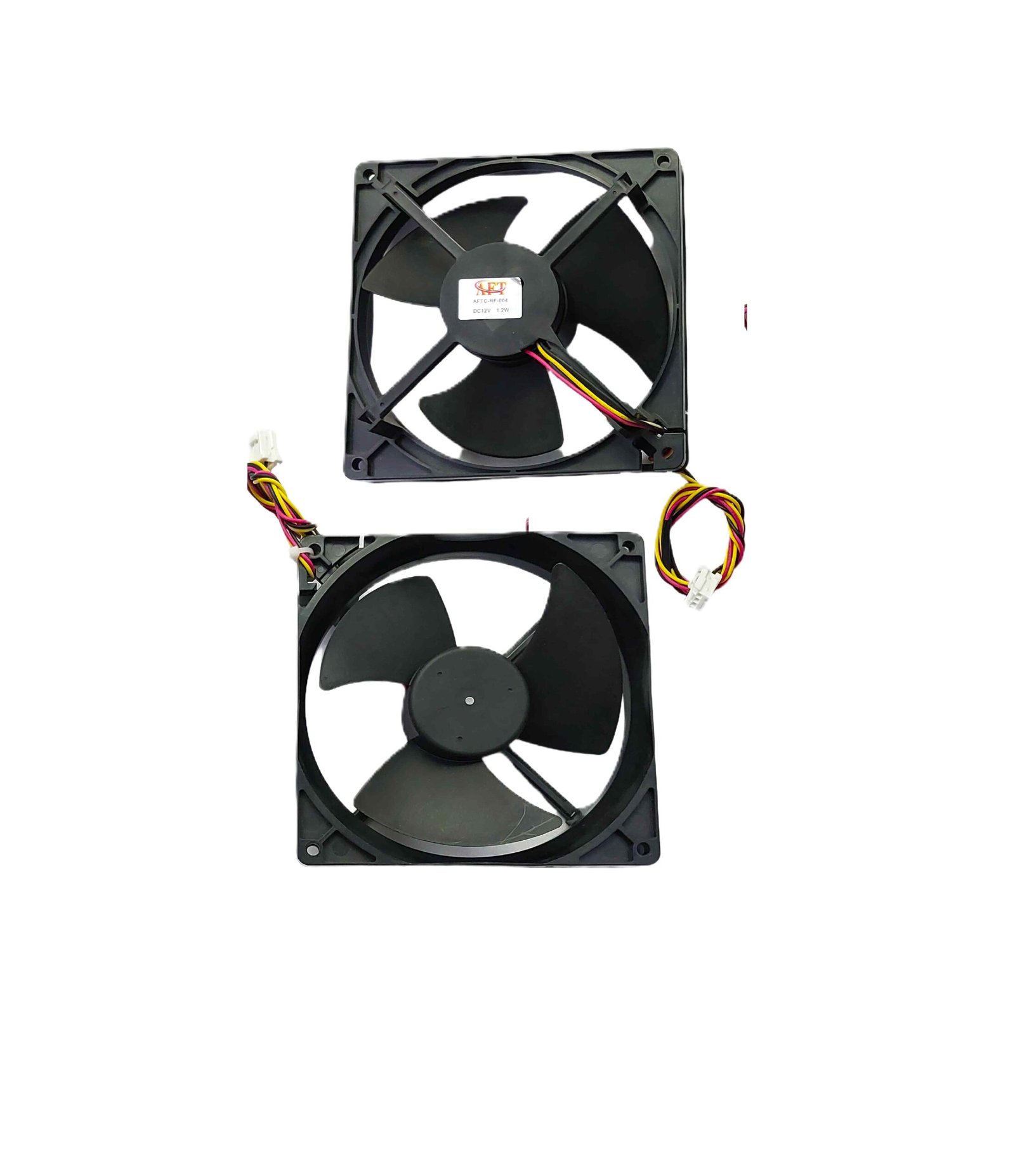

This image features the AFTC-RF-004 Refrigerator Cooling Fan, distributed by Ayub First Trading Company. This axial-style fan is a standard component used for air circulation in various refrigeration and electronic cooling applications.
Technical Specifications
- Model Identification: AFTC-RF-004.
- Electrical Rating: DC 12V with a power draw of 1.2W.
- Design: A square-frame axial fan featuring 3 wide blades designed for high-volume airflow at low noise levels.
- Wiring: Includes a pre-installed 3-wire (Yellow, Red, Black) harness with a standard white plastic clip connector for easy installation.
- Construction: Made from durable, heat-resistant black plastic.
Application & Compatibility
This fan is versatile and used across several industries:
- Refrigerators: Often used as an evaporator fan in brands like Haier, Samsung, and Whirlpool to circulate cold air throughout the unit.
- Electronics: Suitable for cooling computer towers, server racks, or power supply units that require 12V DC power.
- Wine Coolers: Frequently used in small cooling appliances to maintain steady internal temperatures.
Where to Purchase
The part is available in Saudi Arabia through Ayub First Trading Company.
-
- Contact Number: 0560042170 (WhatsApp available).
- Branch Locations: They have physical storefronts in Riyadh, Dammam, and Jeddah.
