TMDE706SA1 DAEWOO. 127V/220V. REF.TIMER : AFTC-REFT-002-1

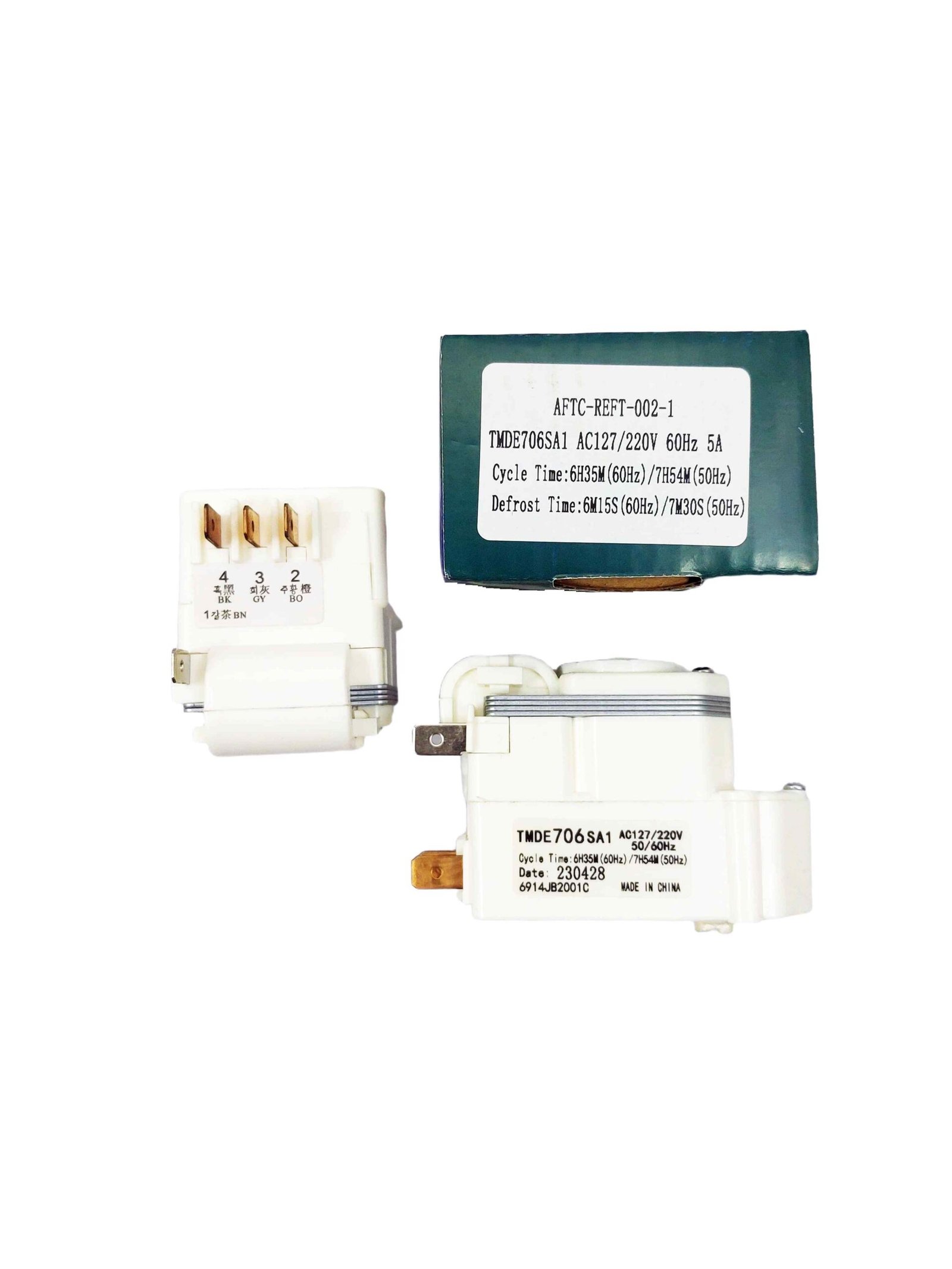

Here are the full details for the refrigerator defrost timer shown in the image:
Product Identification Number..
- Model Number: REF.TIMER AFTC-REFT-002-1
-
- Part Number (on unit): TMDE706SA1 (References: 6914JB2001D)
- Compatible Brand: Specifically for Daewoo refrigerators.
Technical Specifications- Dual Voltage: AC 127V / 220V (Highly versatile for different power grids).
- Frequency: 50/60Hz.
- Amperage: 5A.
- Cycle Timing (60Hz): 6 hours and 35 minutes.
- Cycle Timing (50Hz): 7 hours and 54 minutes.
- Defrost Timing (60Hz): 6 minutes and 15 seconds.
- Defrost Timing (50Hz): 7 minutes and 30 seconds.
Physical & Design Features- Construction: White plastic housing with integrated metal core for the internal motor.
- Terminals: Standard 4-pin male spade configuration (labeled 1, 2, 3, 4).
- Adjustment Dial: Features a small manual advancement knob on top to manually trigger or exit the defrost cycle.
- Origin: Made in China.
Description
Description
Here are the full details for the refrigerator defrost timer shown in the image:
Product Identification Number..
- Model Number: REF.TIMER AFTC-REFT-002-1
-
- Part Number (on unit): TMDE706SA1 (References: 6914JB2001D)
- Compatible Brand: Specifically for Daewoo refrigerators.
Technical Specifications- Dual Voltage: AC 127V / 220V (Highly versatile for different power grids).
- Frequency: 50/60Hz.
- Amperage: 5A.
- Cycle Timing (60Hz): 6 hours and 35 minutes.
- Cycle Timing (50Hz): 7 hours and 54 minutes.
- Defrost Timing (60Hz): 6 minutes and 15 seconds.
- Defrost Timing (50Hz): 7 minutes and 30 seconds.
Physical & Design Features- Construction: White plastic housing with integrated metal core for the internal motor.
- Terminals: Standard 4-pin male spade configuration (labeled 1, 2, 3, 4).
- Adjustment Dial: Features a small manual advancement knob on top to manually trigger or exit the defrost cycle.
- Origin: Made in China.
