FCD-270A18A, 5W, Samsung Inlet Magnetic Solenoid Valve : AFTC-IV-007

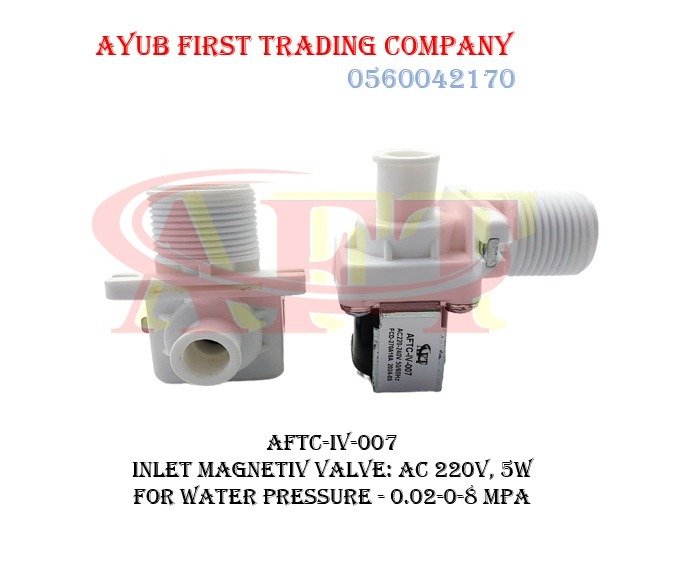

This image features the AFTC-IV-007, a single-way Inlet Magnetic Solenoid Valve primarily used in automatic washing machines, including models from Samsung. This component controls the water intake based on signals from the machine’s control board.
⚙️ Technical Specifications
- Model Number: AFTC-IV-007
- Part Reference: FCD-270A18A
- Operating Voltage: AC 220V–240V
- Power Consumption: 5W
- Working Pressure Range: 0.02–0.8 MPa
- Frequency: 50/60Hz
- Valve Type: Single-way (1 inlet, 1 outlet), normally closed (NC).
- Inlet Thread: G3/4 (approx. 26mm).
- Outlet Diameter: 12mm.📞 Contact & Procurement Details
To secure pricing, check stock availability, or coordinate bulk fulfillment across Saudi Arabia, contact the Ayub First Trading Company distribution offices directly:
- Primary Hotline (Call/WhatsApp): +966 56 004 2170
- Email Inquiries: ayubfirsttrading@gmail.com
- Corporate Web Platform: ayubfirsttrading.com
- Regional Warehouses: Showrooms fully stocked in Riyadh (Al Jabrah, Batha Road), Jeddah, Dammam, and Al Khobar (20th Street, Hail Road).
Description
Description
This image features the AFTC-IV-007, a single-way Inlet Magnetic Solenoid Valve primarily used in automatic washing machines, including models from Samsung. This component controls the water intake based on signals from the machine’s control board.
⚙️ Technical Specifications
- Model Number: AFTC-IV-007
- Part Reference: FCD-270A18A
- Operating Voltage: AC 220V–240V
- Power Consumption: 5W
- Working Pressure Range: 0.02–0.8 MPa
- Frequency: 50/60Hz
- Valve Type: Single-way (1 inlet, 1 outlet), normally closed (NC).
- Inlet Thread: G3/4 (approx. 26mm).
- Outlet Diameter: 12mm.📞 Contact & Procurement Details
To secure pricing, check stock availability, or coordinate bulk fulfillment across Saudi Arabia, contact the Ayub First Trading Company distribution offices directly:
- Primary Hotline (Call/WhatsApp): +966 56 004 2170
- Email Inquiries: ayubfirsttrading@gmail.com
- Corporate Web Platform: ayubfirsttrading.com
- Regional Warehouses: Showrooms fully stocked in Riyadh (Al Jabrah, Batha Road), Jeddah, Dammam, and Al Khobar (20th Street, Hail Road).
