Hitachi 4-Pin washing machine wash timer: AFTC-WMT-006

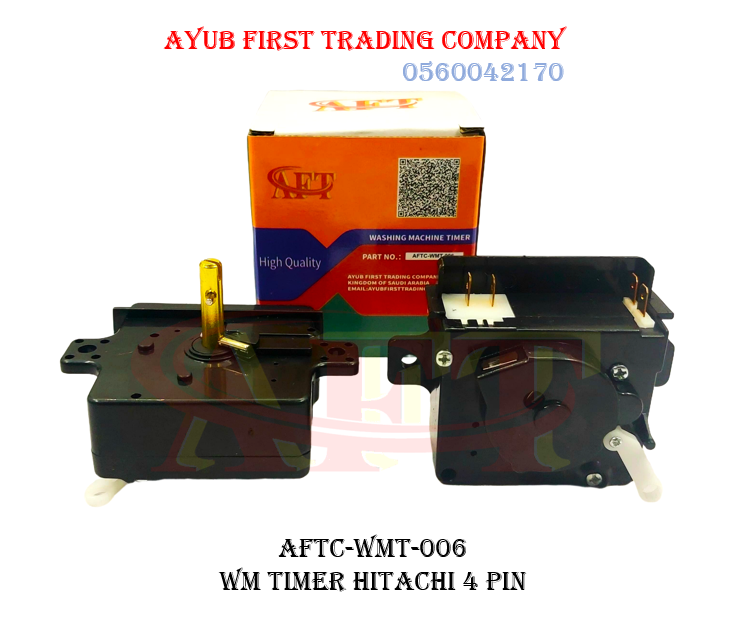

This image shows a Hitachi 4-Pin washing machine wash timer (Part Number: AFTC-WMT-006), specifically designed as a replacement part for Hitachi semi-automatic washing machines.

⚙️ Technical Specifications

Model: AFTC-WMT-006 (WM TIMER HITACHI 4 PIN).
Connection Type: 4-pin male spade terminals (faston connectors) rather than a wire harness.
Housing: Solid black plastic body (non-transparent).
Control: Single gold-colored metal D-shaft for the timer knob.
Mounting: Features standard mounting “ears” with screw holes for secure installation in the control panel.

🔌 Typical Terminal Layout

While specific wiring depends on your machine’s model, a 4-pin Hitachi timer generally utilizes the terminals as follows:

Pin 1 (Line/Common): Main power input from the safety switch or fuse.
Pin 2 (Clockwise): Power output to the wash motor for one direction.
Pin 3 (Counter-Clockwise): Power output to the wash motor for the opposite direction.
Pin 4 (Buzzer): Provides power to the “cycle end” buzzer once the timer reaches zero.
📞 Contact & Procurement Details
To secure pricing, check stock availability, or coordinate bulk fulfillment across Saudi Arabia, contact the Ayub First Trading Company distribution offices directly:
- Primary Hotline (Call/WhatsApp): +966 56 004 2170
- Email Inquiries: ayubfirsttrading@gmail.com
- Corporate Web Platform: ayubfirsttrading.com
- Regional Warehouses: Showrooms fully stocked in Riyadh (Al Jabrah, Batha Road), Jeddah, Dammam, and Al Khobar (20th Street, Hail Road).
