POTENTIAL 336 VAC REFRIGERATOR RELEY : AFTC-RY-113

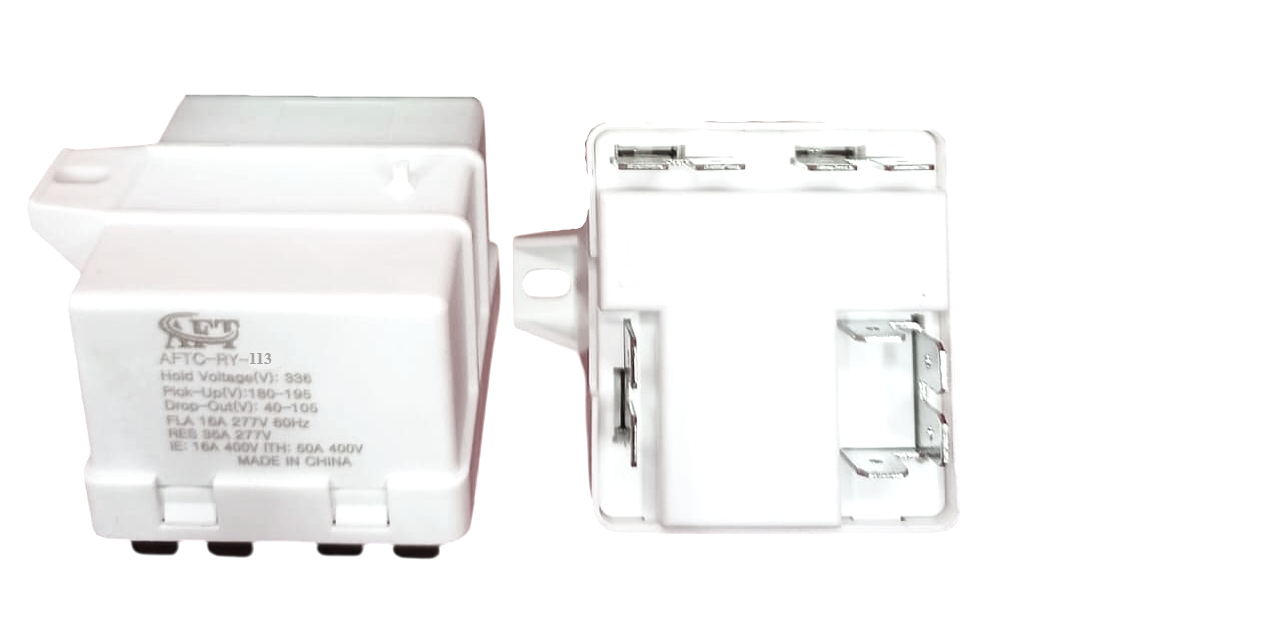

The image displays an Relay, a critical electrical component used to start the compressor in household refrigerators and freezers.
Technical Specifications…..
Model Number: RY-113
| Feature | Specification |
|---|---|
| Pick-Up Voltage | 180V – 195V |
| Drop-Out Voltage | 40V – 105V |
| Potential Hold Voltage | 336V |
| Full Load Amperage (FLA) | 16A at 277V (60Hz) |
| Resistive Amperage (RES) | 35A at 277V |
| IE (Rated Current) | 16A at 400V |
| ITH (Thermal Current) | 50A |
| Maximum Voltage | 4010V~ (Insulation/Dielectric strength) |
Key Features
- Operating Principle: Senses voltage across the motor’s start winding to disconnect the start capacitor once the motor reaches sufficient speed.
- Durability: Features a high-quality composite housing designed to withstand harsh temperatures and demanding electrical environments.
- Terminal Configuration: Typically includes standard quick-connect terminals (1, 2, and 5) for wiring the start capacitor and motor winding
Description
Description
The image displays an Relay, a critical electrical component used to start the compressor in household refrigerators and freezers.
Technical Specifications…..
Model Number: AFTC-RY-113
| Feature | Specification |
|---|---|
| Pick-Up Voltage | 180V – 195V |
| Drop-Out Voltage | 40V – 105V |
| Potential Hold Voltage | 336V |
| Full Load Amperage (FLA) | 16A at 277V (60Hz) |
| Resistive Amperage (RES) | 35A at 277V |
| IE (Rated Current) | 16A at 400V |
| ITH (Thermal Current) | 50A |
| Maximum Voltage | 4010V~ (Insulation/Dielectric strength) |
Key Features..
- Operating Principle: Senses voltage across the motor’s start winding to disconnect the start capacitor once the motor reaches sufficient speed.
- Durability: Features a high-quality composite housing designed to withstand harsh temperatures and demanding electrical environments.
- Terminal Configuration: Typically includes standard quick-connect terminals (1, 2, and 5) for wiring the start capacitor and motor winding.
