PZ90H1Y-3, 1/5 HP, R600a Refrigeration Compressor : AFTC-RCP-034.
Original price was: ر.س260.00.ر.س230.00Current price is: ر.س230.00.
PZ130H1A-M, 1/3 HP, R600a Refrigeration Compressor : AFTC-RCP-036
Original price was: ر.س300.00.ر.س270.00Current price is: ر.س270.00.
-10%
PZ110H1B-P, 1/4 HP, R600a Refrigeration Compressor : AFTC-RCP-035
Original price was: ر.س290.00.ر.س260.00Current price is: ر.س260.00.

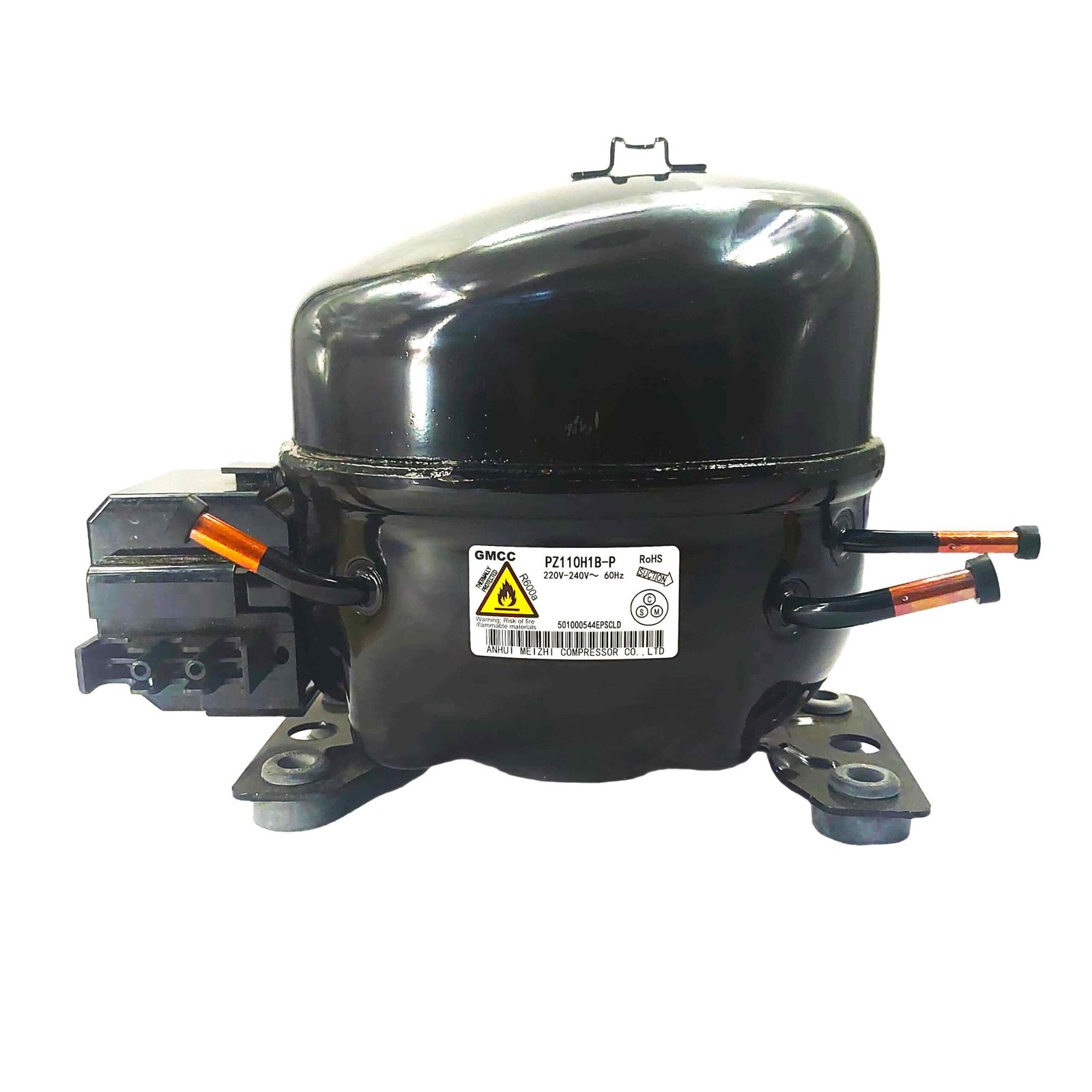

Based on the product label and engineering data sheets from Anhui Meizhi Compressor Co., Ltd., here are the full technical and commercial specifications for this domestic refrigeration compressor:
📊 Core Technical Specifications
- Brand: GMCC (Anhui Meizhi Compressor Co., Ltd. / Toshiba technology partnership).
- Model Number: PZ110H1B-P (H1A platform series).
- AFTC Stock Code: AFTC-RCP-035.
- Power Rating: 1/4 HP (Horsepower) — designed for high-capacity domestic refrigerators.
- Refrigerant Gas Compatibility: R600a (Isobutane) — an eco-friendly, low environmental impact hydrocarbon refrigerant.
- Power Supply Configuration: 220V – 240V at 60Hz (1-Phase, AC).
- Displacement / Stroke Volume: 11.0 cc (Cubic Centimeters).
- Cooling Capacity: Approximately 200W – 210W (around 680–716 BTU/h) under standard ASHRAE low back pressure test conditions (\(T_{evap} = -23.3^\circ\text{C}\)).
- Application Category: LBP (Low Back Pressure) — specifically optimized for home refrigerators, large upright kitchen freezers, and beverage showcase coolers.
- Motor Design: RSCR / RSIR configuration providing stable torque performance.
- Cooling Type: Static Cooling (ST) — designed to cool through ambient air dissipation without an external fan motor.
- Included Components: Attached black protective side terminal box housing the PTC starting relay and thermal overload protector.
- Safety Certifications: Stamped with the CE safety mark, TÜV certification, and RoHS environmental compliance logos.📞 Contact & Procurement Details
To secure pricing, check stock availability, or coordinate bulk fulfillment across Saudi Arabia, contact the Ayub First Trading Company distribution offices directly:
- Primary Hotline (Call/WhatsApp): +966 56 004 2170
- Email Inquiries: ayubfirsttrading@gmail.com
- Corporate Web Platform: ayubfirsttrading.com
- Regional Warehouses: Showrooms fully stocked in Riyadh (Al Jabrah, Batha Road), Jeddah, Dammam, and Al Khobar (20th Street, Hail Road).
Description
Description
Based on the product label and engineering data sheets from Anhui Meizhi Compressor Co., Ltd., here are the full technical and commercial specifications for this domestic refrigeration compressor:
📊 Core Technical Specifications
- Brand: GMCC (Anhui Meizhi Compressor Co., Ltd. / Toshiba technology partnership).
- Model Number: PZ110H1B-P (H1A platform series).
- AFTC Stock Code: AFTC-RCP-035.
- Power Rating: 1/4 HP (Horsepower) — designed for high-capacity domestic refrigerators.
- Refrigerant Gas Compatibility: R600a (Isobutane) — an eco-friendly, low environmental impact hydrocarbon refrigerant.
- Power Supply Configuration: 220V – 240V at 60Hz (1-Phase, AC).
- Displacement / Stroke Volume: 11.0 cc (Cubic Centimeters).
- Cooling Capacity: Approximately 200W – 210W (around 680–716 BTU/h) under standard ASHRAE low back pressure test conditions (\(T_{evap} = -23.3^\circ\text{C}\)).
- Application Category: LBP (Low Back Pressure) — specifically optimized for home refrigerators, large upright kitchen freezers, and beverage showcase coolers.
- Motor Design: RSCR / RSIR configuration providing stable torque performance.
- Cooling Type: Static Cooling (ST) — designed to cool through ambient air dissipation without an external fan motor.
- Included Components: Attached black protective side terminal box housing the PTC starting relay and thermal overload protector.
- Safety Certifications: Stamped with the CE safety mark, TÜV certification, and RoHS environmental compliance logos.📞 Contact & Procurement Details
To secure pricing, check stock availability, or coordinate bulk fulfillment across Saudi Arabia, contact the Ayub First Trading Company distribution offices directly:
- Primary Hotline (Call/WhatsApp): +966 56 004 2170
- Email Inquiries: ayubfirsttrading@gmail.com
- Corporate Web Platform: ayubfirsttrading.com
- Regional Warehouses: Showrooms fully stocked in Riyadh (Al Jabrah, Batha Road), Jeddah, Dammam, and Al Khobar (20th Street, Hail Road).
