QD75YB, 1/6 HP, R600a Refrigeration Compressor : AFTC-RCP-013
Original price was: ر.س190.00.ر.س160.00Current price is: ر.س160.00.
QD110YG, 1/4 HP, R600a Refrigeration Compressor : AFTC-RCP-015
Original price was: ر.س260.00.ر.س230.00Current price is: ر.س230.00.
-13%
QD91YB, 1/5 HP, R600a Refrigeration Compressor : AFTC-RCP-014
Original price was: ر.س230.00.ر.س200.00Current price is: ر.س200.00.

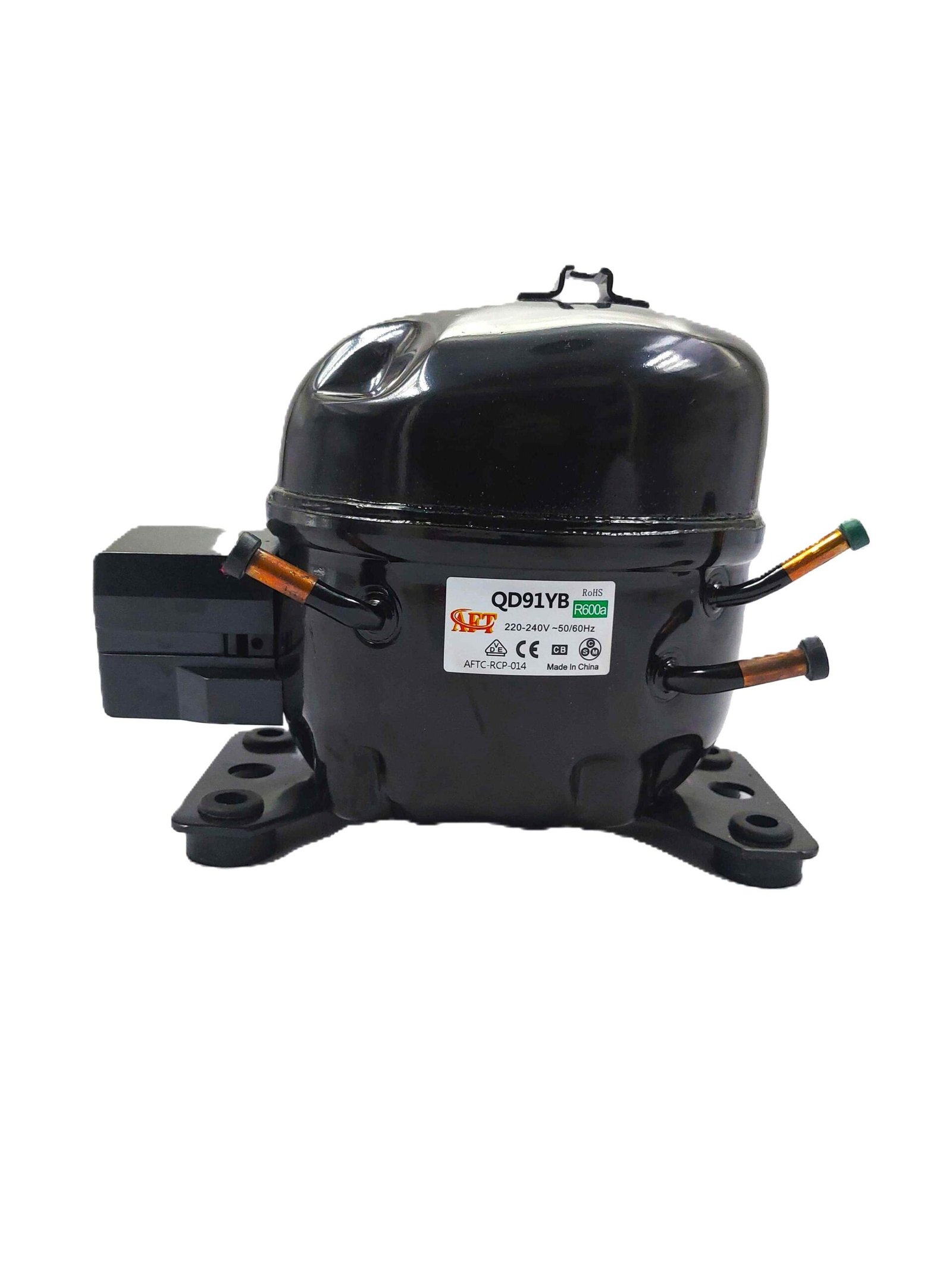

Based on the product label and mechanical data sheets, here are the full technical and commercial specifications for the hermetic reciprocating compressor shown in the image:
📊 Core Technical Specifications
- Model Number: QD91YB.
- AFTC Stock Code: AFTC-RCP-014.
- Power Output: 1/5 HP (Horsepower).
- Refrigerant Gas: R600a (Isobutane) — an eco-friendly hydrocarbon refrigerant.
- Operating Voltage: 220V – 240V.
- Frequency: 50Hz / 60Hz dual-frequency compatibility.
- Displacement: 9.1 cc (Cubic Centimeters).
- Cooling Capacity: Approximately 150W – 160W under standard ASHRAE test conditions.
- Application Type: LBP (Low Back Pressure) — designed for household refrigerators, deep freezers, and beverage coolers.
- Motor Configuration: RSIR (Resistance Start Induction Run).
- Starting Device: PTC Starting Relay (pre-assembled inside the black terminal protector block mounted on the left side of the unit).
- Certifications: CE, CC/CB, and RoHS compliant
-
- Primary Hotline (Call/WhatsApp): +966 56 004 2170
- Email Inquiries: ayubfirsttrading@gmail.com
- Corporate Web Platform: ayubfirsttrading.com
- Regional Warehouses: Showrooms fully stocked in Riyadh (Al Jabrah, Batha Road), Jeddah, Dammam, and Al Khobar (20th Street, Hail Road).
Description
Description
Based on the product label and mechanical data sheets, here are the full technical and commercial specifications for the hermetic reciprocating compressor shown in the image:
📊 Core Technical Specifications
- Model Number: QD91YB.
- AFTC Stock Code: AFTC-RCP-014.
- Power Output: 1/5 HP (Horsepower).
- Refrigerant Gas: R600a (Isobutane) — an eco-friendly hydrocarbon refrigerant.
- Operating Voltage: 220V – 240V.
- Frequency: 50Hz / 60Hz dual-frequency compatibility.
- Displacement: 9.1 cc (Cubic Centimeters).
- Cooling Capacity: Approximately 150W – 160W under standard ASHRAE test conditions.
- Application Type: LBP (Low Back Pressure) — designed for household refrigerators, deep freezers, and beverage coolers.
- Motor Configuration: RSIR (Resistance Start Induction Run).
- Starting Device: PTC Starting Relay (pre-assembled inside the black terminal protector block mounted on the left side of the unit).
- Certifications: CE, CC/CB, and RoHS compliant
-
- Primary Hotline (Call/WhatsApp): +966 56 004 2170
- Email Inquiries: ayubfirsttrading@gmail.com
- Corporate Web Platform: ayubfirsttrading.com
- Regional Warehouses: Showrooms fully stocked in Riyadh (Al Jabrah, Batha Road), Jeddah, Dammam, and Al Khobar (20th Street, Hail Road).
