QD91H, 1/3 HP,R134a,Refrigeration Compressor : AFTC-RCP-006
Original price was: ر.س220.00.ر.س190.00Current price is: ر.س190.00.

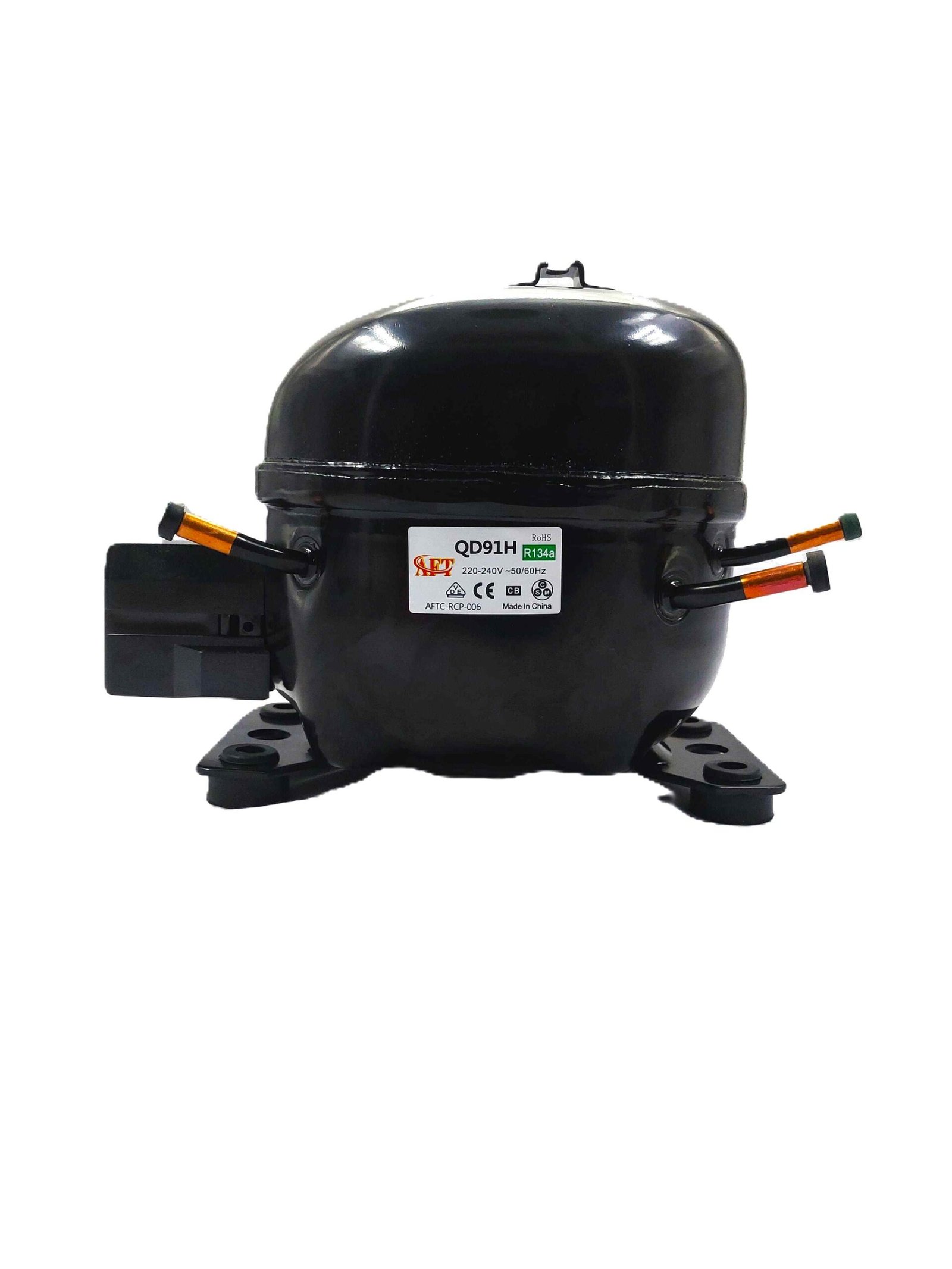

This image shows a hermetic reciprocating refrigeration compressor, specifically the QD91H model. Distributed by Ayub First Trading Company, this higher-output cooling motor functions as a heavy-duty replacement part for large domestic refrigerators, chest freezers, commercial beverage coolers, and supermarket showcase counters.
The complete technical data, performance parameters, and plumbing layout for this exact unit include:
Core Electrical & Mechanical Specifications
- Model Number: QD91H (Internal Part ID: AFTC-RCP-006)
- Motor Power Rating: 1/3 HP (Horsepower)
- Refrigerant Type: R134a gas exclusively
- Power Requirements: 220V–240V AC at 50/60 Hz dual frequency
- Cylinder Displacement: 9.1 cm³ (cc) per piston stroke
- Motor Design: RSIR (Resistance Start – Induction Run) configuration
Performance Parameters (ASHRAE Test Conditions)
- Cooling Output Capacity: Ranging between 208 Watts and 245 Watts depending on operational frequency and system backpressure.
- Application Scope: Low Back Pressure (LBP) and Medium Back Pressure systems.
- Coefficient of Performance (COP): 1.20 W/W, striking a balance between heavy cooling load delivery and electrical efficiency.
- Starting Device: High-reliability PTC Starting Relay accompanied by an attached thermal overload protector (OLP).
Tubing Setup & Physical Configuration
The compressor uses a heavy-welded 3-tube architecture to link with the appliance’s closed refrigeration lines:
- Suction Line: Left copper connector designed to draw low-pressure cool vapor from the cooling coils.
- Discharge Line: Right copper connector designed to drive hot, high-pressure compressed vapor into the outer condenser grid.
- Process / Service Port: Lower sealed tube used by HVAC technicians to evacuate system moisture and feed in the clean R134a refrigerant charge.
- Safety Certifications: Carries standard CE and VDE logos indicating compliance with regional electrical safety benchmarks.📞 Contact & Procurement Details
To secure pricing, check stock availability, or coordinate bulk fulfillment across Saudi Arabia, contact the Ayub First Trading Company distribution offices directly:
- Primary Hotline (Call/WhatsApp): +966 56 004 2170
- Email Inquiries: ayubfirsttrading@gmail.com
- Corporate Web Platform: ayubfirsttrading.com
- Regional Warehouses: Showrooms fully stocked in Riyadh (Al Jabrah, Batha Road), Jeddah, Dammam, and Al Khobar (20th Street, Hail Road).
