45 W. RD-310-45-8K / RD-310-45-8K-1 / ZKFP-45-8-232. Split Ac Indoor Motor : AFTC-ACM-007

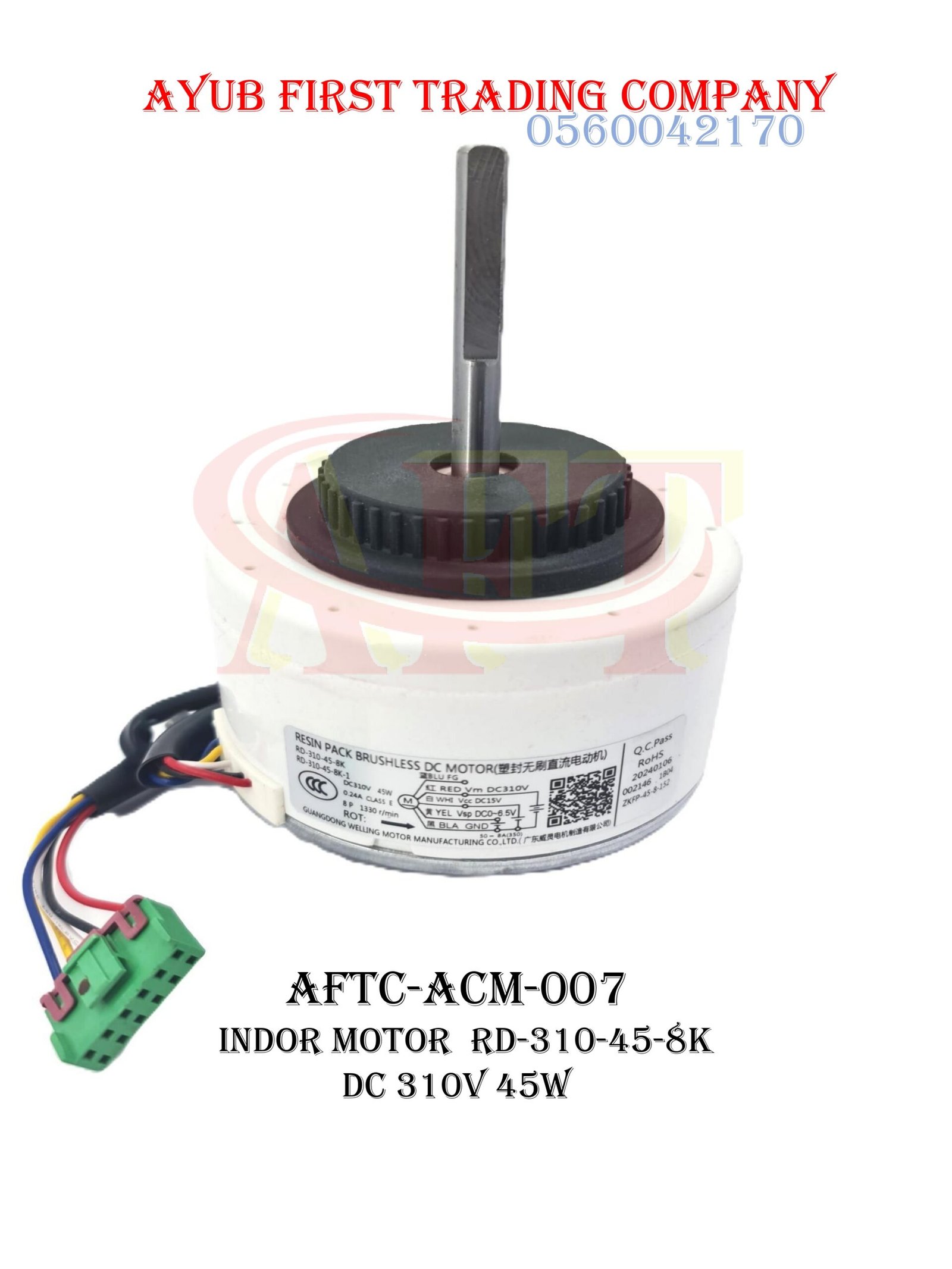

This is a high-efficiency Resin Pack Brushless DC (BLDC) Motor designed for split air conditioner indoor blower units. Here are all the precise technical details, electrical specifications, and wiring configurations extracted directly from the product label:
Core Identification & SKU
-
- Product Part Number: AFTC-ACM-007
- Model Designations: RD-310-45-8K / RD-310-45-8K-1 / ZKFP-45-8-232
- Type: Resin Pack Brushless DC Motor (塑封无刷直流电动机)
- Application: Split Indoor Unit Blower
- Manufacturer: Guangdong Welling Motor Manufacturing Co., Ltd. (Midea Group’s motor division)
- Certifications & Standards: CCC certified, RoHS compliant, Q.C. Passed (Batch date: 20240306)
Electrical Specifications
-
- Operating Voltage: DC 310V (High-voltage DC drive system)
- Power Output: 45 Watts
- Current Draw: 0.24A
- Rotational Speed: 1330 r/min (RPM)
- Motor Poles: 8P (8 Poles)
- Insulation Class: CLASS E
Wiring & Control Interface (5-Wire DC Configuration)
This BLDC motor utilizes an integrated electronic drive circuit accessed via a single 5-pin green terminal connector block. The wiring schematic on the label outlines the control functions:
-
- Red (RED): Vm (DC +310V High-Voltage Main Power supply)
- White (WHI): Vcc (DC +15V Low-Voltage Logic Power supply for internal IC electronics)
- Yellow (YEL): Vsp (DC 0V to 6.5V Variable Speed Control Signal input from the main board)
- Blue (BLU): FG (Frequency Generator / RPM Feedback output pulse to monitor motor speed)
- Black (BLA): GND (Common Ground for both power and control loop circuits)
