REF.Defrost Temperature Control with Clip,SNR-008

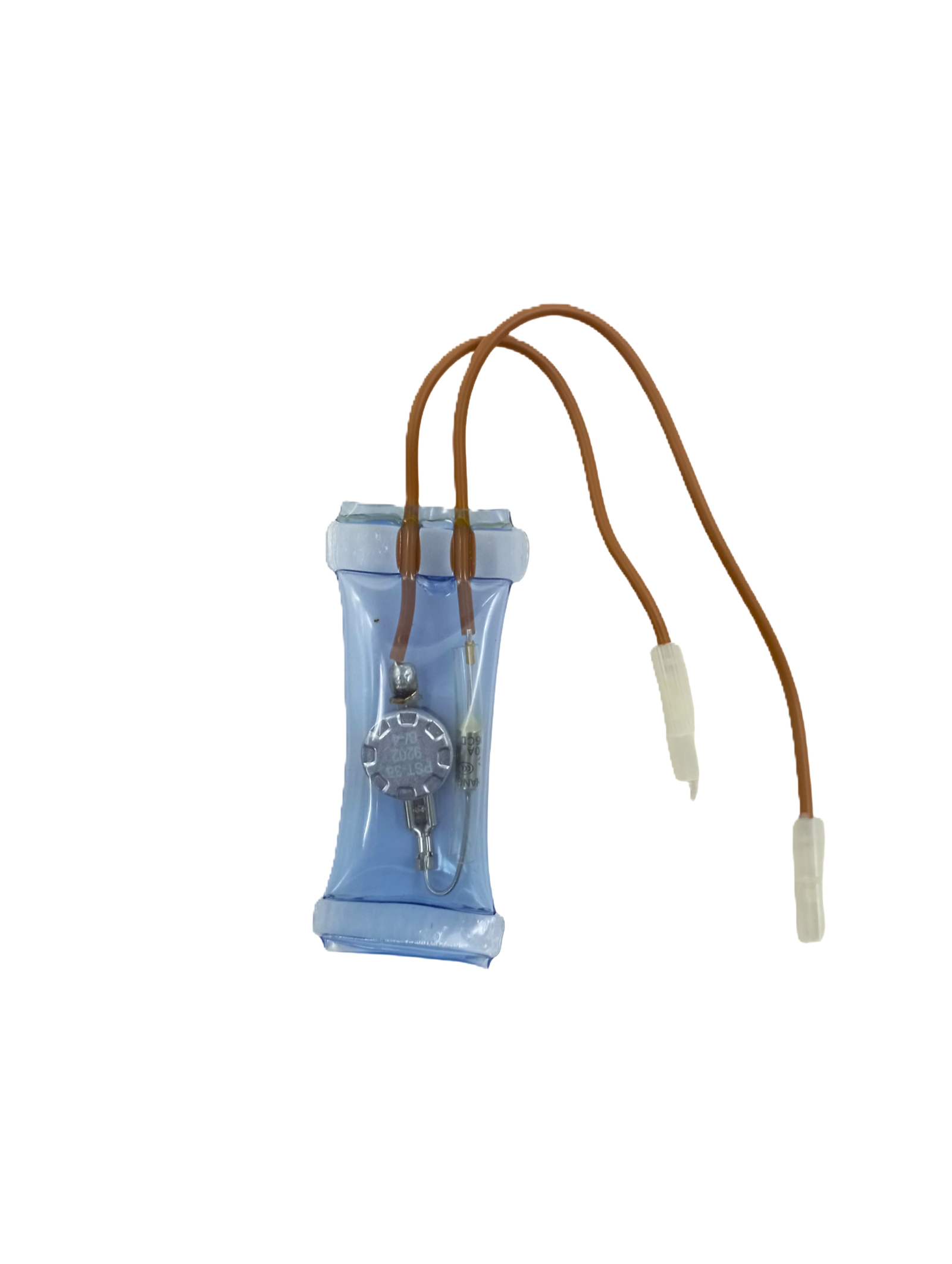

The image shows an SNR-008 Defrost Temperature Control with Clip, a bimetal defrost thermostat used to manage the defrost cycle in refrigeration systems.
Core Function & Working Principle
This component acts as a temperature-sensitive switch to protect the refrigerator from overheating during a defrost cycle:
- Automatic Control: It senses the temperature of the evaporator coils. When the coils get cold enough to accumulate frost, the thermostat remains closed to allow the defrost heater to operate.
- Heat Protection: Once the ice has melted and the temperature rises to a set point (typically around the bimetal disc inside expands and opens the circuit, immediately shutting off the heater.
- Design: The sensor is sealed inside a moisture-proof blue plastic housing (often called a “bagged” thermostat) to prevent water ingress in high-humidity freezer environments. It includes a metal clip for secure mounting directly onto the evaporator tubes.
Common Signs of Failure
A faulty defrost thermostat is a common cause for several refrigerator issues:
- Excessive Frost: If the thermostat fails to close, the defrost heater will never turn on, leading to thick ice buildup on the evaporator coils.
- Warm Fridge/Freezer: Heavy ice buildup blocks airflow, preventing the unit from cooling the compartments properly.
- Continuous Running: The compressor may run constantly as it struggles to cool through the ice-blocked coils.
Description
Description
The image shows an SNR-008 Defrost Temperature Control with Clip, a bimetal defrost thermostat used to manage the defrost cycle in refrigeration systems.
Core Function & Working Principle
This component acts as a temperature-sensitive switch to protect the refrigerator from overheating during a defrost cycle:
- Automatic Control: It senses the temperature of the evaporator coils. When the coils get cold enough to accumulate frost, the thermostat remains closed to allow the defrost heater to operate.
- Heat Protection: Once the ice has melted and the temperature rises to a set point (typically around the bimetal disc inside expands and opens the circuit, immediately shutting off the heater.
- Design: The sensor is sealed inside a moisture-proof blue plastic housing (often called a “bagged” thermostat) to prevent water ingress in high-humidity freezer environments. It includes a metal clip for secure mounting directly onto the evaporator tubes.
Common Signs of Failure
A faulty defrost thermostat is a common cause for several refrigerator issues:
- Excessive Frost: If the thermostat fails to close, the defrost heater will never turn on, leading to thick ice buildup on the evaporator coils.
- Warm Fridge/Freezer: Heavy ice buildup blocks airflow, preventing the unit from cooling the compartments properly.
- Continuous Running: The compressor may run constantly as it struggles to cool through the ice-blocked coils.
