Samsung front-load washing machine drum spider : AFTC-WMSP-004

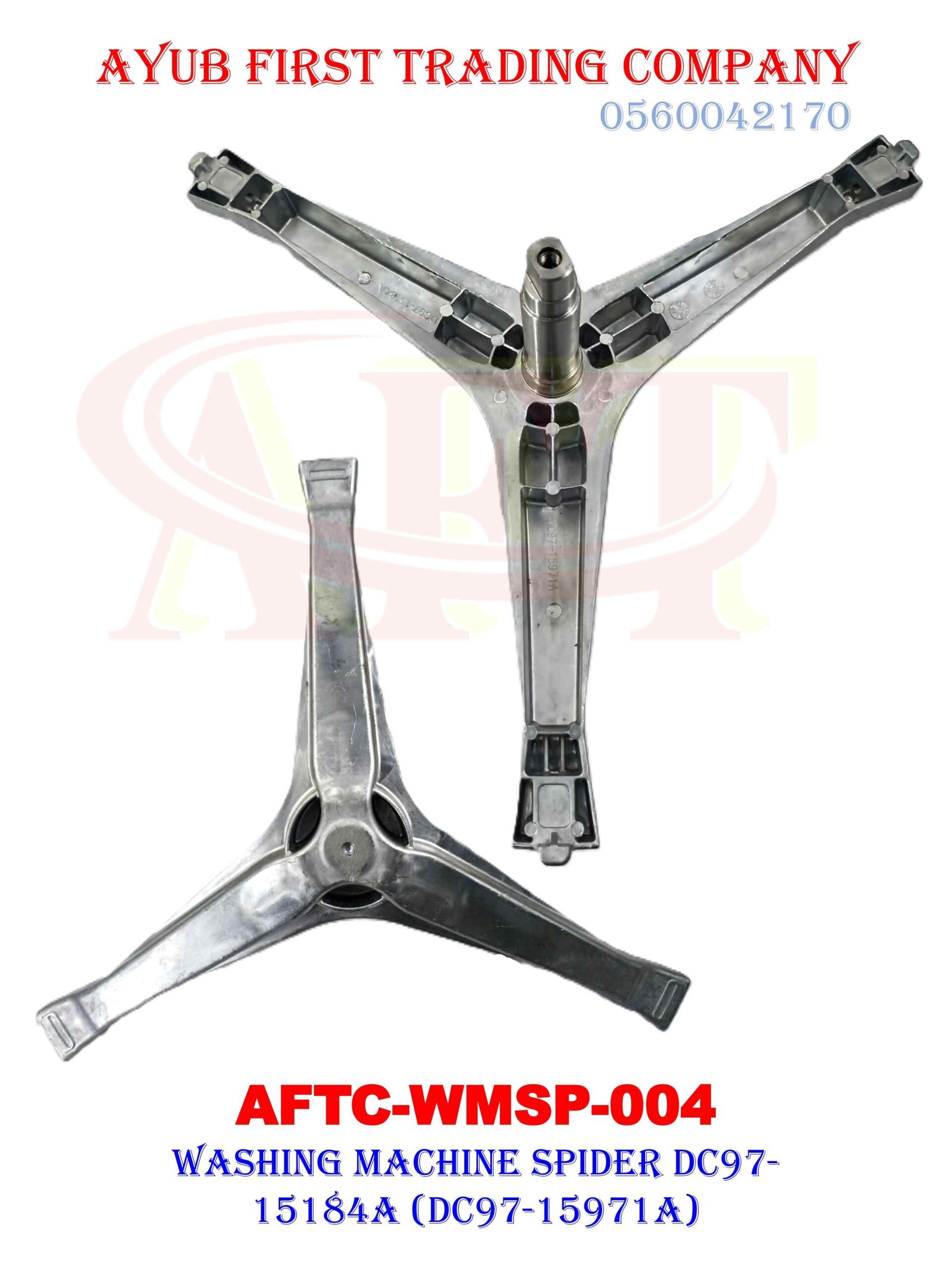

This part is a Samsung front-load washing machine drum spider assembly (also referred to as a flange shaft flange or rear tub tripod). It functions as the central structural anchor that attaches the back of the stainless steel spin tub directly to the drive belt pulley system.
Technical Specifications
Based on the supplier code and genuine OEM cross-reference numbers displayed on the image, the technical specifications include:
- Supplier Part Number:
AFTC-WMSP-004 - OEM Part Numbers: DC97-15184A / DC97-15971A
- Shaft Drive Profile: Flattened double-D dual flat surface tip designed to securely interlock with the matching slot of a belt-driven rear pulley.
- Pulley Mounting Anchor: Standard internal center thread layout designed for an M10 securing bolt.
Dimension Differences by Model Variant
While sharing a similar flat-sided tip drive design, these two cross-referenced variations are manufactured with distinct shaft measurements depending on your exact machine load layout:
| DC97-15184A Variant | DC97-15971A Variant |
|---|---|
|
Typical Washer Load Capacity
6 kg to 7 kg drums |
Typical Washer Load Capacity
7 kg to 8 kg drums |
|
Total Shaft Length
125.5 mm |
Total Shaft Length
107 mm |
|
Oil Seal Sleeve Hub Diameter
35 mm |
Oil Seal Sleeve Hub Diameter
30 mm |
|
Arm Radius / Reach (Axis to Tip)
245 mm |
Arm Radius / Reach (Axis to Tip)
247 mm |
|
Compatible Bearing Sizes
Typically 6204 & 6205 |
Compatible Bearing Sizes
6204 & 6205 |
📞 Contact & Procurement Details
To secure pricing, check stock availability, or coordinate bulk fulfillment across Saudi Arabia, contact the Ayub First Trading Company distribution offices directly:
- Primary Hotline (Call/WhatsApp): +966 56 004 2170
- Email Inquiries: ayubfirsttrading@gmail.com
- Corporate Web Platform: ayubfirsttrading.com
- Regional Warehouses: Showrooms fully stocked in Riyadh (Al Jabrah, Batha Road), Jeddah, Dammam, and Al Khobar (20th Street, Hail Road).
Description
Description
This part is a Samsung front-load washing machine drum spider assembly (also referred to as a flange shaft flange or rear tub tripod). It functions as the central structural anchor that attaches the back of the stainless steel spin tub directly to the drive belt pulley system.
Technical Specifications
Based on the supplier code and genuine OEM cross-reference numbers displayed on the image, the technical specifications include:
- Supplier Part Number:
AFTC-WMSP-004 - OEM Part Numbers: DC97-15184A / DC97-15971A
- Shaft Drive Profile: Flattened double-D dual flat surface tip designed to securely interlock with the matching slot of a belt-driven rear pulley.
- Pulley Mounting Anchor: Standard internal center thread layout designed for an M10 securing bolt.
Dimension Differences by Model Variant
While sharing a similar flat-sided tip drive design, these two cross-referenced variations are manufactured with distinct shaft measurements depending on your exact machine load layout:
| DC97-15184A Variant | DC97-15971A Variant |
|---|---|
|
Typical Washer Load Capacity
6 kg to 7 kg drums |
Typical Washer Load Capacity
7 kg to 8 kg drums |
|
Total Shaft Length
125.5 mm |
Total Shaft Length
107 mm |
|
Oil Seal Sleeve Hub Diameter
35 mm |
Oil Seal Sleeve Hub Diameter
30 mm |
|
Arm Radius / Reach (Axis to Tip)
245 mm |
Arm Radius / Reach (Axis to Tip)
247 mm |
|
Compatible Bearing Sizes
Typically 6204 & 6205 |
Compatible Bearing Sizes
6204 & 6205 |
📞 Contact & Procurement Details
To secure pricing, check stock availability, or coordinate bulk fulfillment across Saudi Arabia, contact the Ayub First Trading Company distribution offices directly:
- Primary Hotline (Call/WhatsApp): +966 56 004 2170
- Email Inquiries: ayubfirsttrading@gmail.com
- Corporate Web Platform: ayubfirsttrading.com
- Regional Warehouses: Showrooms fully stocked in Riyadh (Al Jabrah, Batha Road), Jeddah, Dammam, and Al Khobar (20th Street, Hail Road).
