SC12CLX.2,Secop R404A, R507 Refrigeration Compressor : AFTC-RCP-040
Original price was: ر.س665.00.ر.س633.00Current price is: ر.س633.00.
SC18CLX.2 Secop,7/8 HP,R404A and R507 Refrigeration Compressor : AFTC-RCP-042
Original price was: ر.س790.00.ر.س760.00Current price is: ر.س760.00.
-4%
SC15CLX.2, Secop,5/8 HP.R404A, R507, and R452A Refrigeration Compressor : AFTC-RCP-041
Original price was: ر.س750.00.ر.س720.00Current price is: ر.س720.00.

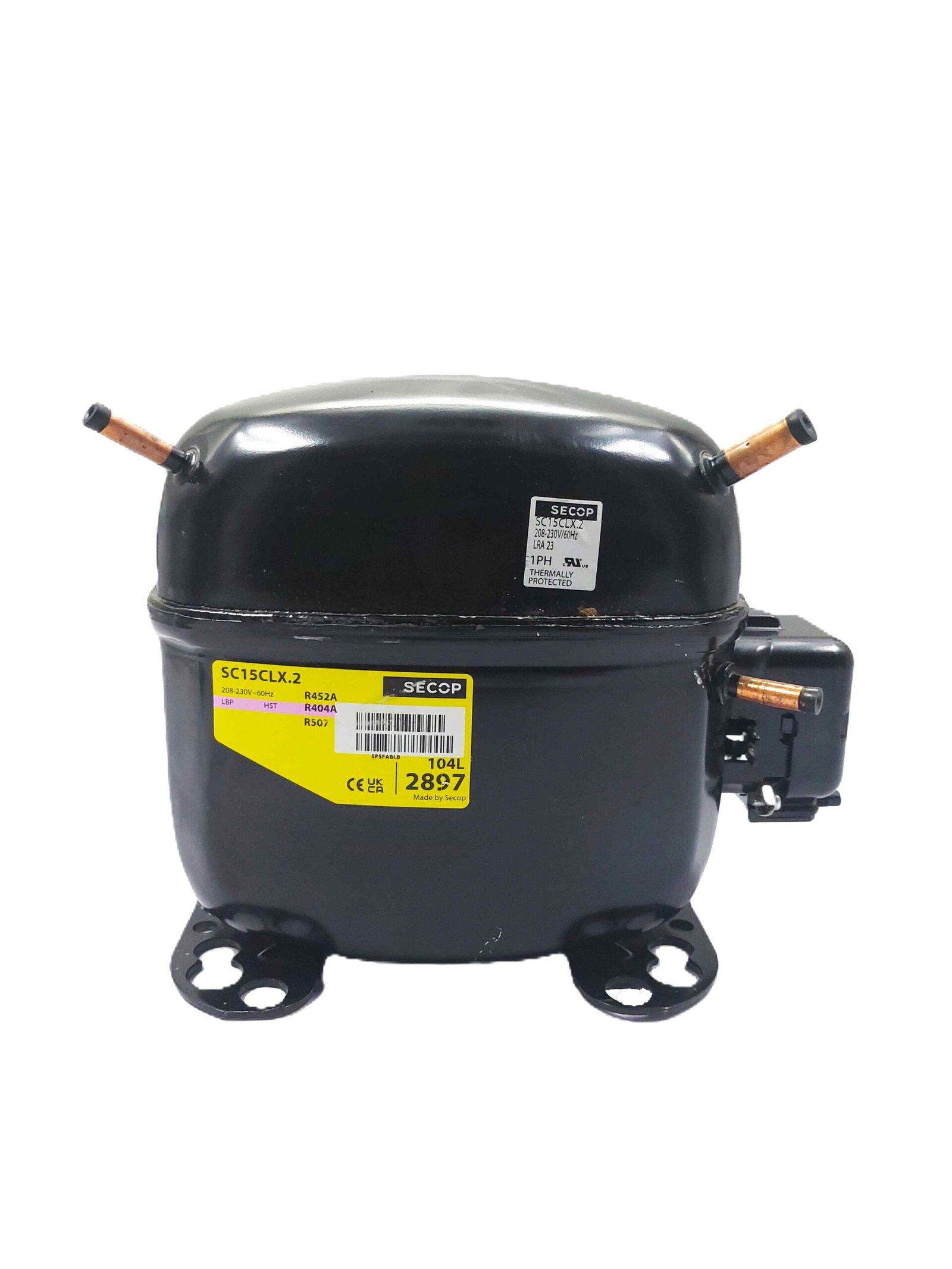

The image shows a Secop SC15CLX.2 hermetic reciprocating refrigeration compressor. Below are the complete technical details and specifications for this specific model:
⚙️ Core Technical Specifications
- AFTC Stock Code: AFTC-RCP-041.
- Manufacturer: Secop (formerly Danfoss)
- Model Designation: SC15CLX.2
- Sales Code: 104L2897 (printed on the yellow label)
- Displacement: 15.28 cc (\(cm^{3}\))
- Power Rating: 5/8 HP (nominal horsepower rating)
- Refrigerants Supported: R404A, R507, and R452A
- Application Range: LBP (Low Back Pressure) typically used for commercial freezers, low-temperature display cases, and ice storage bins.
⚡ Electrical Data
- Power Supply: 208-230V / 1 Phase
- Frequency: Dual-rated for 50Hz / 60Hz operations
- Locked Rotor Amps (LRA): 23 A (as shown on the smaller top label)
- Starting Torque: HST (High Starting Torque), requiring a start capacitor for operation under unequalized system pressures.
- Motor Protection: Thermally Protected (Internal)
🛢️ Physical & Mechanical Attributes
- Oil Type: Polyolester (POE) oil
- Oil Quantity: 550 cc
- Net Weight: 13.8 kg
- Max Refrigerant Charge: 1300 g
- Connectors (Copper Tubing):
- Suction Connection: 9.7 mm inner diameter
- Discharge Connection: 6.5 mm inner diameter
- Process Connection: 6.5 mm inner diameter
🌡️ Cooling Performance
- Evaporating Temperature Range: -45°C to -10°C (-49°F to 14°F)
- Cooling Requirement: Requires Fan Cooling (F2) at a minimum velocity of 3.0 m/s across the housing body to prevent overheating.
- 📞 Contact & Procurement Details
To secure pricing, check stock availability, or coordinate bulk fulfillment across Saudi Arabia, contact the Ayub First Trading Company distribution offices directly:
- Primary Hotline (Call/WhatsApp): +966 56 004 2170
- Email Inquiries: ayubfirsttrading@gmail.com
- Corporate Web Platform: ayubfirsttrading.com
- Regional Warehouses: Showrooms fully stocked in Riyadh (Al Jabrah, Batha Road), Jeddah, Dammam, and Al Khobar (20th Street, Hail Road).
Description
Description
The image shows a Secop SC15CLX.2 hermetic reciprocating refrigeration compressor. Below are the complete technical details and specifications for this specific model:
⚙️ Core Technical Specifications
- AFTC Stock Code: AFTC-RCP-041.
- Manufacturer: Secop (formerly Danfoss)
- Model Designation: SC15CLX.2
- Sales Code: 104L2897 (printed on the yellow label)
- Displacement: 15.28 cc (\(cm^{3}\))
- Power Rating: 5/8 HP (nominal horsepower rating)
- Refrigerants Supported: R404A, R507, and R452A
- Application Range: LBP (Low Back Pressure) typically used for commercial freezers, low-temperature display cases, and ice storage bins.
⚡ Electrical Data
- Power Supply: 208-230V / 1 Phase
- Frequency: Dual-rated for 50Hz / 60Hz operations
- Locked Rotor Amps (LRA): 23 A (as shown on the smaller top label)
- Starting Torque: HST (High Starting Torque), requiring a start capacitor for operation under unequalized system pressures.
- Motor Protection: Thermally Protected (Internal)
🛢️ Physical & Mechanical Attributes
- Oil Type: Polyolester (POE) oil
- Oil Quantity: 550 cc
- Net Weight: 13.8 kg
- Max Refrigerant Charge: 1300 g
- Connectors (Copper Tubing):
- Suction Connection: 9.7 mm inner diameter
- Discharge Connection: 6.5 mm inner diameter
- Process Connection: 6.5 mm inner diameter
🌡️ Cooling Performance
- Evaporating Temperature Range: -45°C to -10°C (-49°F to 14°F)
- Cooling Requirement: Requires Fan Cooling (F2) at a minimum velocity of 3.0 m/s across the housing body to prevent overheating.
- 📞 Contact & Procurement Details
To secure pricing, check stock availability, or coordinate bulk fulfillment across Saudi Arabia, contact the Ayub First Trading Company distribution offices directly:
- Primary Hotline (Call/WhatsApp): +966 56 004 2170
- Email Inquiries: ayubfirsttrading@gmail.com
- Corporate Web Platform: ayubfirsttrading.com
- Regional Warehouses: Showrooms fully stocked in Riyadh (Al Jabrah, Batha Road), Jeddah, Dammam, and Al Khobar (20th Street, Hail Road).
