Single-Row Cylindrical Roller Bearing:AFTC-NU2315ECP/C3

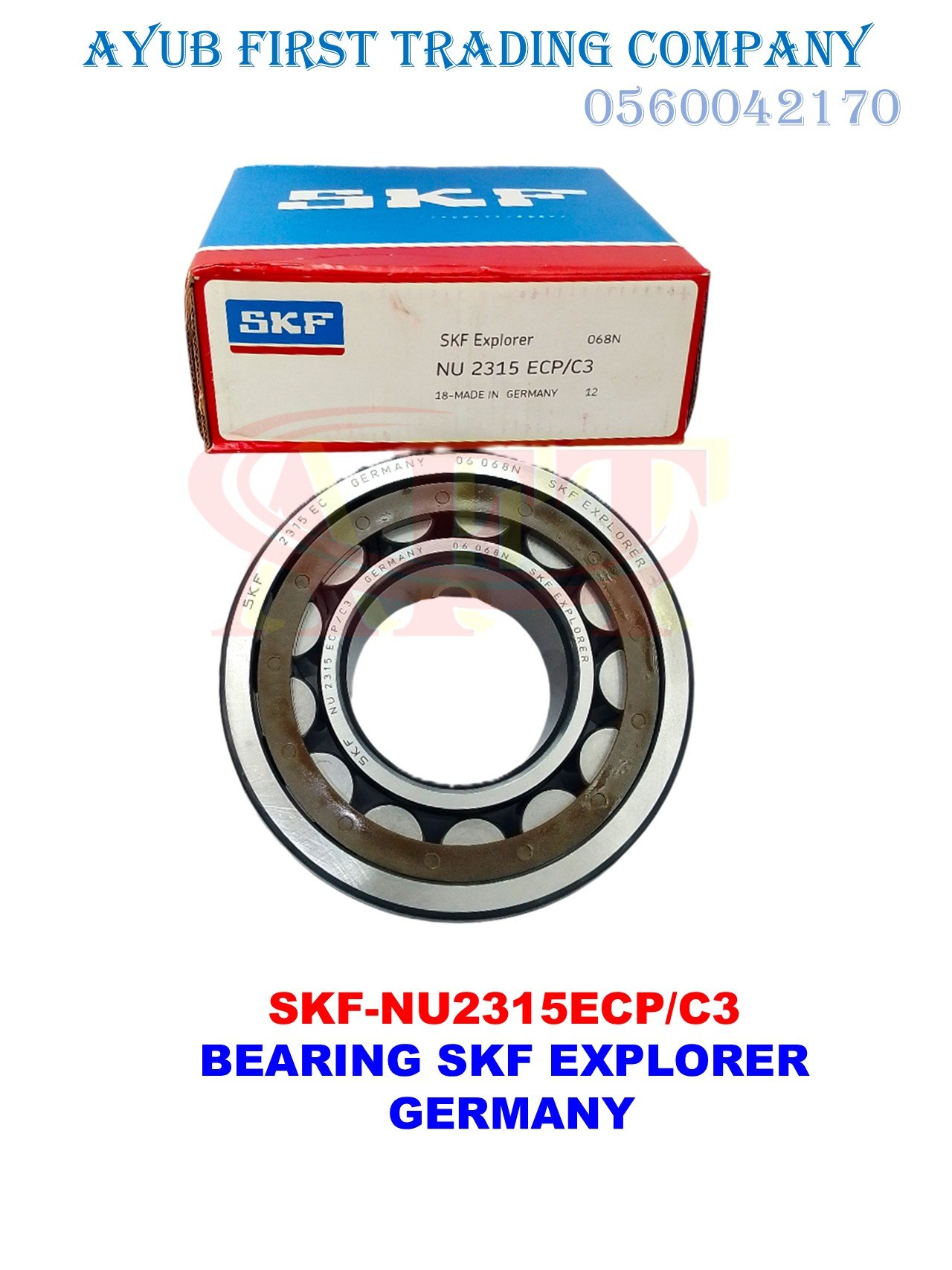

The product in the image is an Single-Row Cylindrical Roller Bearing:AFTC-NU2315ECP/C3 , an essential replacement component for industrial electric motors, heavy-duty pumps, gearboxes, paper mills, and industrial fans. It is engineered to withstand massive radial loads at high speeds, manufactured under the premium Explorer class by SKF, Germany.
🔍 Technical Specifications
- Model Number: AFTC-NU2315ECP/C3
- Manufacturer Part Number: SKF NU 2315 ECP/C3
- Bearing Type: Cylindrical Roller Bearing (Single-Row, Radial)
- Bore Diameter (Inner d): 75 mm
- Outer Diameter (D): 160 mm
- Width (Thickness B): 55 mm
- Basic Dynamic Radial Load Rating (\(C_{r}\)): 365,000 N (365.00 kN)
- Basic Static Radial Load Rating (\(C_{0r}\)): 380,000 N (380.00 kN)
⚙️ Design & Features
- NU Design Configuration: Features two integral ribs on the outer ring and no ribs on the inner ring. This design safely accommodates axial displacement of the shaft relative to the housing in both directions during operation.
- Glass-Fiber Reinforced Polyamide Cage (P Suffix): Equipped with a lightweight, high-performance PA66 cage. It reduces internal friction, minimizes heat generation, and optimizes roller guidance under high acceleration.
- Optimized Internal Geometry (EC Designation): Modified internal architecture incorporating larger, specialized rollers to maximize dynamic radial load ratings and improve operating reliability.
- Enlarged Radial Internal Clearance (C3 Suffix): Calibrated with slightly increased internal play to absorb thermal expansion safely and prevent binding during high-temperature or continuous high-speed runs.
📞 Contact & Procurement Details
To secure pricing, check stock availability, or coordinate bulk fulfillment across Saudi Arabia, contact the Ayub First Trading Company distribution offices directly:
- Primary Hotline (Call/WhatsApp): +966 56 004 2170
- Email Inquiries: ayubfirsttrading@gmail.com
- Corporate Web Platform: ayubfirsttrading.com
- Regional Warehouses: Showrooms fully stocked in Riyadh (Al Jabrah, Batha Road), Jeddah, Dammam, and Al Khobar (20th Street, Hail Road)
