Single-Row Imperial Tapered Roller Bearing: TIMKEN-HM518445/10

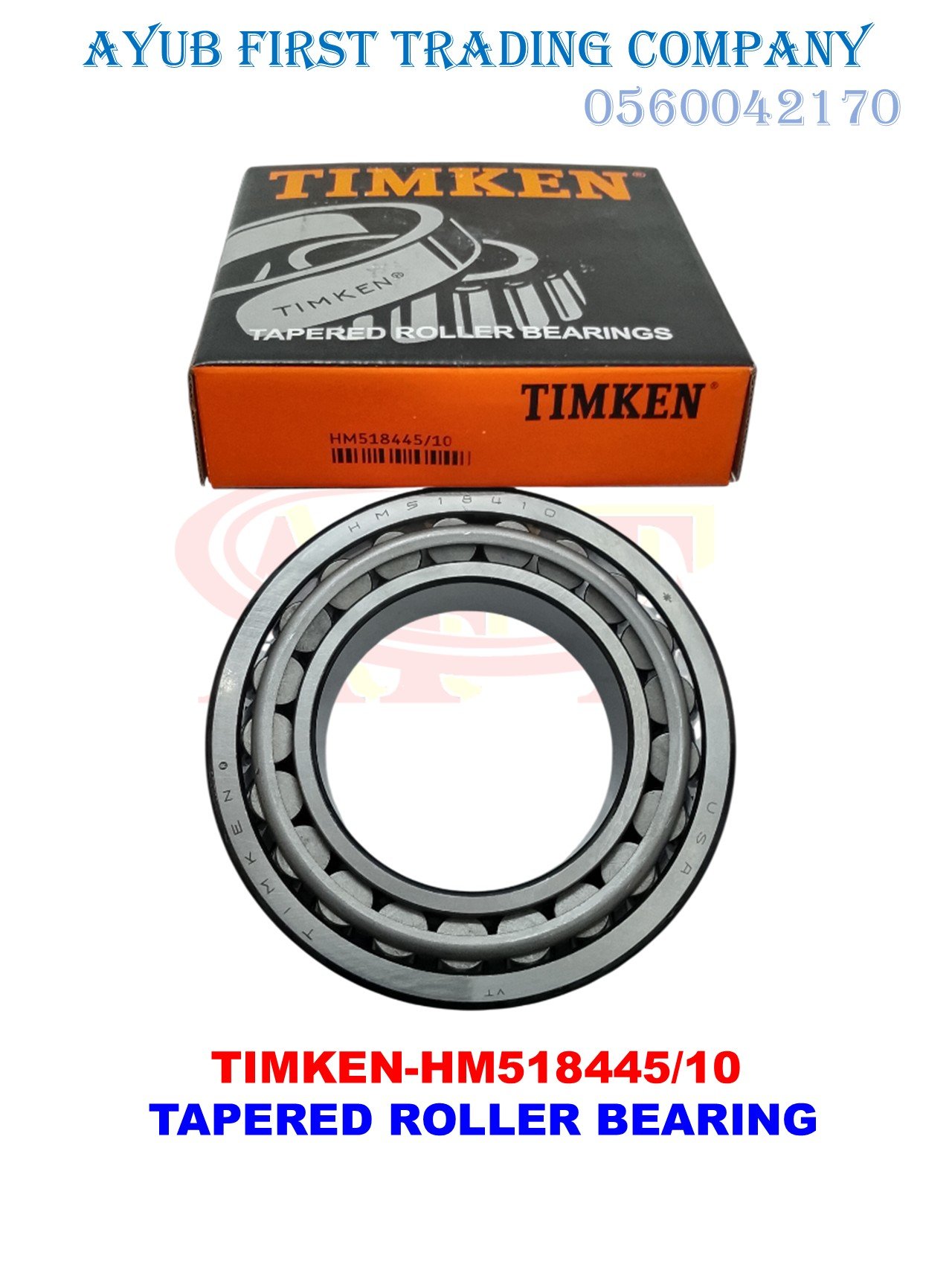

The product in the image is a Single-Row Imperial Tapered Roller Bearing: TIMKEN-HM518445/10 . It serves as an essential replacement component for commercial vehicle axle spindles, heavy trailers, agricultural wheel hubs, defense vehicles, and high-capacity industrial gear assemblies. It is manufactured using premium case-hardened alloy steel by The Timken Company, USA.
🔍 Technical Specifications
- Model Number: TIMKEN-HM518445/10
- Cone Part Number (Inner Ring): HM518445
- Cup Part Number (Outer Ring): HM518410
- Bearing Type: Single-Row Tapered Roller Bearing (Imperial Heavy Duty / HM Series)
- Bore Diameter (Inner d): 3.5000 in (88.900 mm)
- Outer Diameter (D): 6.0000 in (152.400 mm)
- Total Bearing Width (T): 1.5625 in (39.688 mm)
- Cone Width (B): 1.5625 in (39.688 mm)
- Cup Width (C): 1.1875 in (30.163 mm)
- Basic Dynamic Radial Load Rating (\(C_{r}\)): 261,000 N (261.00 kN)
- Basic Static Radial Load Rating (\(C_{0r}\)): 385,000 N (385.00 kN)
⚙️ Design & Features
- Combined Heavy-Load Handling: Features precisely engineered conical raceways and tapered rollers. This layout supports substantial simultaneous radial forces and heavy unidirectional axial thrust loads.
- Separable Mechanical Architecture: The outer cup is completely independent from the inner cone-and-roller assembly. This design simplifies independent mounting, precision end-play adjustment, and cleaning routines.
- Stamped Steel Window Cage: Fitted with a robust, precision-stamped steel cage that evenly spaces the rolling elements to optimize uniform load balancing and limit internal friction.
- Open System Setup: Constructed without integrated shields or contact seals to permit free-flowing grease lubrication or continuous high-efficiency hot oil immersion.
📞 Contact & Procurement Details
To secure pricing, check stock availability, or coordinate bulk fulfillment across Saudi Arabia, contact the Ayub First Trading Company distribution offices directly:
- Primary Hotline (Call/WhatsApp): +966 56 004 2170
- Email Inquiries: ayubfirsttrading@gmail.com
- Corporate Web Platform: ayubfirsttrading.com
- Regional Warehouses: Showrooms fully stocked in Riyadh (Al Jabrah, Batha Road), Jeddah, Dammam, and Al Khobar (20th Street, Hail Road)
Description
Description
The product in the image is a Single-Row Imperial Tapered Roller Bearing: TIMKEN-HM518445/10 . It serves as an essential replacement component for commercial vehicle axle spindles, heavy trailers, agricultural wheel hubs, defense vehicles, and high-capacity industrial gear assemblies. It is manufactured using premium case-hardened alloy steel by The Timken Company, USA.
🔍 Technical Specifications
- Model Number: TIMKEN-HM518445/10
- Cone Part Number (Inner Ring): HM518445
- Cup Part Number (Outer Ring): HM518410
- Bearing Type: Single-Row Tapered Roller Bearing (Imperial Heavy Duty / HM Series)
- Bore Diameter (Inner d): 3.5000 in (88.900 mm)
- Outer Diameter (D): 6.0000 in (152.400 mm)
- Total Bearing Width (T): 1.5625 in (39.688 mm)
- Cone Width (B): 1.5625 in (39.688 mm)
- Cup Width (C): 1.1875 in (30.163 mm)
- Basic Dynamic Radial Load Rating (\(C_{r}\)): 261,000 N (261.00 kN)
- Basic Static Radial Load Rating (\(C_{0r}\)): 385,000 N (385.00 kN)
⚙️ Design & Features
- Combined Heavy-Load Handling: Features precisely engineered conical raceways and tapered rollers. This layout supports substantial simultaneous radial forces and heavy unidirectional axial thrust loads.
- Separable Mechanical Architecture: The outer cup is completely independent from the inner cone-and-roller assembly. This design simplifies independent mounting, precision end-play adjustment, and cleaning routines.
- Stamped Steel Window Cage: Fitted with a robust, precision-stamped steel cage that evenly spaces the rolling elements to optimize uniform load balancing and limit internal friction.
- Open System Setup: Constructed without integrated shields or contact seals to permit free-flowing grease lubrication or continuous high-efficiency hot oil immersion.
📞 Contact & Procurement Details
To secure pricing, check stock availability, or coordinate bulk fulfillment across Saudi Arabia, contact the Ayub First Trading Company distribution offices directly:
- Primary Hotline (Call/WhatsApp): +966 56 004 2170
- Email Inquiries: ayubfirsttrading@gmail.com
- Corporate Web Platform: ayubfirsttrading.com
- Regional Warehouses: Showrooms fully stocked in Riyadh (Al Jabrah, Batha Road), Jeddah, Dammam, and Al Khobar (20th Street, Hail Road)
