Single-Row Metric Tapered Roller Bearing: AFTC-30306JR

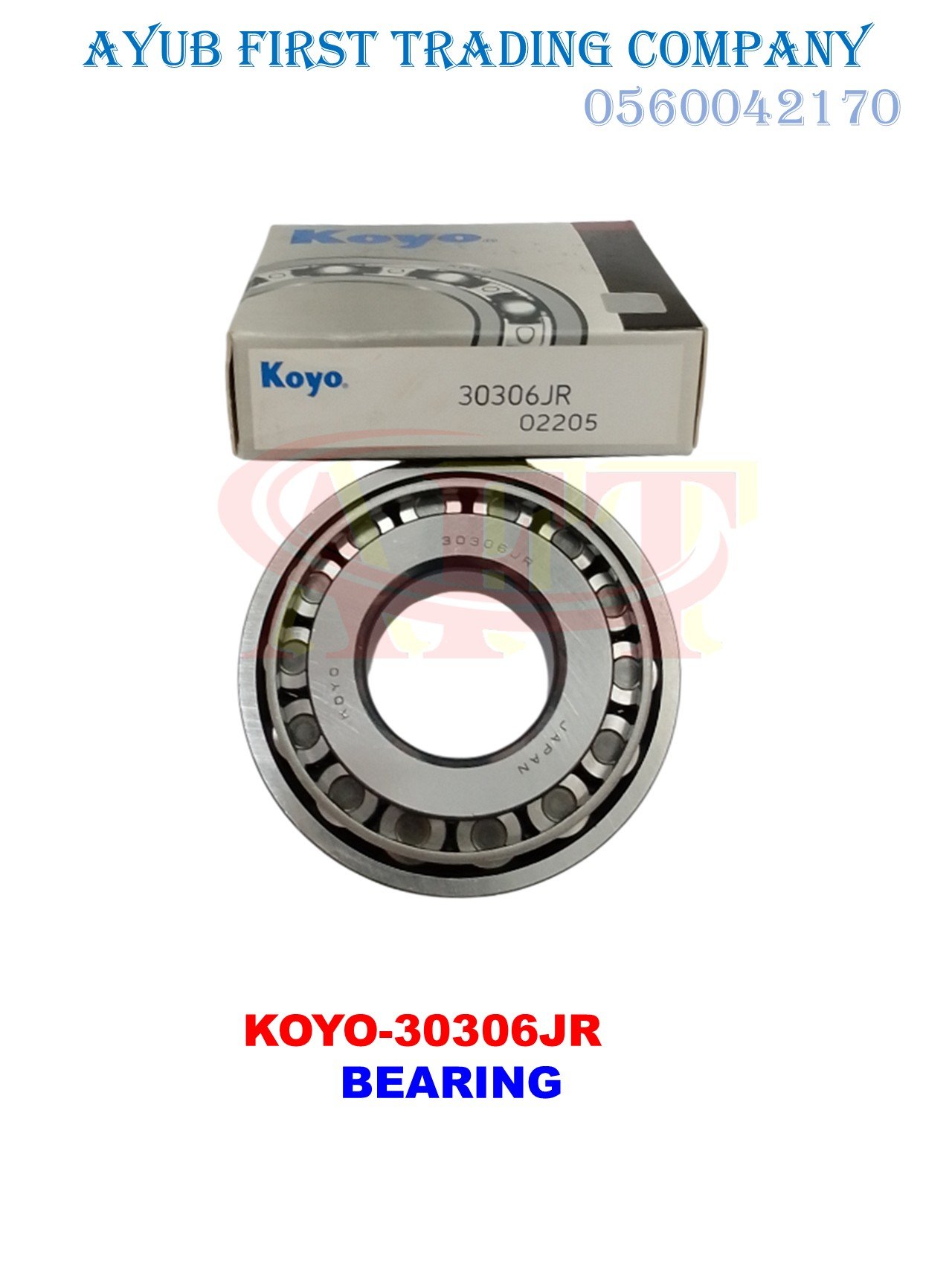

The product in the image is an Single-Row Metric Tapered Roller Bearing: AFTC-30306JR, an essential replacement component for automotive wheels, transmissions, agricultural machinery, and industrial gearboxes. It is engineered with high-capacity loading parameters and manufactured by Koyo (JTEKT Corporation), Japan.
🔍 Technical Specifications
- Model Number: AFTC-30306JR
- Manufacturer Part Number: Koyo 30306JR / HI-CAP 30306JR
- Bearing Type: Single-Row Tapered Roller Bearing (Metric Series)
- Bore Diameter (Inner d): 30 mm
- Outer Diameter (D): 72 mm
- Total Width (Thickness T): 20.75 mm
- Inner Ring Width (B): 19 mm
- Outer Ring Width (C): 16 mm
- Basic Dynamic Radial Load Rating (\(C_{r}\)): 43,500 N to 53,500 N (43.5 kN – 53.5 kN)
- Basic Static Radial Load Rating (\(C_{0r}\)): 42,500 N to 51,500 N (42.5 kN – 51.5 kN)
⚙️ Design & Features
- HI-CAP High-Capacity Engineering: Optimally designed with advanced internal geometry and structural modifications to sustain massive radial and thrust load thresholds.
- JR Pressed-Steel Window Cage: Fitted with a robust, precision-stamped steel cage that guides and spaces the rollers perfectly, ensuring uniform load distribution and lower friction.
- Separable Construction Component: The tapered outer cup can be easily separated from the inner cone assembly ( rollers and cage), providing simplified, clean physical installation, shaft adjustment, and maintenance routine access.
- Open System Setup: Constructed as an unshielded, open face architecture to support high-efficiency continuous oil immersion baths or heavy mechanical grease lubrication.
📞 Contact & Procurement Details
To secure pricing, check stock availability, or coordinate bulk fulfillment across Saudi Arabia, contact the Ayub First Trading Company distribution offices directly:
- Primary Hotline (Call/WhatsApp): +966 56 004 2170
- Email Inquiries: ayubfirsttrading@gmail.com
- Corporate Web Platform: ayubfirsttrading.com
- Regional Warehouses: Showrooms fully stocked in Riyadh (Al Jabrah, Batha Road), Jeddah, Dammam, and Al Khobar (20th Street, Hail Road)
Description
Description
The product in the image is an Single-Row Metric Tapered Roller Bearing: AFTC-30306JR, an essential replacement component for automotive wheels, transmissions, agricultural machinery, and industrial gearboxes. It is engineered with high-capacity loading parameters and manufactured by Koyo (JTEKT Corporation), Japan.
🔍 Technical Specifications
- Model Number: AFTC-30306JR
- Manufacturer Part Number: Koyo 30306JR / HI-CAP 30306JR
- Bearing Type: Single-Row Tapered Roller Bearing (Metric Series)
- Bore Diameter (Inner d): 30 mm
- Outer Diameter (D): 72 mm
- Total Width (Thickness T): 20.75 mm
- Inner Ring Width (B): 19 mm
- Outer Ring Width (C): 16 mm
- Basic Dynamic Radial Load Rating (\(C_{r}\)): 43,500 N to 53,500 N (43.5 kN – 53.5 kN)
- Basic Static Radial Load Rating (\(C_{0r}\)): 42,500 N to 51,500 N (42.5 kN – 51.5 kN)
⚙️ Design & Features
- HI-CAP High-Capacity Engineering: Optimally designed with advanced internal geometry and structural modifications to sustain massive radial and thrust load thresholds.
- JR Pressed-Steel Window Cage: Fitted with a robust, precision-stamped steel cage that guides and spaces the rollers perfectly, ensuring uniform load distribution and lower friction.
- Separable Construction Component: The tapered outer cup can be easily separated from the inner cone assembly ( rollers and cage), providing simplified, clean physical installation, shaft adjustment, and maintenance routine access.
- Open System Setup: Constructed as an unshielded, open face architecture to support high-efficiency continuous oil immersion baths or heavy mechanical grease lubrication.
📞 Contact & Procurement Details
To secure pricing, check stock availability, or coordinate bulk fulfillment across Saudi Arabia, contact the Ayub First Trading Company distribution offices directly:
- Primary Hotline (Call/WhatsApp): +966 56 004 2170
- Email Inquiries: ayubfirsttrading@gmail.com
- Corporate Web Platform: ayubfirsttrading.com
- Regional Warehouses: Showrooms fully stocked in Riyadh (Al Jabrah, Batha Road), Jeddah, Dammam, and Al Khobar (20th Street, Hail Road)
