Single-Row Metric Tapered Roller Bearing: AFTC-HR30210J

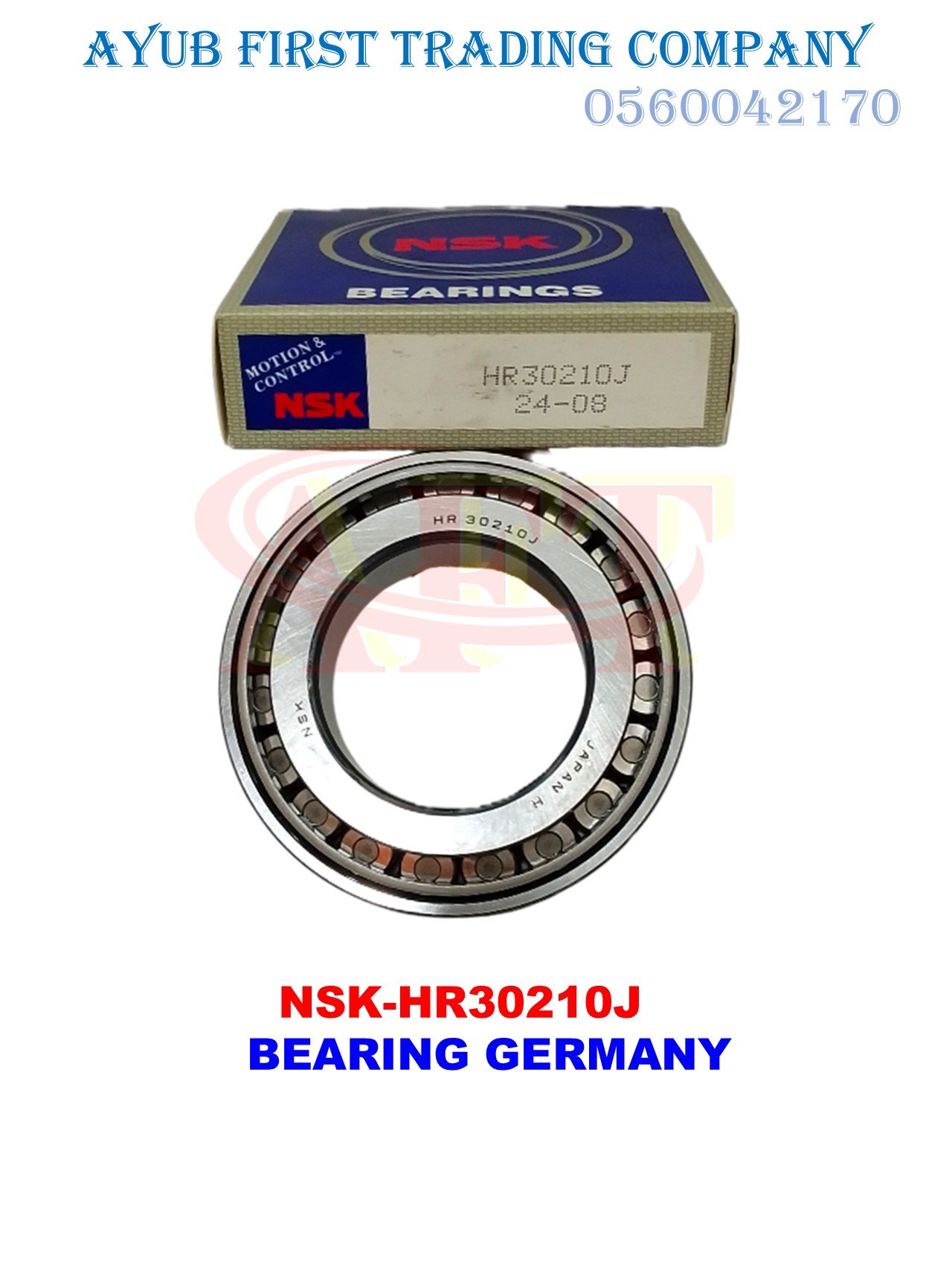

The product in the image is an Single-Row Metric Tapered Roller Bearing: AFTC-HR30210J , an essential replacement component for automotive differentials, wheel hubs, transmissions, industrial gearboxes, and heavy manufacturing equipment. It is engineered with high-capacity parameters and manufactured by NSK Ltd., Japan.
🔍 Technical Specifications
- Model Number: AFTC-HR30210J
- Manufacturer Part Number: NSK HR30210J
- Bearing Type: Single-Row Tapered Roller Bearing (Metric Series)
- Bore Diameter (Inner d): 50 mm
- Outer Diameter (D): 90 mm
- Total Width (Thickness T): 21.75 mm
- Inner Ring Width (B): 20 mm
- Outer Ring Width (C): 17 mm
- Basic Dynamic Radial Load Rating (\(C_{r}\)): 83,000 N (83.00 kN)
- Basic Static Radial Load Rating (\(C_{0r}\)): 99,000 N (99.00 kN)
⚙️ Design & Features
- High-Load Capacity Design (HR Prefix): Specially engineered under NSK’s High-Capacity designation, utilizing optimized roller geometry and dimensions to yield peak load thresholds and extended service running life.
- ISO Dimension Compatibility (J Suffix): Designed in complete accordance with ISO sub-unit dimensional standards, ensuring full international interchangeability for both the cup and cone components.
- Separable Construction Component: The tapered outer cup can be easily separated from the inner cone assembly (rollers and cage), providing simplified, clean physical installation, shaft adjustment, and maintenance routine access.
- Open System Setup: Constructed as an unshielded, completely open-face architecture to support high-efficiency continuous oil immersion baths or heavy mechanical grease lubrication.
📞 Contact & Procurement Details
To secure pricing, check stock availability, or coordinate bulk fulfillment across Saudi Arabia, contact the Ayub First Trading Company distribution offices directly:
- Primary Hotline (Call/WhatsApp): +966 56 004 2170
- Email Inquiries: ayubfirsttrading@gmail.com
- Corporate Web Platform: ayubfirsttrading.com
- Regional Warehouses: Showrooms fully stocked in Riyadh (Al Jabrah, Batha Road), Jeddah, Dammam, and Al Khobar (20th Street, Hail Road)
Description
Description
The product in the image is an Single-Row Metric Tapered Roller Bearing: AFTC-HR30210J , an essential replacement component for automotive differentials, wheel hubs, transmissions, industrial gearboxes, and heavy manufacturing equipment. It is engineered with high-capacity parameters and manufactured by NSK Ltd., Japan.
🔍 Technical Specifications
- Model Number: AFTC-HR30210J
- Manufacturer Part Number: NSK HR30210J
- Bearing Type: Single-Row Tapered Roller Bearing (Metric Series)
- Bore Diameter (Inner d): 50 mm
- Outer Diameter (D): 90 mm
- Total Width (Thickness T): 21.75 mm
- Inner Ring Width (B): 20 mm
- Outer Ring Width (C): 17 mm
- Basic Dynamic Radial Load Rating (\(C_{r}\)): 83,000 N (83.00 kN)
- Basic Static Radial Load Rating (\(C_{0r}\)): 99,000 N (99.00 kN)
⚙️ Design & Features
- High-Load Capacity Design (HR Prefix): Specially engineered under NSK’s High-Capacity designation, utilizing optimized roller geometry and dimensions to yield peak load thresholds and extended service running life.
- ISO Dimension Compatibility (J Suffix): Designed in complete accordance with ISO sub-unit dimensional standards, ensuring full international interchangeability for both the cup and cone components.
- Separable Construction Component: The tapered outer cup can be easily separated from the inner cone assembly (rollers and cage), providing simplified, clean physical installation, shaft adjustment, and maintenance routine access.
- Open System Setup: Constructed as an unshielded, completely open-face architecture to support high-efficiency continuous oil immersion baths or heavy mechanical grease lubrication.
📞 Contact & Procurement Details
To secure pricing, check stock availability, or coordinate bulk fulfillment across Saudi Arabia, contact the Ayub First Trading Company distribution offices directly:
- Primary Hotline (Call/WhatsApp): +966 56 004 2170
- Email Inquiries: ayubfirsttrading@gmail.com
- Corporate Web Platform: ayubfirsttrading.com
- Regional Warehouses: Showrooms fully stocked in Riyadh (Al Jabrah, Batha Road), Jeddah, Dammam, and Al Khobar (20th Street, Hail Road)
