Supco SM670 (110V). REF.MOTOR : AFTC-RMSU-017-1
Based on the updated image, here is the full list of details for the Supco SM670 (110V) Universal C-Frame Utility Fan Motor Kit.
Technical Specifications
- Model Number: SUPCO SM670 (Supplier Ref: AFTC-RMSU-017-1)
- Voltage: 110V – 120V AC (Standard for US/North American appliances)
- Frequency: 60 Hz
- Power Consumption: 20 Watts
- Current: Approx. 0.48 Amps
- Speed: 3000 RPM (High Speed)
- Rotation: Reversible (The motor can be flipped to rotate Clockwise or Counter-Clockwise)
- Shaft Size: 3/16″ Diameter
- Stack Size: 5/8″

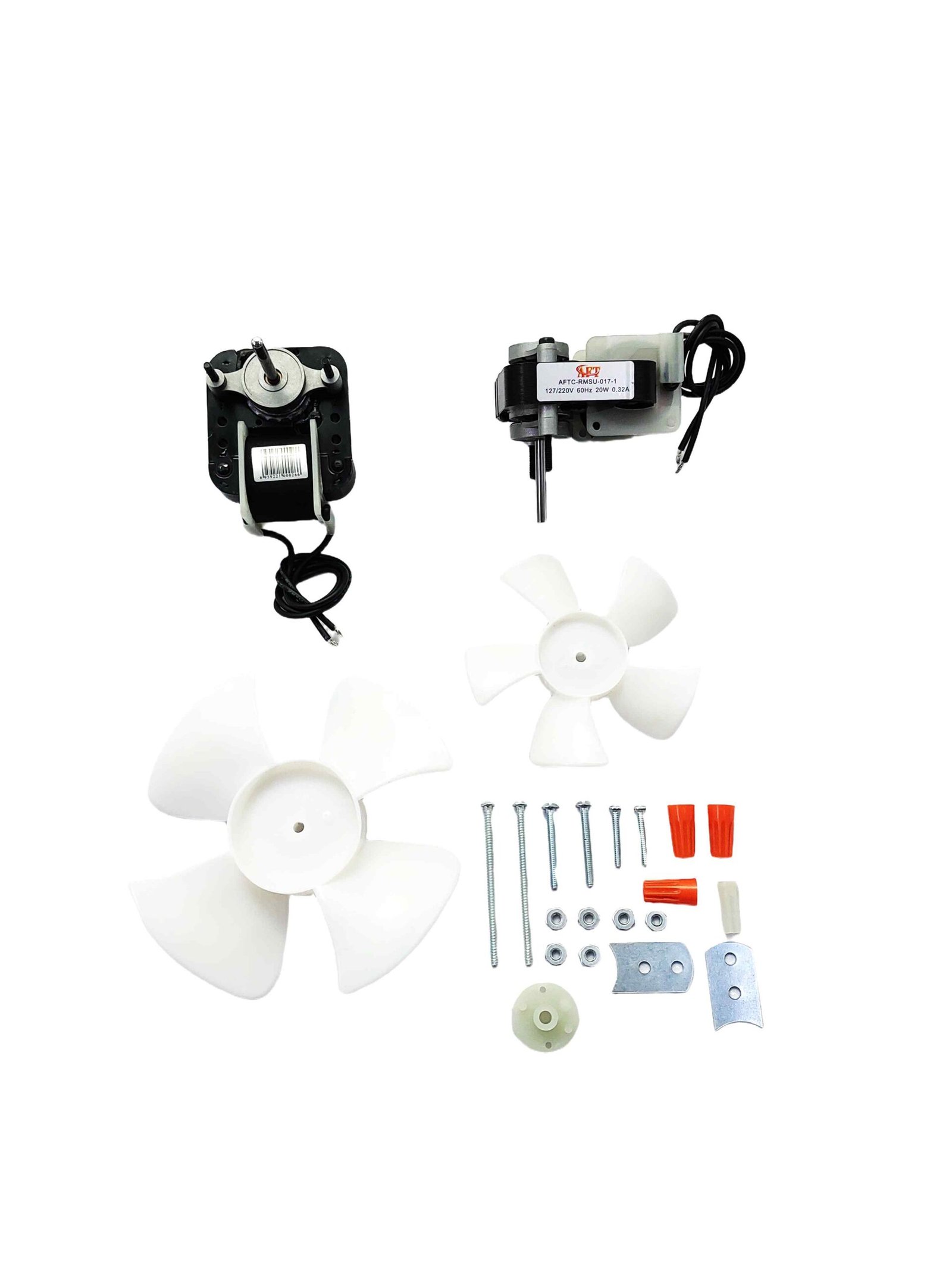

Complete Kit Details
This universal replacement kit is designed for “all-in-one” installation:
- Motors: Includes the C-frame shaded-pole motor assembly (shown from two angles).
- Fan Blades:
- 1 x 4″ (approx. 10cm) diameter blade.
- 1 x 5.5″ (approx. 14cm) diameter blade.
- Mounting Hardware:
- 1 x Multi-position mounting bracket for custom fits.
- A set of 5 long bolts, nuts, and washers.
- 2 x Plastic hub/shaft adapters.
- Electrical: 2 x Orange wire nuts for secure splicing.
Primary Applications
- Refrigeration: Evaporator fan motors for home refrigerators, commercial beverage coolers, and display cases.
- Ventilation: Bathroom exhaust fans, range hoods, and small attic vents.
- General Utility: Small equipment requiring compact cooling.
Description
Description
Based on the updated image, here is the full list of details for the Supco SM670 (110V) Universal C-Frame Utility Fan Motor Kit.
Technical Specifications
- Model Number: SUPCO SM670 (Supplier Ref: AFTC-RMSU-017-1)
- Voltage: 110V – 120V AC (Standard for US/North American appliances)
- Frequency: 60 Hz
- Power Consumption: 20 Watts
- Current: Approx. 0.48 Amps
- Speed: 3000 RPM (High Speed)
- Rotation: Reversible (The motor can be flipped to rotate Clockwise or Counter-Clockwise)
- Shaft Size: 3/16″ Diameter
- Stack Size: 5/8″
Complete Kit Details
This universal replacement kit is designed for “all-in-one” installation:
- Motors: Includes the C-frame shaded-pole motor assembly (shown from two angles).
- Fan Blades:
- 1 x 4″ (approx. 10cm) diameter blade.
- 1 x 5.5″ (approx. 14cm) diameter blade.
- Mounting Hardware:
- 1 x Multi-position mounting bracket for custom fits.
- A set of 5 long bolts, nuts, and washers.
- 2 x Plastic hub/shaft adapters.
- Electrical: 2 x Orange wire nuts for secure splicing.
Primary Applications
- Refrigeration: Evaporator fan motors for home refrigerators, commercial beverage coolers, and display cases.
- Ventilation: Bathroom exhaust fans, range hoods, and small attic vents.
- General Utility: Small equipment requiring compact cooling.
