Swaging Needle Tool Set : AFTC-SWN-100

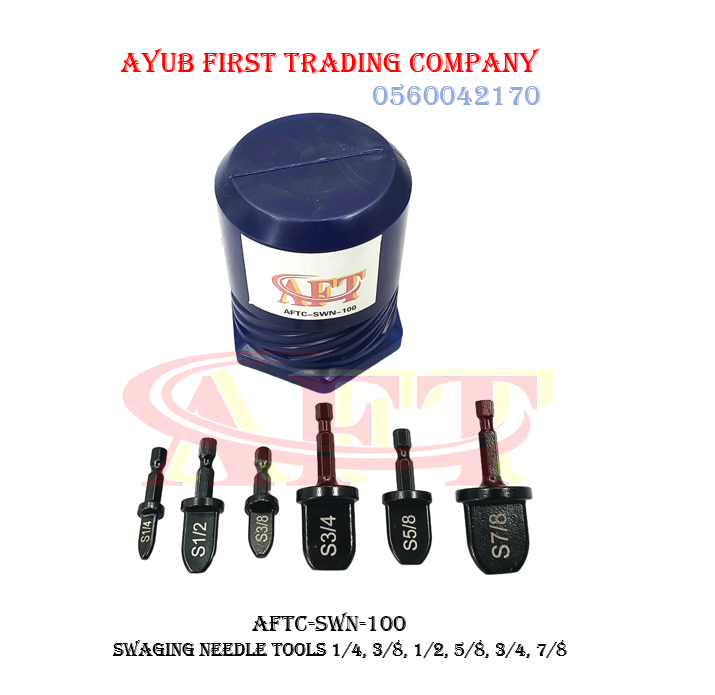

The item shown is the AFTC-SWN-100 Swaging Needle Tool Set, a professional HVAC/R drill-attachment kit designed to quickly flare and expand soft metal tubes using friction heat.
Technical Specifications
- Compatible Tube Sizes: The 6-piece bit set covers standard fractional pipe outer diameters (OD):
- 1/4″
- 3/8″
- 1/2″
- 5/8″
- 3/4″
- 7/8″
- Shank Type: Standard 1/4-inch hex shank, optimized for quick-change chucks on cordless drills or impact drivers.
- Material: Forged from high-grade alloy steel with a heat-resistant coating to withstand intense friction.
Core Operational Advantages
- Friction Heating: The bits use the rotational speed of your drill to generate intense localized friction heat. This naturally softens the copper, allowing it to stretch smoothly without splitting or cracking.
- Speed and Efficiency: Expands a pipe end in under 5 seconds, making it vastly faster than manual hand-swaging blocks or punches.
- Leak Reduction: Forms a perfect, uniform pocket that allows seamless pipe-to-pipe joining, eliminating half of the brazed joints needed compared to using separate copper couplings.
Step-by-Step Usage Guide
- Prep the Line: Cut your copper tube perfectly square. Use a deburring tool to clean out all internal burrs so the bit can slide in straight.
- Secure the Pipe: Hold the copper tubing firmly with a pair of locking pliers, a flaring block, or a vise. Never try to hold the pipe with your bare hand during operation, as it will spin or become extremely hot.
- Mount and Align: Insert the correct size swaging bit into your drill chuck. Set your drill to high speed (RPM) and place the tip of the needle straight against the tube mouth.
- Drive and Push: Pull the drill trigger completely to bring it up to full speed, then push the bit into the tube firmly and smoothly in one continuous motion.
- Withdraw: Keep the drill spinning at full speed as you pull the bit straight back out of the newly expanded pipe pocket.
