WV43YB,1/10 HP,R600a,Refrigeration Compressor : AFTC-RCP-011
Original price was: ر.س170.00.ر.س140.00Current price is: ر.س140.00.
QD75YB, 1/6 HP, R600a Refrigeration Compressor : AFTC-RCP-013
Original price was: ر.س190.00.ر.س160.00Current price is: ر.س160.00.
-17%
WV52YB, 1/8 HP, R600a Refrigeration Compressor : AFTC-RCP-012
Original price was: ر.س180.00.ر.س150.00Current price is: ر.س150.00.

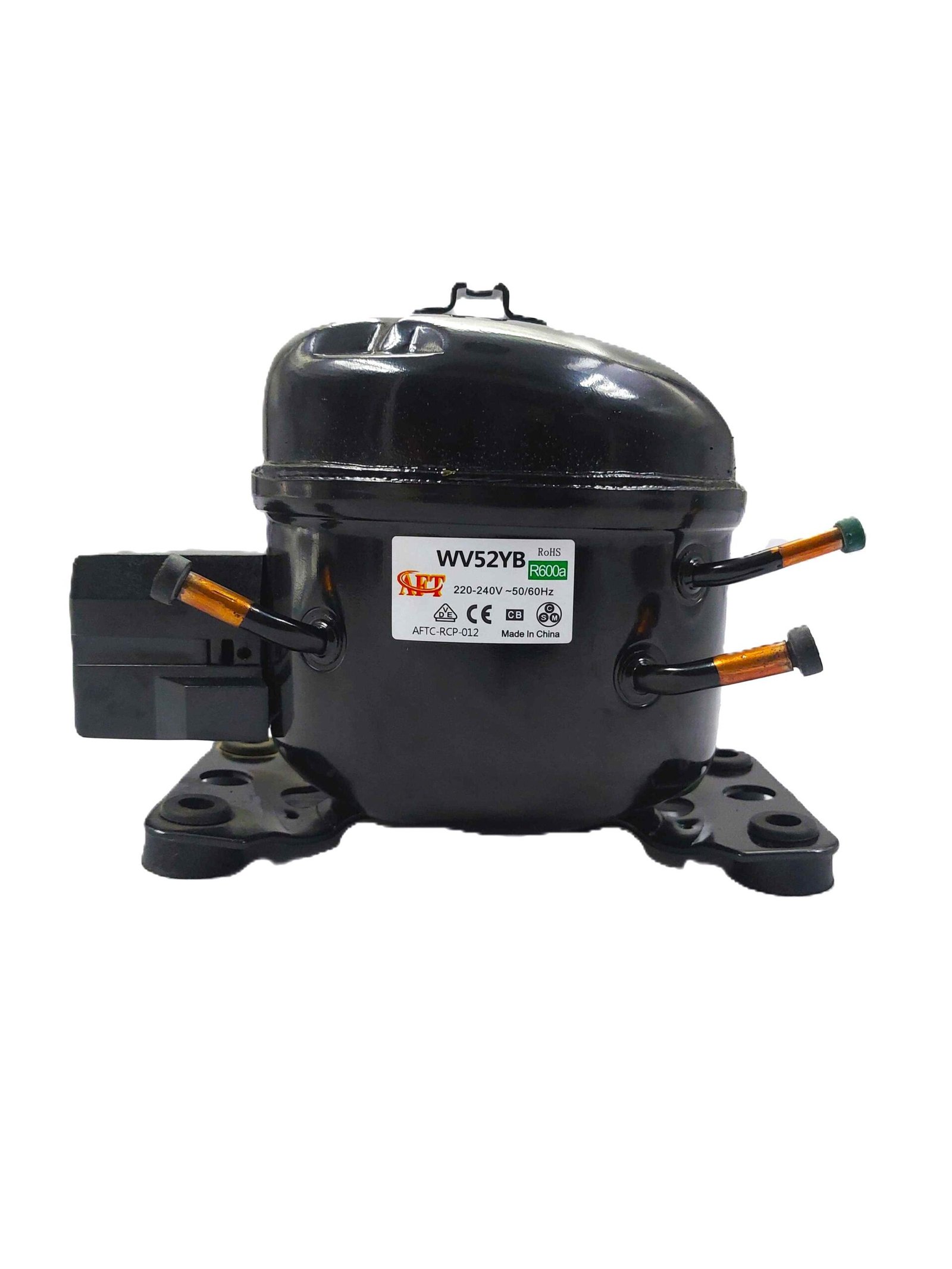

This image shows a hermetic reciprocating refrigeration compressor, specifically model WV52YB. Distributed by Ayub First Trading Company, this compact, energy-efficient cooling motor is widely used in medium-sized domestic single-door refrigerators, under-counter minibar fridges, household water dispensers, and small beverage chillers.
The full technical data sheet, operating specifications, and layout configurations for this exact unit include:
Core Electrical & Mechanical Specifications
-
- Model Number: WV52YB
- Product Reference Code: AFTC-RCP-012
- Motor Power Rating: 1/8 HP (Horsepower)
- Refrigerant Gas: R600a (Isobutane)
- Power Requirements: 220V–240V AC at 50/60 Hz dual frequency
- Cylinder Displacement: Approximately 5.2 cm³ (cc) per piston stroke
- Motor Design: RSIR (Resistance Start – Induction Run) configuration
Performance & Efficiency Features
-
- Application Range: Low Back Pressure (LBP) cooling cycles.
- Cooling Capacity: Typical output ranges from 85W to 95W depending on the specific line frequency (50Hz vs 60Hz).
- System Characteristics: Engineered for low structural vibration, ultra-quiet noise levels under 40 dB(A), dependable low-voltage start-up capability, and strong thermal performance under high ambient temperatures.
- Safety Certifications: Stamped with CE, VDE, and CCC compliance logos to verify electrical safety and manufacturing standards.
Tubing Setup & Physical Configuration
The unit relies on a standard copper 3-tube architecture to connect securely with your appliance’s closed-loop lines:
- Suction Line: Left copper connector pipe meant to draw low-pressure cool gas back from the inner cooling evaporators.
- Discharge Line: Upper right copper pipe engineered to drive hot, high-pressure compressed vapor forward into the external condenser wire grid.
- Process / Service Port: Lower right sealed tube branch reserved exclusively for HVAC technicians to hook up vacuum lines or execute precise recharges with pure R600a isobutane.📞 Contact & Procurement DetailsTo secure pricing, check stock availability, or coordinate bulk fulfillment across Saudi Arabia, contact the Ayub First Trading Company distribution offices directly:
- Primary Hotline (Call/WhatsApp): +966 56 004 2170
- Email Inquiries: ayubfirsttrading@gmail.com
- Corporate Web Platform: ayubfirsttrading.com
- Regional Warehouses: Showrooms fully stocked in Riyadh (Al Jabrah, Batha Road), Jeddah, Dammam, and Al Khobar (20th Street, Hail Road).
Description
Description
This image shows a hermetic reciprocating refrigeration compressor, specifically model WV52YB. Distributed by Ayub First Trading Company, this compact, energy-efficient cooling motor is widely used in medium-sized domestic single-door refrigerators, under-counter minibar fridges, household water dispensers, and small beverage chillers.
The full technical data sheet, operating specifications, and layout configurations for this exact unit include:
Core Electrical & Mechanical Specifications
-
- Model Number: WV52YB
- Product Reference Code: AFTC-RCP-012
- Motor Power Rating: 1/8 HP (Horsepower)
- Refrigerant Gas: R600a (Isobutane)
- Power Requirements: 220V–240V AC at 50/60 Hz dual frequency
- Cylinder Displacement: Approximately 5.2 cm³ (cc) per piston stroke
- Motor Design: RSIR (Resistance Start – Induction Run) configuration
Performance & Efficiency Features
-
- Application Range: Low Back Pressure (LBP) cooling cycles.
- Cooling Capacity: Typical output ranges from 85W to 95W depending on the specific line frequency (50Hz vs 60Hz).
- System Characteristics: Engineered for low structural vibration, ultra-quiet noise levels under 40 dB(A), dependable low-voltage start-up capability, and strong thermal performance under high ambient temperatures.
- Safety Certifications: Stamped with CE, VDE, and CCC compliance logos to verify electrical safety and manufacturing standards.
Tubing Setup & Physical Configuration
The unit relies on a standard copper 3-tube architecture to connect securely with your appliance’s closed-loop lines:
- Suction Line: Left copper connector pipe meant to draw low-pressure cool gas back from the inner cooling evaporators.
- Discharge Line: Upper right copper pipe engineered to drive hot, high-pressure compressed vapor forward into the external condenser wire grid.
- Process / Service Port: Lower right sealed tube branch reserved exclusively for HVAC technicians to hook up vacuum lines or execute precise recharges with pure R600a isobutane.📞 Contact & Procurement DetailsTo secure pricing, check stock availability, or coordinate bulk fulfillment across Saudi Arabia, contact the Ayub First Trading Company distribution offices directly:
- Primary Hotline (Call/WhatsApp): +966 56 004 2170
- Email Inquiries: ayubfirsttrading@gmail.com
- Corporate Web Platform: ayubfirsttrading.com
- Regional Warehouses: Showrooms fully stocked in Riyadh (Al Jabrah, Batha Road), Jeddah, Dammam, and Al Khobar (20th Street, Hail Road).
