ZWF-30-3 (30381070).2.5W. DC 12V. DC Refrigerator fan motor : AFTC-RM-003

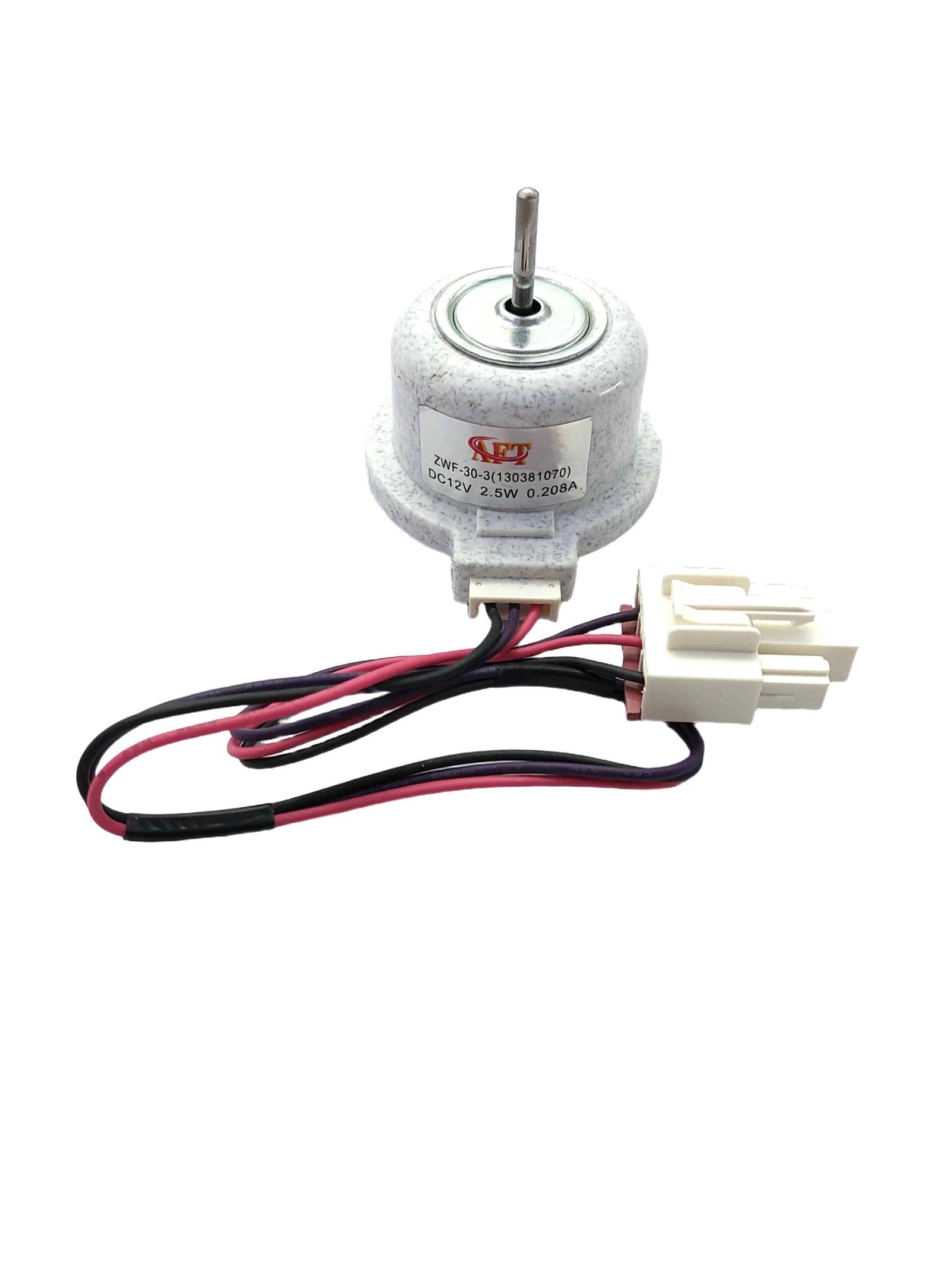

Here are the full technical and supplier details for the DC refrigerator fan motor shown in the image, organized for you in English:
Technical Specifications
- Part Number: AFTC-RM-03
- Model Number: ZWF-30-3 (30381070)
- Type: DC Evaporator Fan Motor.
- Voltage: DC 12V.
- Power Output: 2.5W.
- Current: 0.208A.
- Wiring: 3-wire configuration with a white plastic “20P” style connector.
- Design: Features a cylindrical motor body with a slim stainless steel shaft.
Usage & Compatibility
- Function: Used in frost-free refrigerators to circulate air through the compartments. The 3-wire design typically includes power, ground, and a feedback signal (tachometer) for speed monitoring.
- Compatibility: This is a very common motor for brands such as Samsung, Haier, Midea, and Daewoo. It is often used as an evaporator fan in both the freezer and refrigerator sections of modern units.
- Common Fix: Replace this motor if your refrigerator is cooling poorly, or if you hear a constant chirping or humming noise coming from the back of the freezer panel.
Supplier Details
- Company: Ayub First Trading Company
- Phone: 0560042170
- Locations: Riyadh, Jeddah, Dammam, and Khobar.
Description
Description
Here are the full technical and supplier details for the DC refrigerator fan motor shown in the image, organized for you in English:
Technical Specifications
- Part Number: AFTC-RM-03
- Model Number: ZWF-30-3 (30381070)
- Type: DC Evaporator Fan Motor.
- Voltage: DC 12V.
- Power Output: 2.5W.
- Current: 0.208A.
- Wiring: 3-wire configuration with a white plastic “20P” style connector.
- Design: Features a cylindrical motor body with a slim stainless steel shaft.
Usage & Compatibility
- Function: Used in frost-free refrigerators to circulate air through the compartments. The 3-wire design typically includes power, ground, and a feedback signal (tachometer) for speed monitoring.
- Compatibility: This is a very common motor for brands such as Samsung, Haier, Midea, and Daewoo. It is often used as an evaporator fan in both the freezer and refrigerator sections of modern units.
- Common Fix: Replace this motor if your refrigerator is cooling poorly, or if you hear a constant chirping or humming noise coming from the back of the freezer panel.
Supplier Details
- Company: Ayub First Trading Company
- Phone: 0560042170
- Locations: Riyadh, Jeddah, Dammam, and Khobar.
