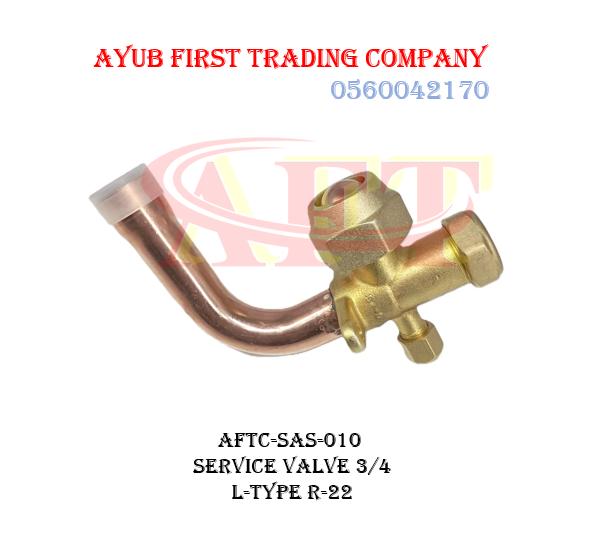

3/4 inch L-Type R-22 Service Valve : AFTC-SAS-010
This model represents a high-capacity split air conditioner service valve, offering the largest connection diameter in this angled layout series for heavy-volume suction gas flow.
📋 Technical Specifications
-
- Model Number:
AFTC-SAS-010 - Component Type: Split Air Conditioner Service Valve
- Size: 3/4 inch (Typically used on the low-pressure suction/gas line side of high-tonnage residential or commercial units, such as 4-ton to 5-ton systems).
- Design Profile: L-Type (Features a 90-degree curved copper pipe extension designed for side-access or corner-entry outdoor unit casings).
- Refrigerant Compatibility: Designated for R-22 systems.
- Model Number:
🔍 Structural Design & Ports
-
- Pre-Swaged Curved Copper Stub: The heavy 3/4″ bent copper tube on the left brazes straight into the interior condenser plumbing. A protective grey plastic cap keeps out moisture and dust prior to welding.
- Integrated Mounting Flange: Features a built-in brass mounting ear with an oval screw hole to anchor the valve securely flush against the outdoor unit’s metal chassis.
- Main Flare Port: The heavy brass threaded connection facing upward features a large, pre-fitted 3/4″ flare nut to lock down the external copper line-set.
- Service Access Port: The smaller threaded Schrader port facing downward allows technicians to attach manifold gauge hoses to vacuum, purge, or charge the system.
- Valve Isolation Stem: The heavy hexagonal brass cap on the far right seals off the internal Allen wrench port used to capture or release the refrigerant charge inside the condenser.
📞 Contact & Procurement Details
To secure pricing, check stock availability, or coordinate bulk fulfillment across Saudi Arabia, contact the Ayub First Trading Company distribution offices directly:
- Primary Hotline (Call/WhatsApp): +966 56 004 2170
- Email Inquiries: ayubfirsttrading@gmail.com
- Corporate Web Platform: ayubfirsttrading.com
- Regional Warehouses: Showrooms fully stocked in Riyadh (Al Jabrah, Batha Road), Jeddah, Dammam, and Al Khobar (20th Street, Hail Road).
Description
Description
This model represents a high-capacity split air conditioner service valve, offering the largest connection diameter in this angled layout series for heavy-volume suction gas flow.
📋 Technical Specifications
-
- Model Number:
AFTC-SAS-010 - Component Type: Split Air Conditioner Service Valve
- Size: 3/4 inch (Typically used on the low-pressure suction/gas line side of high-tonnage residential or commercial units, such as 4-ton to 5-ton systems).
- Design Profile: L-Type (Features a 90-degree curved copper pipe extension designed for side-access or corner-entry outdoor unit casings).
- Refrigerant Compatibility: Designated for R-22 systems.
- Model Number:
🔍 Structural Design & Ports
-
- Pre-Swaged Curved Copper Stub: The heavy 3/4″ bent copper tube on the left brazes straight into the interior condenser plumbing. A protective grey plastic cap keeps out moisture and dust prior to welding.
- Integrated Mounting Flange: Features a built-in brass mounting ear with an oval screw hole to anchor the valve securely flush against the outdoor unit’s metal chassis.
- Main Flare Port: The heavy brass threaded connection facing upward features a large, pre-fitted 3/4″ flare nut to lock down the external copper line-set.
- Service Access Port: The smaller threaded Schrader port facing downward allows technicians to attach manifold gauge hoses to vacuum, purge, or charge the system.
- Valve Isolation Stem: The heavy hexagonal brass cap on the far right seals off the internal Allen wrench port used to capture or release the refrigerant charge inside the condenser.
📞 Contact & Procurement Details
To secure pricing, check stock availability, or coordinate bulk fulfillment across Saudi Arabia, contact the Ayub First Trading Company distribution offices directly:
- Primary Hotline (Call/WhatsApp): +966 56 004 2170
- Email Inquiries: ayubfirsttrading@gmail.com
- Corporate Web Platform: ayubfirsttrading.com
- Regional Warehouses: Showrooms fully stocked in Riyadh (Al Jabrah, Batha Road), Jeddah, Dammam, and Al Khobar (20th Street, Hail Road).
