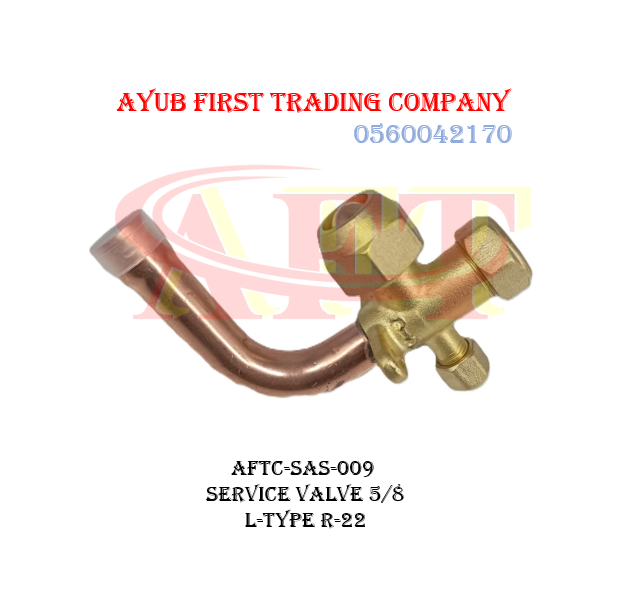

5/8 inch L-Type R-22 Service Valve : AFTC-SAS-009
This model increases the port and connection diameter of the angled layout, making it suitable for large residential and commercial split systems that require high volume suction gas flow within a compact or side-entry condenser chassis.
📋 Technical Specifications
- Model Number:
AFTC-SAS-009 - Component Type: Split Air Conditioner Service Valve
- Size: 5/8 inch (Commonly used on the low-pressure suction/gas line side for higher tonnage units, such as 2.5-ton to 4-ton air conditioners).
- Design Profile: L-Type (Features a 90-degree curved copper pipe extension designed for side-access or corner-entry outdoor unit casings).
- Refrigerant Compatibility: Designated for R-22 systems.
🔍 Structural Design & Ports
- Heavy Curved Copper Stub: The 5/8″ bent copper tube on the left brazes straight into the interior condenser coils. A translucent protective cap keeps out moisture and dust prior to welding.
- Integrated Mounting Flange: Features a built-in brass mounting ear with an oval screw hole to anchor the valve securely flush against the outdoor unit’s metal chassis.
- Main Flare Port: The heavy brass threaded connection facing upward features a large, pre-fitted 5/8″ flare nut to lock down the external copper line-set.
- Service Access Port: The smaller threaded Schrader port facing downward allows technicians to attach manifold gauge hoses to vacuum, purge, or charge the system.
- Valve Isolation Stem: The heavy hexagonal brass cap on the far right seals off the internal Allen wrench port used to capture or release the refrigerant charge inside the condenser.
📞 Contact & Procurement Details
To secure pricing, check stock availability, or coordinate bulk fulfillment across Saudi Arabia, contact the Ayub First Trading Company distribution offices directly:
- Primary Hotline (Call/WhatsApp): +966 56 004 2170
- Email Inquiries: ayubfirsttrading@gmail.com
- Corporate Web Platform: ayubfirsttrading.com
- Regional Warehouses: Showrooms fully stocked in Riyadh (Al Jabrah, Batha Road), Jeddah, Dammam, and Al Khobar (20th Street, Hail Road).
