3-wire. Big Fitting. general washing machine wash timer : AFTC-WMT-003

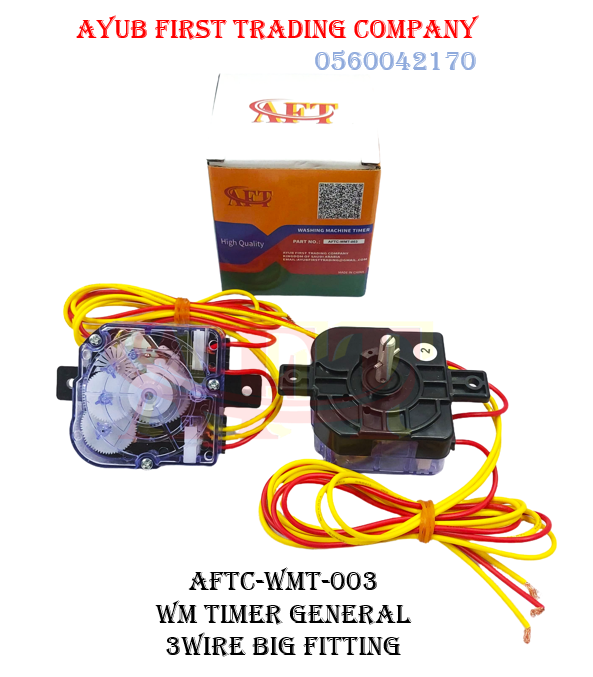

This image shows a 3-wire general washing machine wash timer (Part Number: AFTC-WMT-003) with a “big fitting” design, typically used in larger semi-automatic washing machines.

⚙️ Technical Specifications

Model: AFTC-WMT-003 (General Wash Timer).
Body Type: “Big Fitting” body, which has wider mounting ears compared to standard small timers.
Wire Count: 3 Wires (typically colored Red and Yellow as shown).
Control: Single metal shaft for the timer knob.
Mechanism: Transparent front housing allows you to inspect the internal gears for wear or damage.

🔌 Typical Wiring Logic

In a 3-wire setup for a twin-tub washer, the wiring generally operates as follows:

Common (Input): One wire connects to the live power source.
Direction 1 (Output): One wire connects to the motor’s first winding (e.g., clockwise).
Direction 2 (Output): The final wire connects to the second winding (e.g., counter-clockwise).
The timer mechanically alternates power between the two output wires to create the back-and-forth washing motion.
